All-In-One Containerized Plate Ice Plant & Auto Storing & Delivery System with 30t - 100t For concrete cooling

Product Description

Product Introduction

Icesta plate ice is an irregular plate-shaped ice . It is a transparent crystal and is not easy to melt. The surface is small,
dry, powder-free, and has a long cooling time. The size of the sheet is about 40×40mm to 80×80mm, which can be adjusted according to the needs of customers. The thickness is about 8-10mm, and the thickness of the slab ice can be adjusted through the ice making time. The ice cubes are thick, have a long storage period, are not easy to melt, have good air permeability, and have a constant refrigeration temperature. The small slab ice is easy to use in any situation. With a secondary ice crusher, the size can be adjusted freely. Plate ice evaporator is mainly divided into two types: aluminum alloy plate ice evaporator and stainless steel plate ice evaporator. The plate ice evaporator uses a direct expansion system, using R-22, R507A, R404A or ammonia (R717) as the refrigerant.

ICESTA CONTAINERIZED PLATE ICE PLANT & AUTOICE STORAGE & DELIVERY & DOSING SYSTEM

Containerized Plate Ice Machine1. CE Certification.
SS304 plate evaporator, SS304 frame, ice sanitary and edible.
Automatic producing process by PLC control, lower the cost on manpower.
Thickness of ice is adjustable, from 8mm to 10mm. 8mm is the one our customer like more.
High efficiency and energy saving, only consumes about 60KW.H/ton ice.
Mainly used in marine products preservation.
Long service life.
One year warranty, and lifetime service available.



详情页_09

ICESTA Auto lce Storage Room

I. Mobile type, starting from 20 metric tons up to 100 metric tons. 2. Robust steel used for the ice rake assembly and lce Rake Hoist System
 3. Reliable Sensors and Limit Switches to control the movement of AutoIce Storage Room Automatically 4. Efficient Air cooler to keep the room temp down to -10 degrees
 5.100- 150 mm thickness Panels keep the cold inside the room

ICESTA lce Discharge Auger and Delivery Auger

1. Robust design suitable for severe working conditions 2. Single and Dual Screw Design, with a designed delivery rate of 25-40T per Hour 3. Renowned Gearbox with Motor ensures the high quality of ICESTA Brand. 4. Single or Dual lce outlet for one or two ice outlet, which can deliver ice at same time to twin batch plants. 5.Stainless material or Galvanized Steel optional

ICESTA lce Discharge Augerand Delivery Auger

 1.Robust design suitable for severe working conditions 2. Ice Hopper volume up to 500KG 3. Renowned Gearbox with Motor ensures the high quality of ICESTA Brand. 4. Accurate lce Scale svstem5.Stainless material or Galvanized Steel optional

FEATURES OF ICESTA ICE/COLD WATER PLANT

FEATURES OF ICESTA ICE/COLD WATER PLANT

Environmental friendly refrigerants - R404A and R407C. 2. Multi-stage cooling from +45℃ down to less than 1℃ by 2 semihermetic screw/reciprocating compressors with economizer performance.
Plate heater exchanger as evaporators (corrosion-free) for high-efficiency heat transfer.
Stainless Ice tank (corrosion-free) for the ice bank system.
Evaporative condensers (corrosion-fee) for High efficiency heat rejection.
With our special designed multi-stage cooling system for fresh water cooling of concrete batching plants extraordinary high COP’ s can be achieved;

First Cooling Stage (for CWP and IWP Chillers)

 Even under the most severe climatic conditions it is possible to cool water from practically any temperature down to 35℃ within a cooling fan without the involvement of a refrigeration system which reduces the actual cooling capacity of the compressors by 20 %. Thus this refrigeration capacity of the first stage is free of charge.

Second Cooling Stage (for CWP and IWP Chillers)

 Furthermore, it is much more efficient (by 25 %) to produce refrigeration capacity at an evaporation temmperature of +7℃ than at 0 C. Therefore the water is cooled from 35℃ down to 2℃ in the plate heat exchanger of the second stage by the first compressor.

Third Cooling Stage (for lWP Chillers Only)

 Finally in the Third stage the water is cooled from 2℃ down to less than 0.5°C in our special “ice bank system” by the second compressor. This system consists of a stainless steel water tank in which film heat exchanger is installed. Around these heat exchanger ice can be accumulated without destroying the system. The water is circulated around these heat exchanger covered slightly with ice.In that way the water temperature is between 0℃ and 1℃

Technical Parameters

*Power supply: 380V/3P/50HZ,220V/3P/60HZ,380V/3P/60HZ,460V/3P/60HZ

*Ambient temperature 35°C

* Water supply Temp 20°C( quality)
*Extreme working condition environment: 5°C~40°C, water supply 5°C~30°C

*Refrigerant: R22,R404A, R507A

Model	IP30T-R4E	IP40T-R4E	IP50T-R4E	IP60T-R4E	IP70T-R4E	IP80T-R4E
lce production	30t/24hrs	40t/24hrs	50t/24hrs	60t/24hrs	70t/24hrs	80t/24hrs
lce temp	-5°C	-5°C	-5°C	-5°C	-5°C	-5°C
Cooling capacity	277KW	355KW	397KW	502KW	628KW	710KW
Compressor power	108KW	149KW	164KW	206KW	266KW	298KW
Input power	123KW	168KW	188KW	231KW	300KW	334KW
Evaporator qty	24	24	30	30	30	32
Evaporator size	2200*1000mm	2440*1050mm	2440*1050mm	3000*1050mm	3350*1050mm	3500*1100mm
Cooling type	Evaporative cooling
lce storage capacity	90t
lce storage system power	33KW
Amount of ice delivered	15t/h
Container size	1240025002900mm

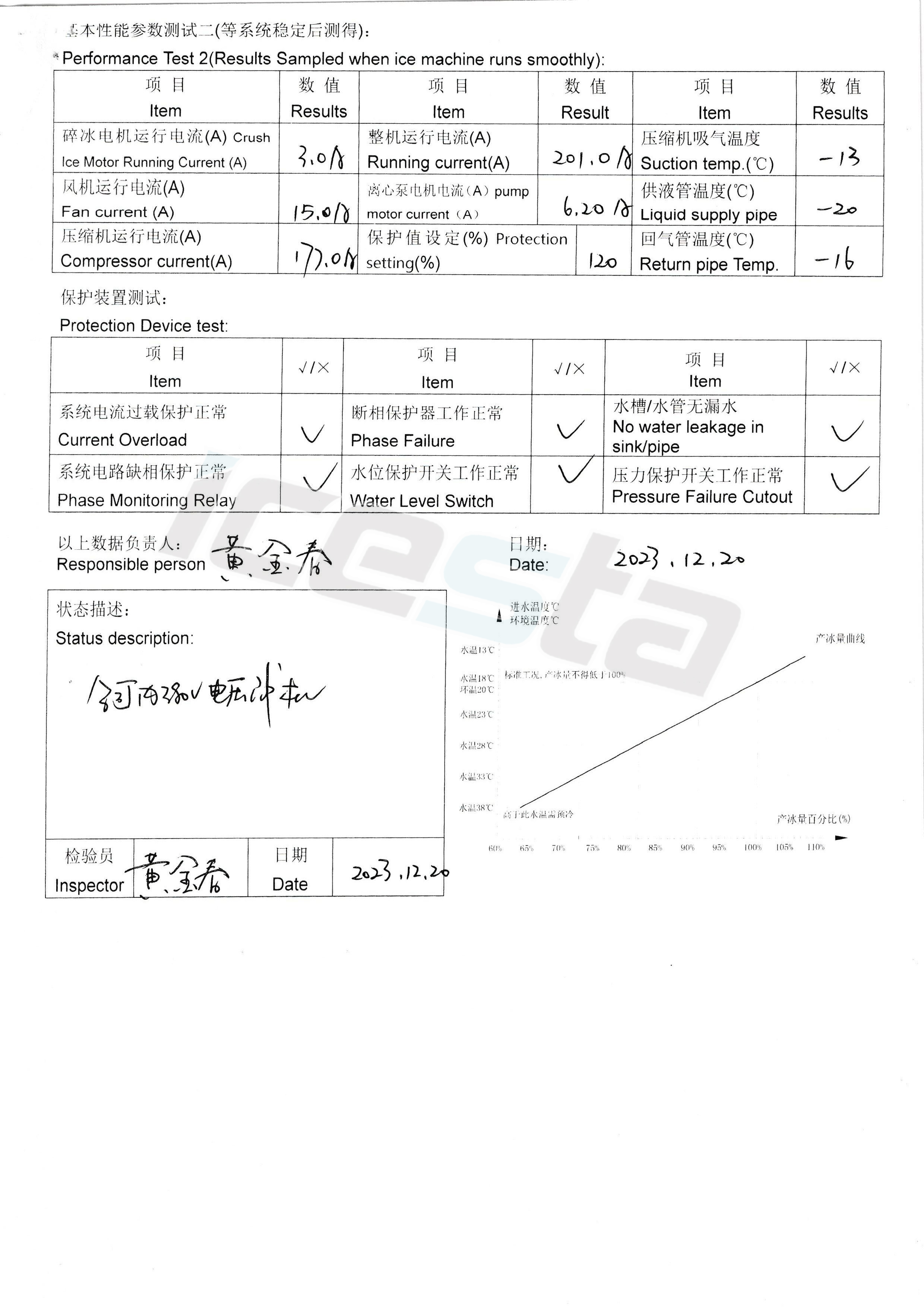

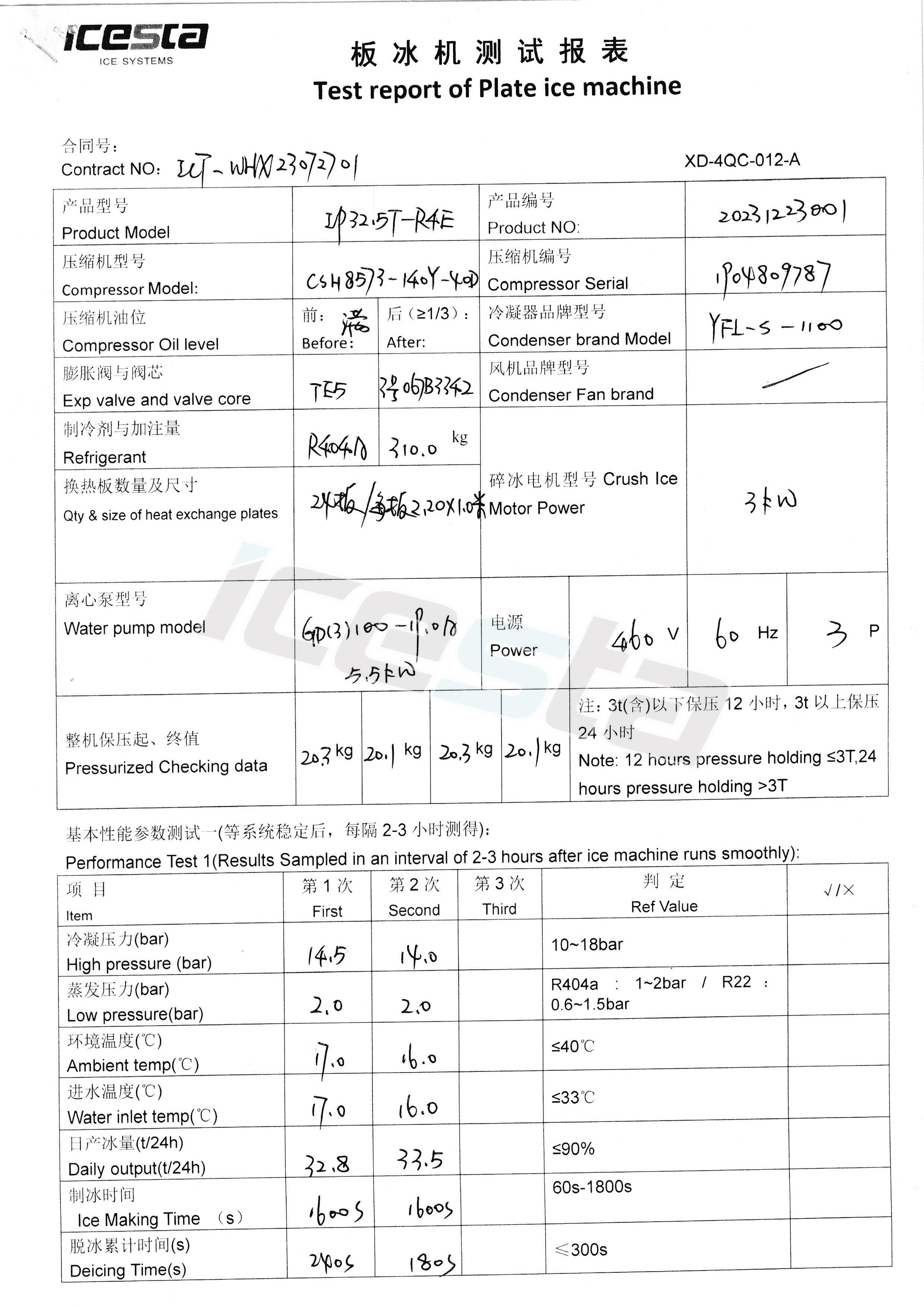

Test report of Plate ice machine

Name1

Name2

Application Industry

More and more Coling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.

AUXILIARY EQUIPMENT

Fully automatic system "storage" and "ice delivery" integration project

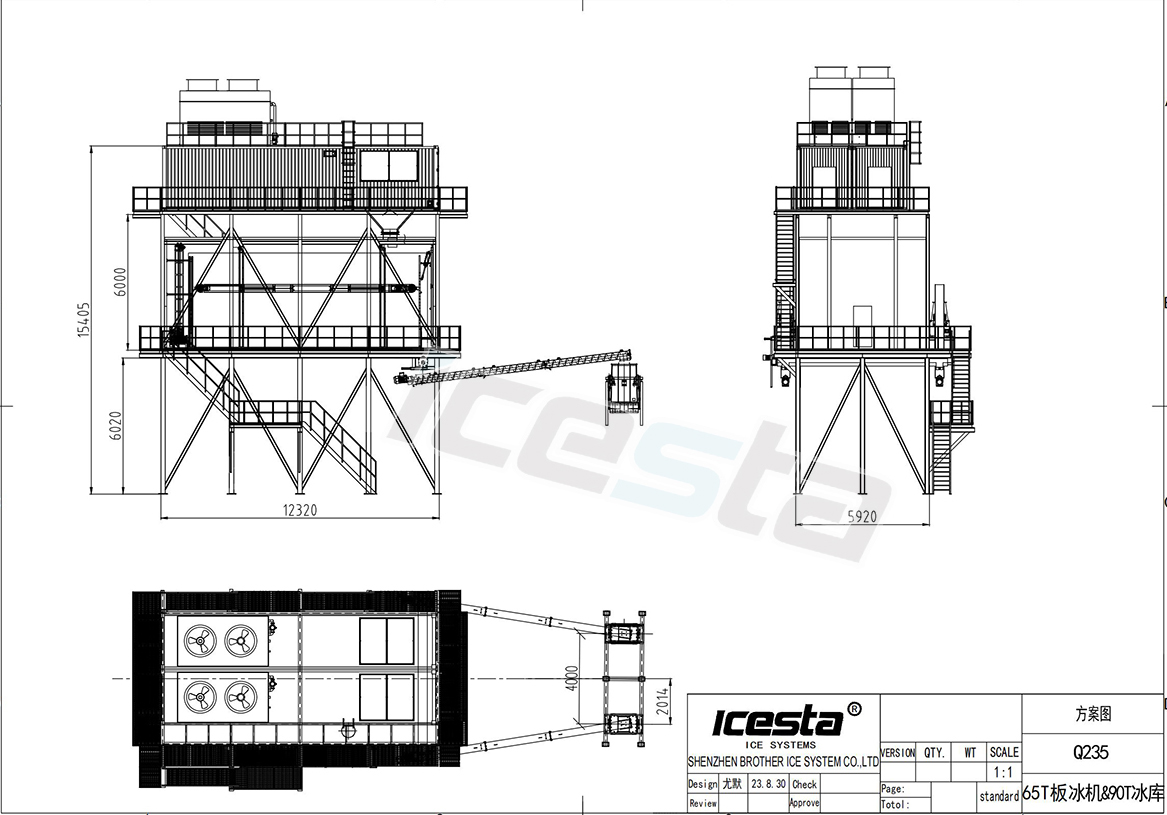

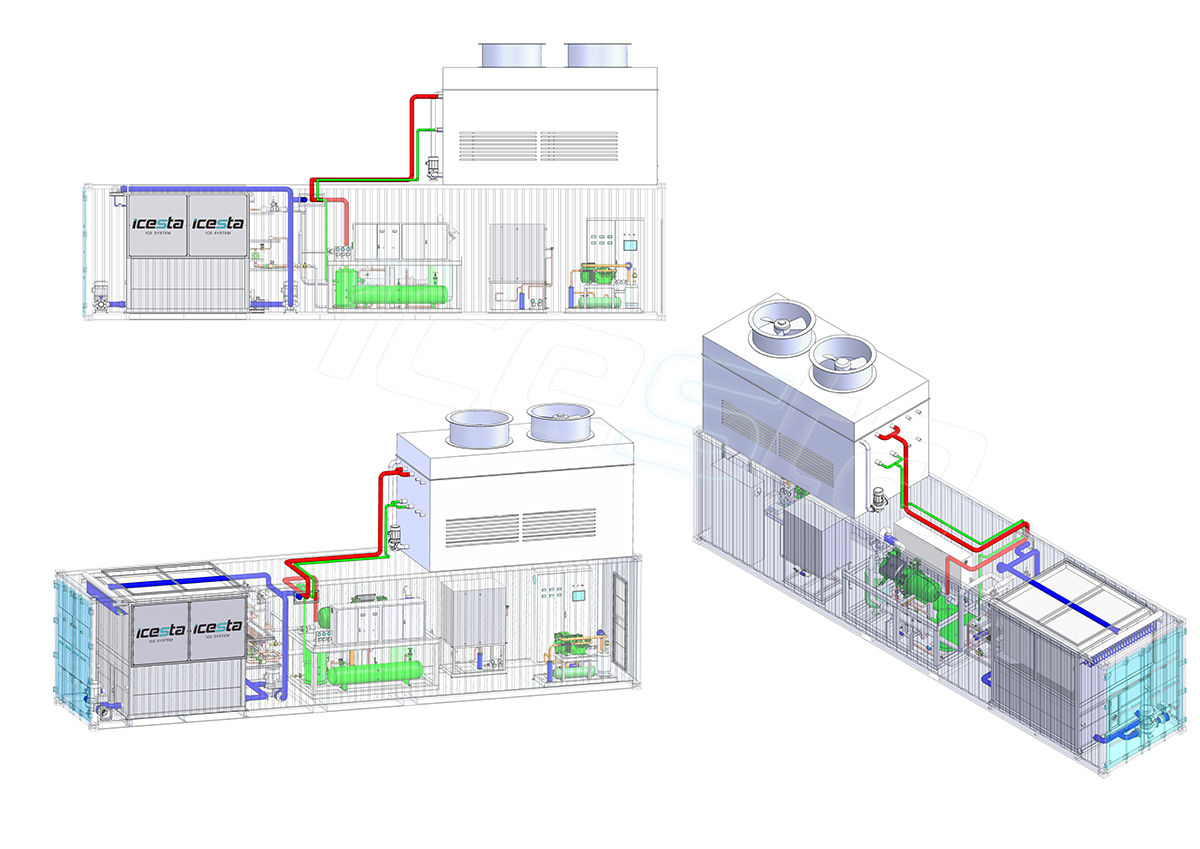

Drawing Display

The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production, over 20 technicians provide life time service.

32.5t集装箱式板冰机图纸加水印

32.5t集装箱式板冰机图纸2加水印

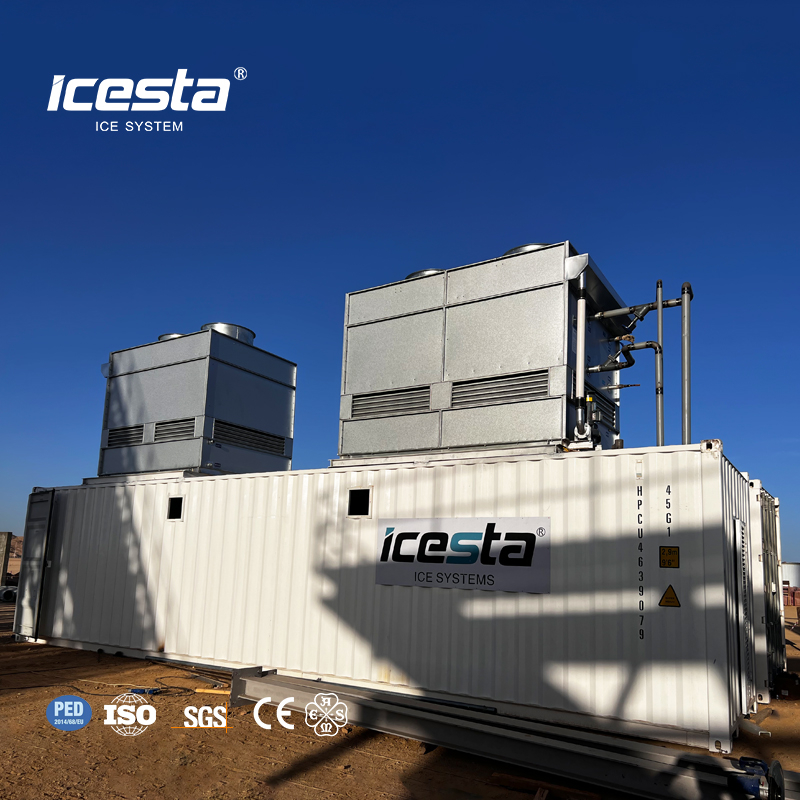

ENGINEERING CASE

30T flake Ice Plant & 50T Auto Storage,

Humpty Doo Baramundi Australia

Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions

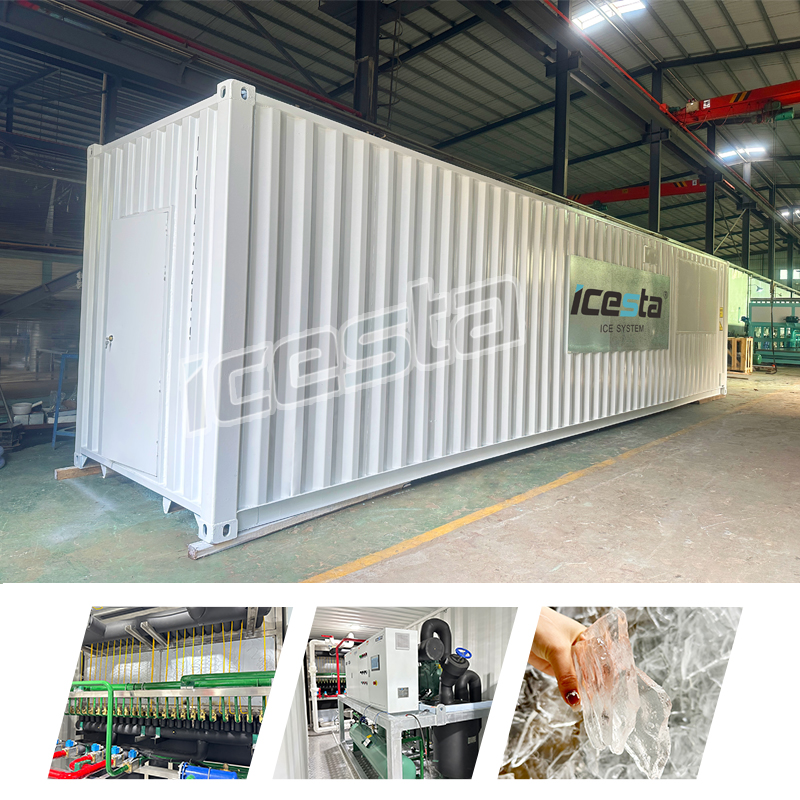

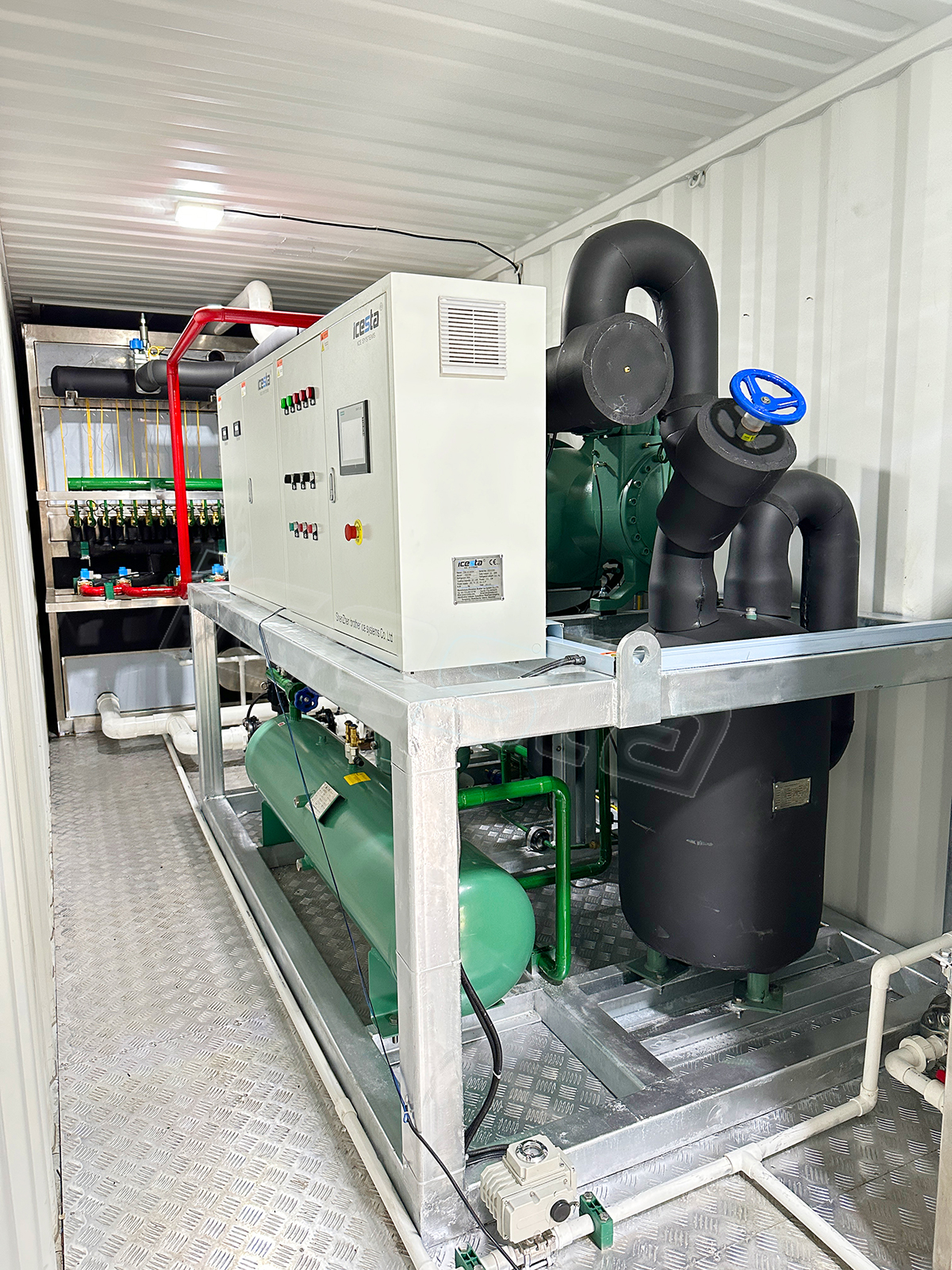

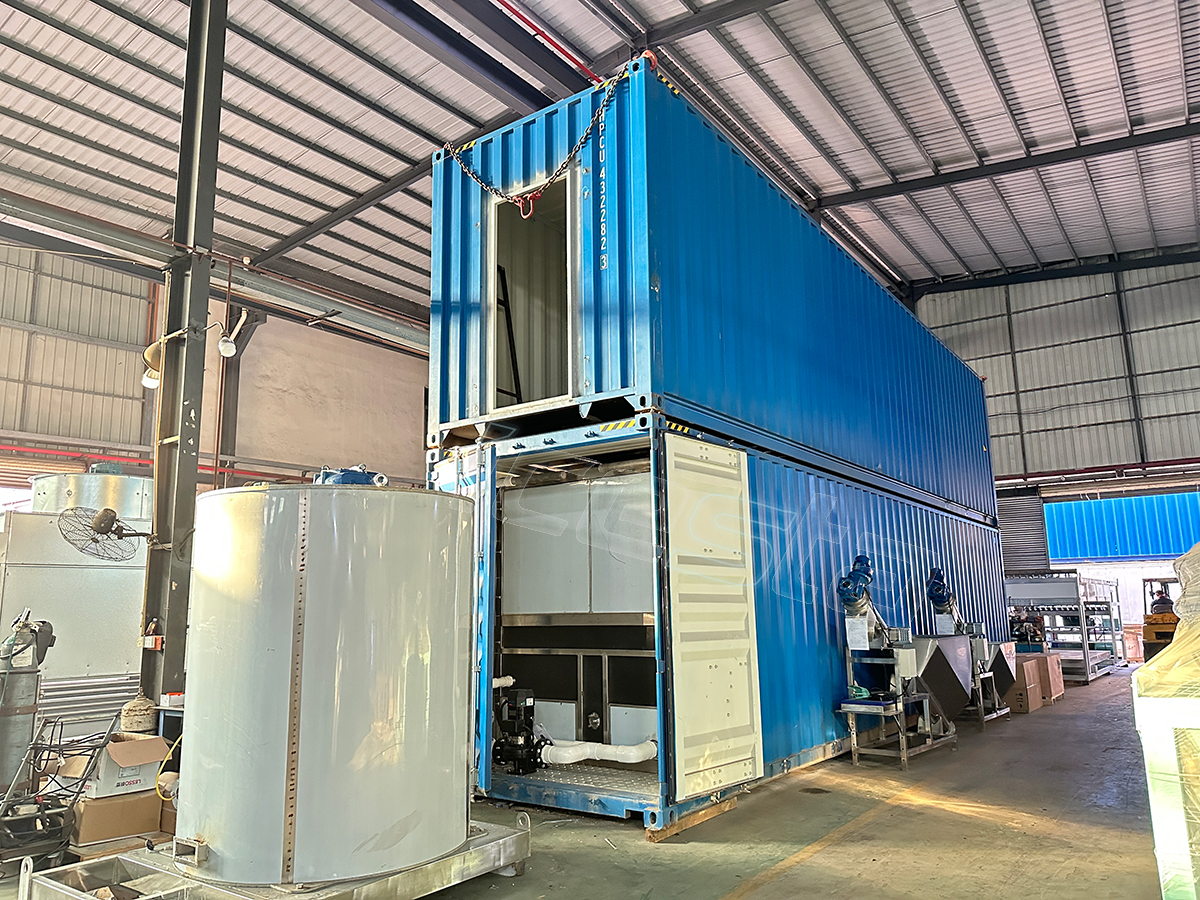

PICTURE DISPLAY

Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful

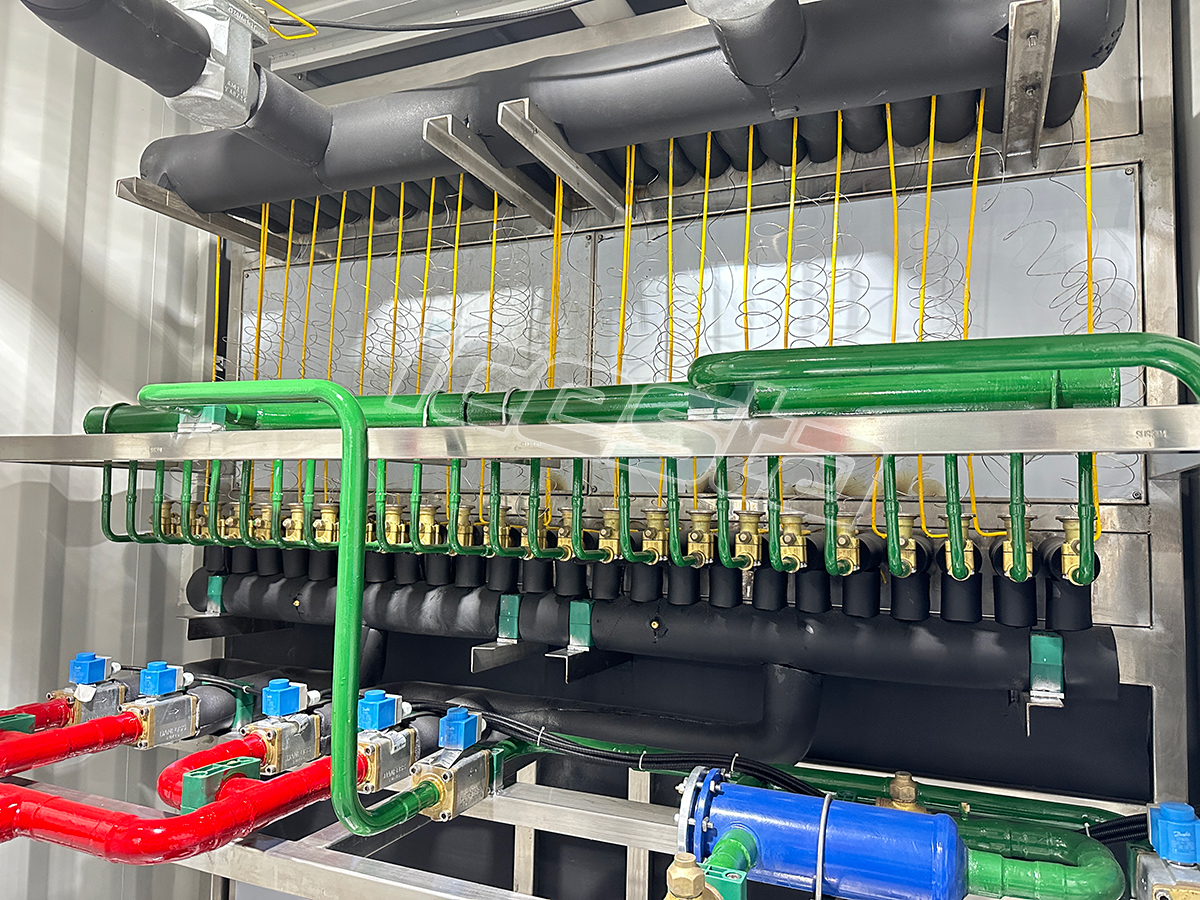

32.5t集装箱式板冰机细节图2加水印

Why choose us

ICESTA
20 years dedication in ice making technology to create excellence.

Shenzhen Brother Ice System Co., Ltd. ( ICESTA Brand), a well-known ice machine manufacturer and industry leader and pioneer in China.The product covers flake ice /Block ice machine, Tube ice /slurry ice/plate ice/cube ice machines, water
chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc

Experiences & History:
20-Years Team focus on innovative solution in Ice & Cooling technology.
17-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.

Industry status& Reputation:
* TOP 3 of China industrial ice machine Brand with strong capability of R&D
* 20000㎡ Factory
* ISO 9001 , CE, PED, ASME (U.S ) Certificates etc

Technology & Management capability:
* 80+ patents Certificates
* High Technology enterprise Certificate

Services & Global Net:
* Export to 80+ countries
* Local service in 50+ countries with networks all over the world.
* 1-2 years warranty covers each component.

好评4

管冰机详情页_15

FAQ

FAQ (Frequently Asked Questions)

1. Questions before quotation
A. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What’s the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?

2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars
100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.

3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance

4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed
description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
