Good Qualilty Commercial Flake Ice Machine 2.5-5t

Availability:
Quantity:
  • Ice Making System
Product Description

Good Qualilty Commercial Flake Ice Machine 2.5-5t

EXQUISITE CRAFTSMANSHIP MAKES TOP-NOTCH ICE MACHINE,

High reliability ,Customized,100% Ice Production,15+ Years Lifespan,Exported to 80+ Countries.


· TECHNICAL PARAMETERS

*The technical data based on 25°C ambient temp.20°C water inlet temp

* Power supply:3P/380V/50HZ,3P/220V/60HZ,3P/380V/60HZ,3P/460V/60HZ Optional

* The ice thickness:1.6-2.3mm

* Refrigerant: R404A(R22 R17 R507 is optional)


Model IF3T-R4A IF5T-R4A
Ice production 3t/24hrs 5t/24hrs
Cooling capacity 22.4kw 35kw

Evaporation

temperature

-20°C -20°C

Condensing

temperature

40°C 38°C
Input total power 14.62kw 21.14kw
Compressor power 11.5kw 17.7kw
Pump power 0.12kw 2.2kw

(Cooling tower water pump input power)

Reducer power 0.37kw 0.75kw

(Cooling tower fan

input power)

Unit size 1700*1200*1260mm 2030*1560*1470mm
weight KG 880KG


· SHOW DETAILS

All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.

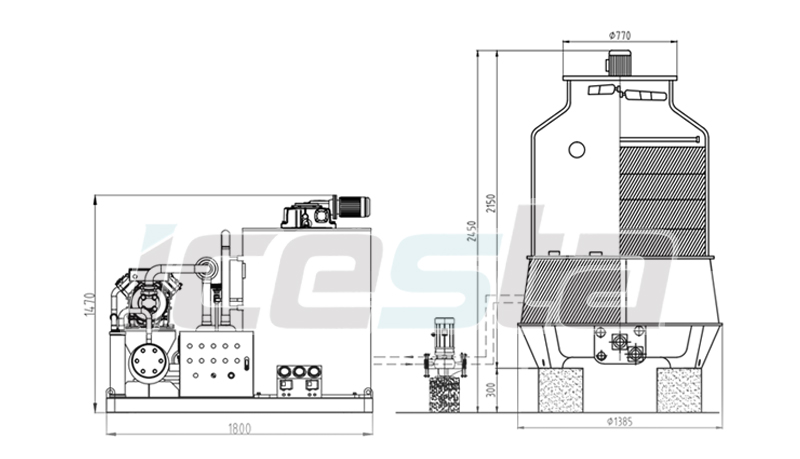

· DRAWING DISPLAY

The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.


5T flake ice machine

3D drawings


· ADVANTAGE

Advantages of ICESTA flake ice machine

The ICESTA series of flake ice machines are the first dynamic process intelligent control system (touch screen) in the industry in our country, which can remotely control the system touch screen, so that the running status of the ice machine can be displayed through touch, and it can quickly search for problem solutions to make the ice machine human Make a more perfect breakthrough.


ICE FLAKER Generator (evaporator)

· Prominent Heat treatment to avoid any SRINKAGE

· TOP welding testing technics with X-RAY——Never leak


Intellectualized PLC controller with touch-screen

· All failure record & instant solution available

· Stop-time setting at will.

· different languages version


Elaborate details design gives all-sided convenience

· Remote small touch-screen control

· Sufficient ice output




· APPLICATION INDUSTRY

More and more Coling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.


· AUXILIARY EQUIPMENT

Optimal industrial application: lce packing

Components:

1.Buffer Storage Bin (ranging from 500KG to 2000KG)

2.Built-in delivery screw

3.Dual control system (Manual and foot pedal)

Foot pedal can start and stop at will, which is nearly a semi automatic packing machine.


ENGINEERING CASE




Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions


· PICTURE DISPLAY

Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful
