ICESTA Containerized Flake ice plant with Automatic ice storage & Delivery & Weighing System (All-In-One)

Product Description

Containerized Flake ice plant with Automatic ice storage

& Delivery & Weighing System (All-In-One)

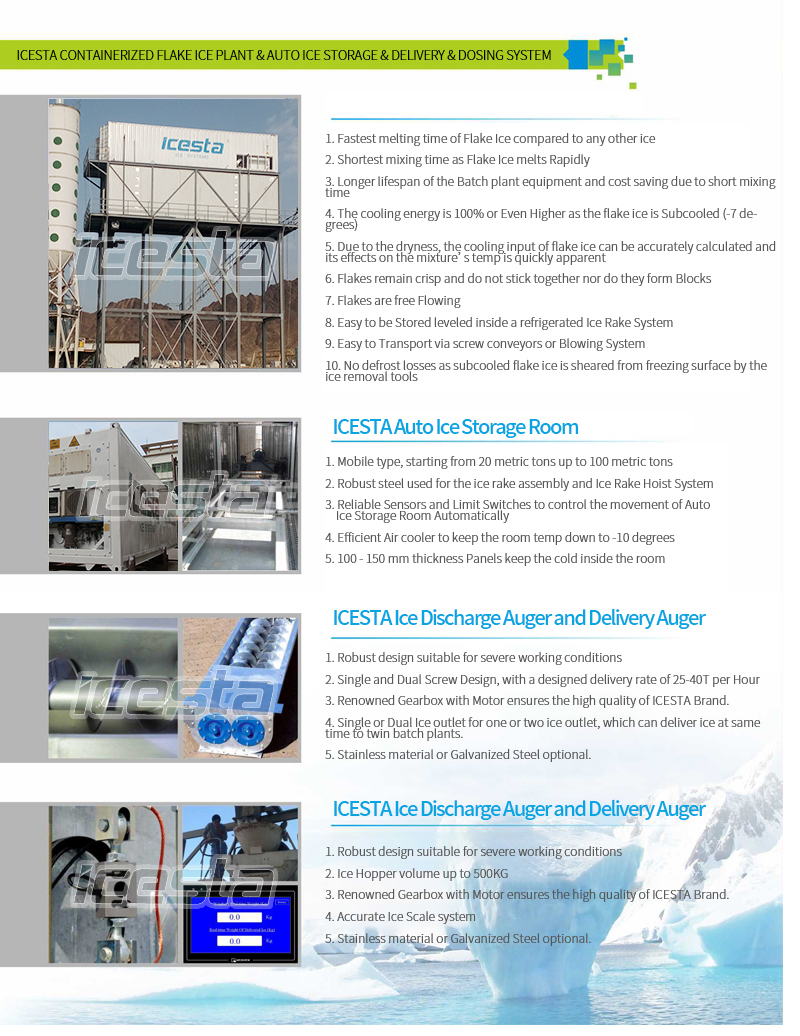

ICESTA CONTAINERIZED FLAKE ICE PLANT & AUTOICE STORAGE & DELIVERY & DOSING SYSTEM

 1.Fastest melting time of Flake Ice compared to any other ice.

2.Shortest mixing time as Flake lce melts Rapidly.
3.Longer lifespan of the Batch plant equipment and cost saving due to short mixing time.
4.The cooling energy is 100%e or Even Higher as the flake ice is Subcooled (-7 degrees).
5.Due to the dryness, the cooling input of flake ice can be accurately calculated and its effects on the mixture’s temp is quickly apparent.
6.Flakes remain crisp and do not stick together nor do they form Blocks.
7.Flakes are free Flowing.
8. Easy to be Stored leveled inside a refrigerated Ice Rake System.

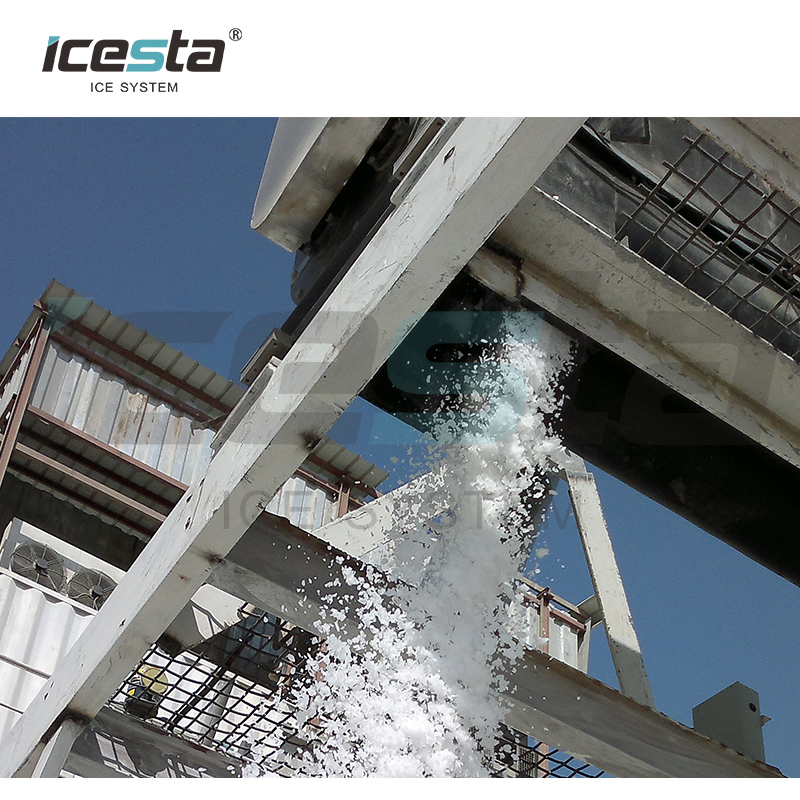

9.Easy to Transport via screw conveyors or Blowing System.
10.No defrost losses as subcooled flake ice is sheared from freezing surface by the ice removal tools.

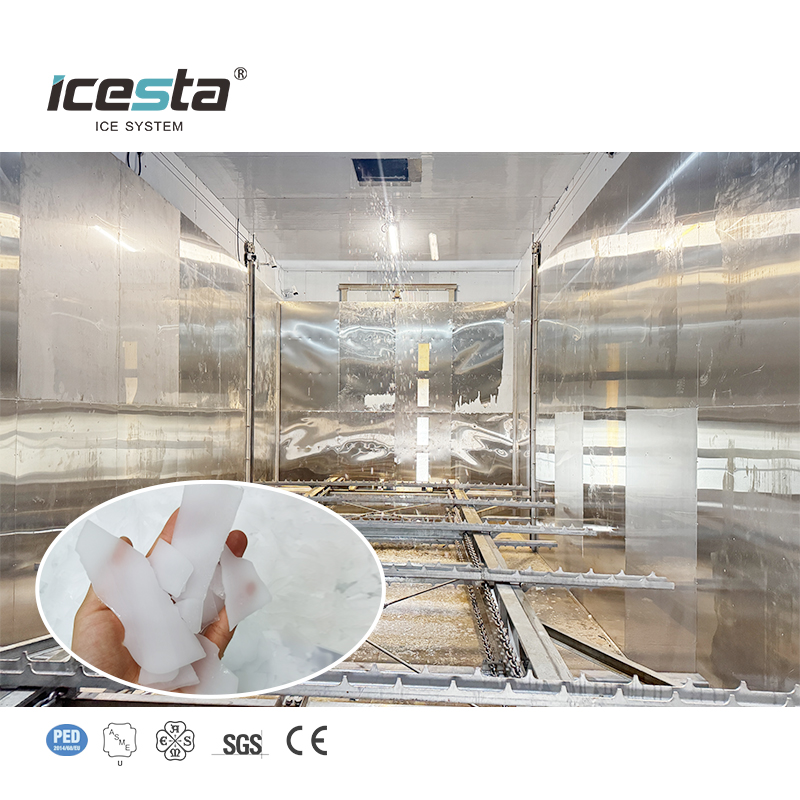

ICESTA Auto lce Storage Room

I. Mobile type, starting from 20 metric tons up to 100 metric tons. 2. Robust steel used for the ice rake assembly and lce Rake Hoist System
 3. Reliable Sensors and Limit Switches to control the movement of AutoIce Storage Room Automatically 4. Efficient Air cooler to keep the room temp down to -10 degrees
 5.100- 150 mm thickness Panels keep the cold inside the room

ICESTA lce Discharge Auger and Delivery Auger

1. Robust design suitable for severe working conditions 2. Single and Dual Screw Design, with a designed delivery rate of 25-40T per Hour 3. Renowned Gearbox with Motor ensures the high quality of ICESTA Brand. 4. Single or Dual lce outlet for one or two ice outlet, which can deliver ice at same time to twin batch plants. 5.Stainless material or Galvanized Steel optional

ICESTA lce Discharge Augerand Delivery Auger

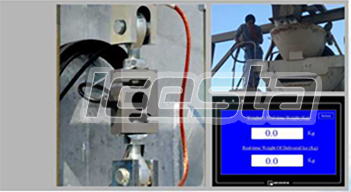

 1.Robust design suitable for severe working conditions 2. Ice Hopper volume up to 500KG 3. Renowned Gearbox with Motor ensures the high quality of ICESTA Brand. 4. Accurate lce Scale svstem5.Stainless material or Galvanized Steel optional

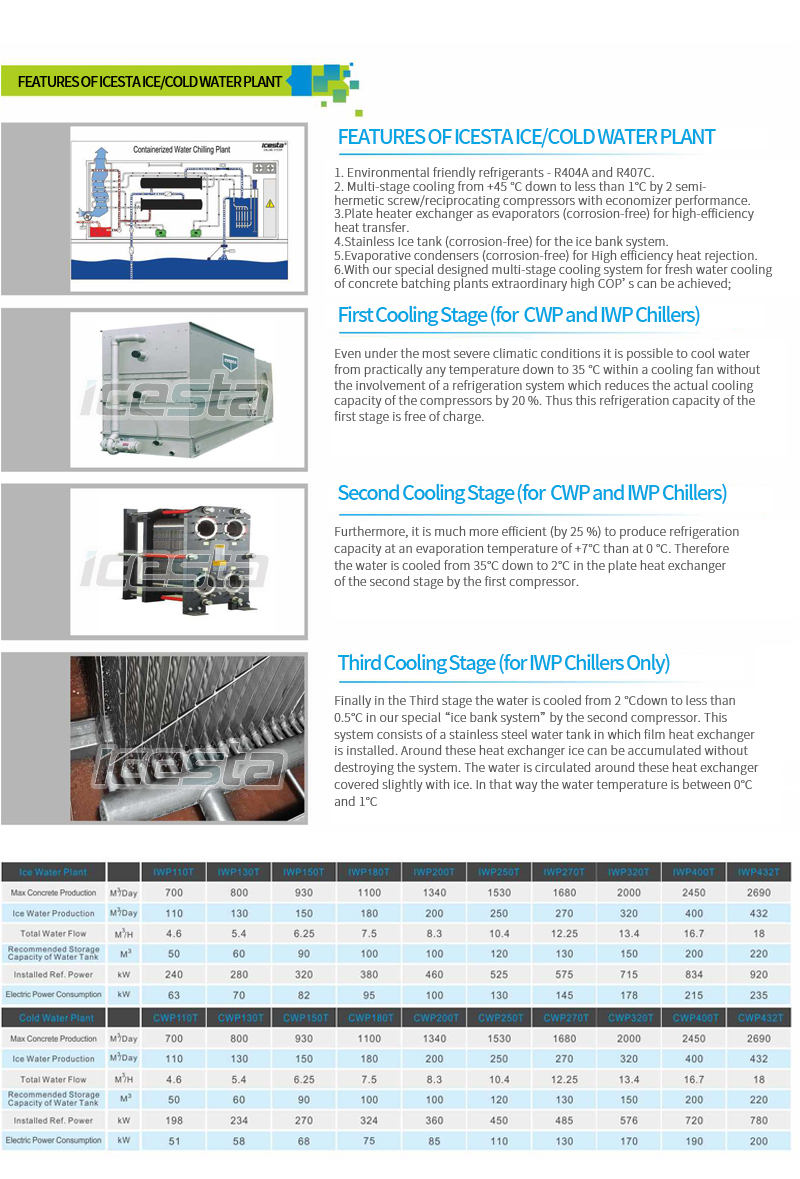

FEATURES OF ICESTA ICE/COLD WATER PLANT

FEATURES OF ICESTA ICE/COLD WATER PLANT

Environmental friendly refrigerants - R404A and R407C. 2. Multi-stage cooling from +45℃ down to less than 1℃ by 2 semihermetic screw/reciprocating compressors with economizer performance.

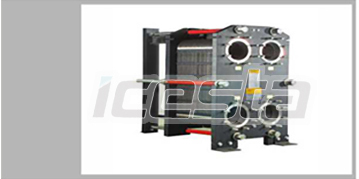

Plate heater exchanger as evaporators (corrosion-free) for high-efficiency heat transfer.
Stainless Ice tank (corrosion-free) for the ice bank system.
Evaporative condensers (corrosion-fee) for High efficiency heat rejection.
With our special designed multi-stage cooling system for fresh water cooling of concrete batching plants extraordinary high COP’ s can be achieved;

First Cooling Stage (for CWP and IWP Chillers)

 Even under the most severe climatic conditions it is possible to cool water from practically any temperature down to 35℃ within a cooling fan without the involvement of a refrigeration system which reduces the actual cooling capacity of the compressors by 20 %. Thus this refrigeration capacity of the first stage is free of charge.

Second Cooling Stage (for CWP and IWP Chillers)

 Furthermore, it is much more efficient (by 25 %) to produce refrigeration capacity at an evaporation temmperature of +7℃ than at 0 C. Therefore the water is cooled from 35℃ down to 2℃ in the plate heat exchanger of the second stage by the first compressor.

Third Cooling Stage (for lWP Chillers Only)

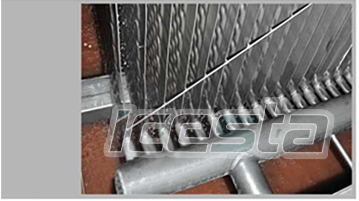

 Finally in the Third stage the water is cooled from 2℃ down to less than 0.5°C in our special “ice bank system” by the second compressor. This system consists of a stainless steel water tank in which film heat exchanger is installed. Around these heat exchanger ice can be accumulated without destroying the system. The water is circulated around these heat exchanger covered slightly with ice.In that way the water temperature is between 0℃ and 1℃

Ice Watet Piant	IWP110T	IWP130T	IWP150T	IWP180T	IWP200T	IWP250T	IWP270T	IWP320T	IWP400T
Max Concrete Production (M³/Day)	700	800	930	1100	1340	1530	1680	2000	2450
Ice Water Production (M³/Day)	110	130	150	180	200	250	270	320	400
Total Water Flow(M³/H)	4.6	5.4	6.25	7.5	8.3	10.4	12.25	13.4	16.7
Recommended Storage Capacity of Water Tank (M³)	50	60	90	100	100	120	130	150	200
Installed Ref. Power (KW)	240	280	320	380	460	525	575	715	834
Electric Pawer Consumption (KW)	63	70	82	95	100	130	145	178	215

Cold Watet Piant	IWP110T	IWP130T	IWP150T	IWP180T	IWP200T	IWP250T	IWP270T	IWP320T	IWP400T
Max Concrete Production (M³/Day)	700	800	930	1100	1340	1530	1680	2000	2450
Ice Water Production (M³/Day)	110	130	150	180	200	250	270	320	400
Total Water Flow(M³/H)	4.6	5.4	6.25	7.5	8.3	10.4	12.25	13.4	16.7
Recommended Storage Capacity of Water Tank (M³)	50	60	90	100	100	120	130	150	200
Installed Ref. Power (KW)	198	234	270	324	360	450	485	576	720
Electric Pawer Consumption(KW	51	58	68	75	85	110	130	170	190

Application Industry

More and more Coling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.

AUXILIARY EQUIPMENT

Fully automatic system "storage" and "ice delivery" integration project

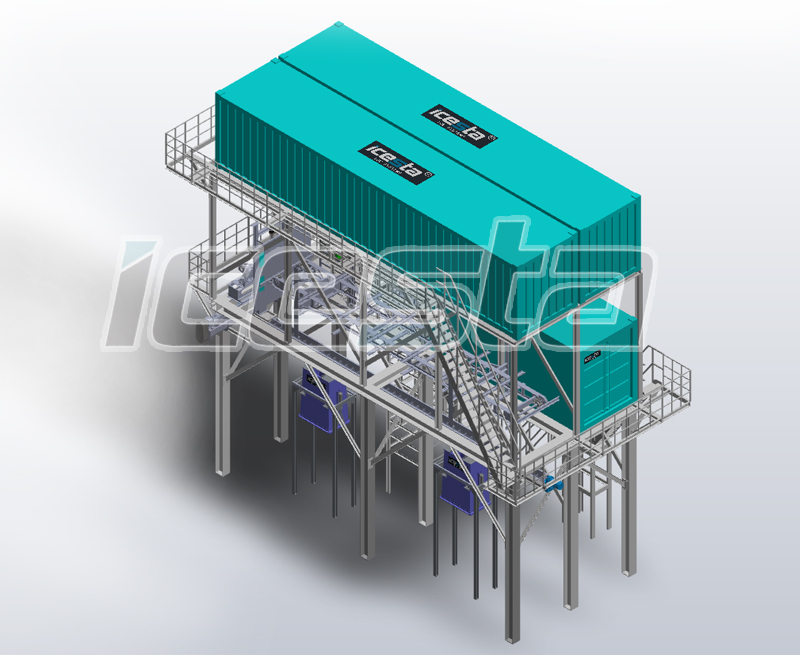

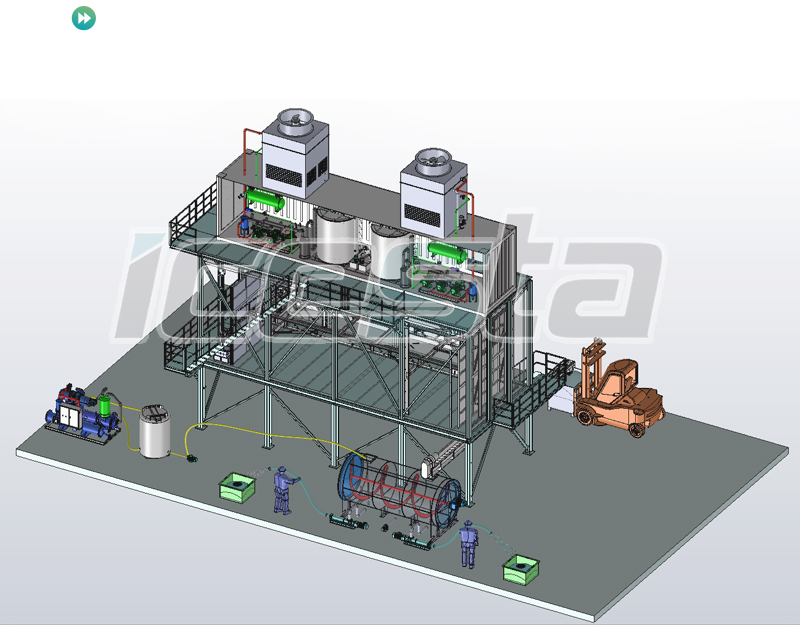

3D DIAGRAM DISPLAY

Adding an Ice screw Mixing tank/silo, you can quickly get also Slurry ice,

to know more about ICESTA Slurry ice system, click here

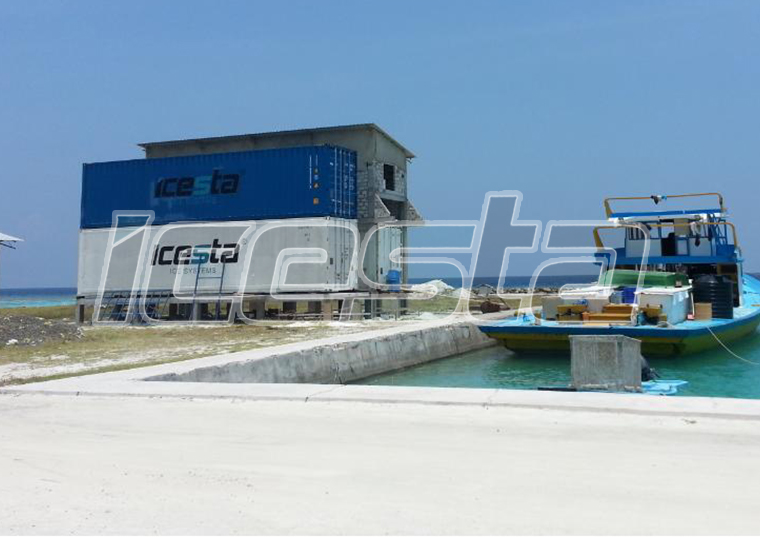

ENGINEERING CASE

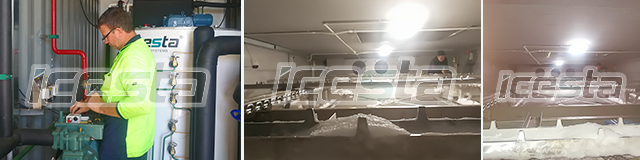

30T flake Ice Plant & 50T Auto Storage,

Humpty Doo Baramundi Australia
