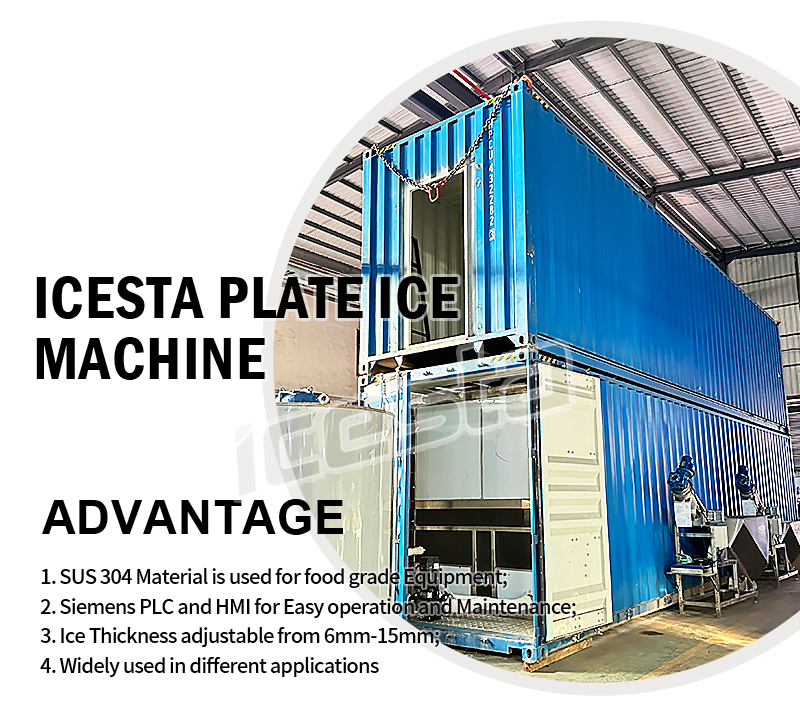

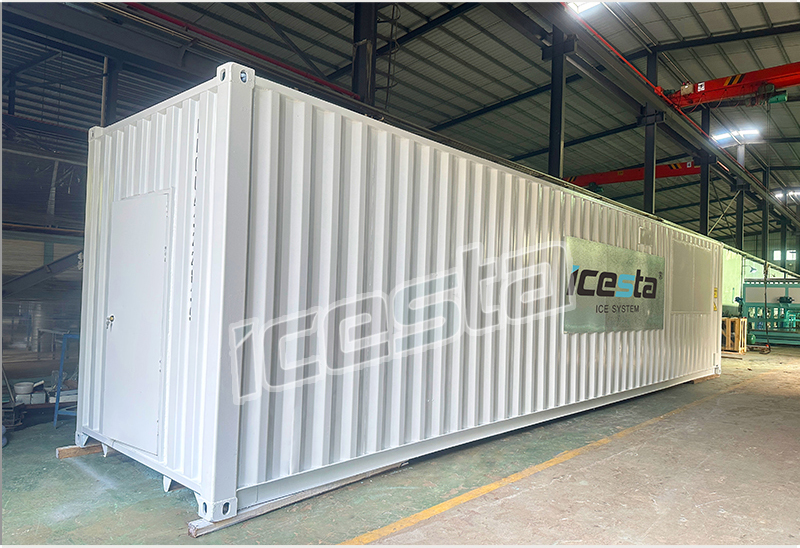

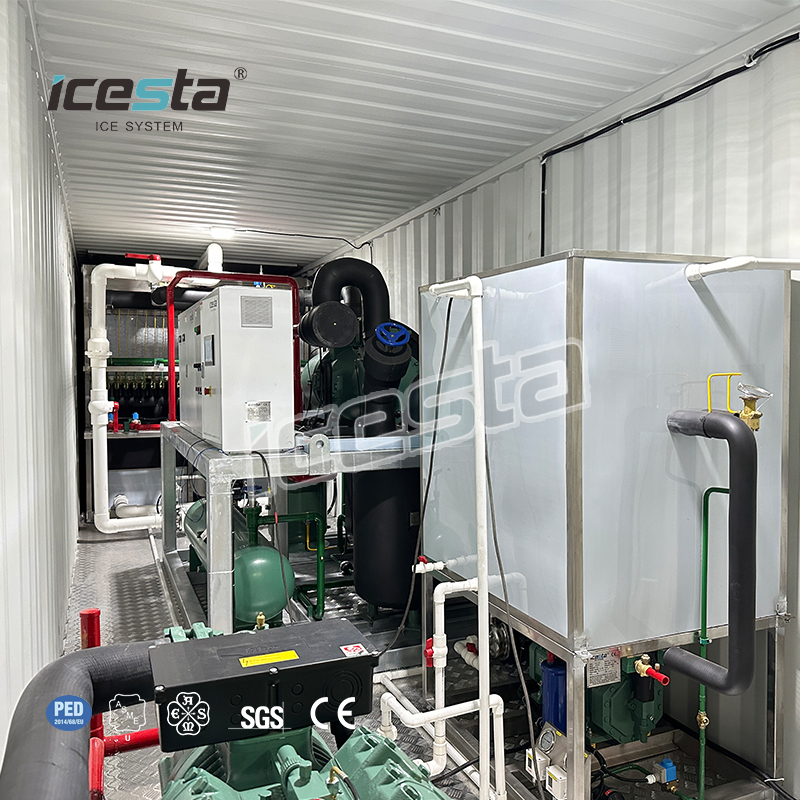

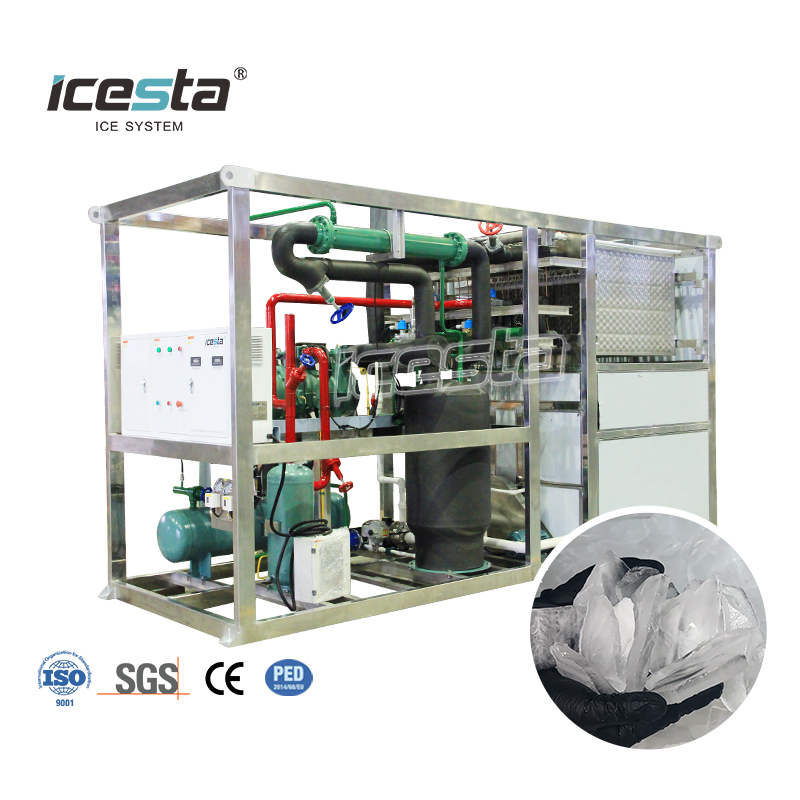

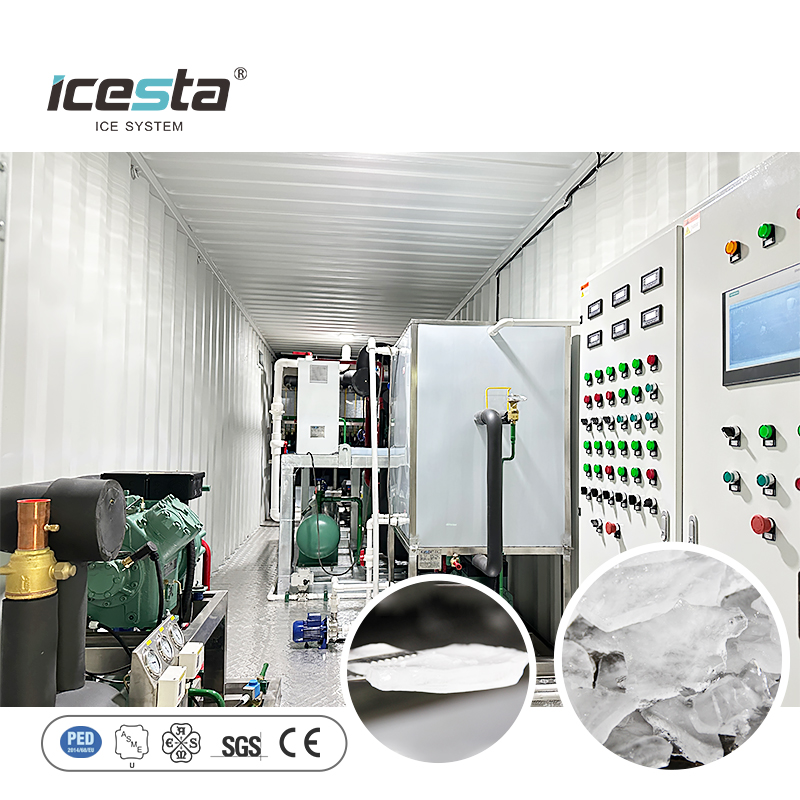

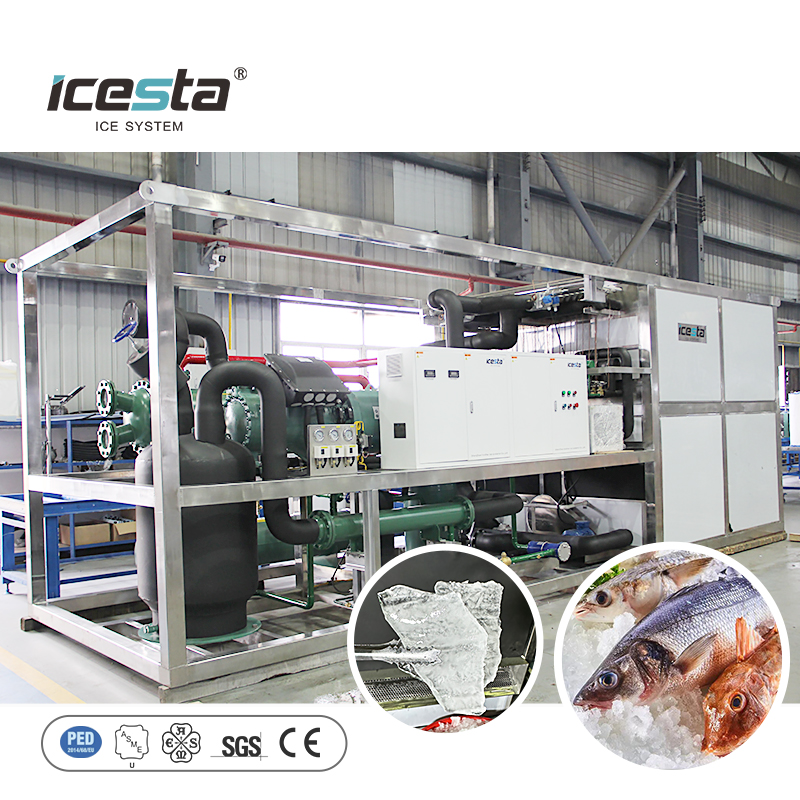

Industrial Container plate ice machine with 30t Evaporative cooling Stainless Steel Long Service Life For Concrete cooling

Product Introduction

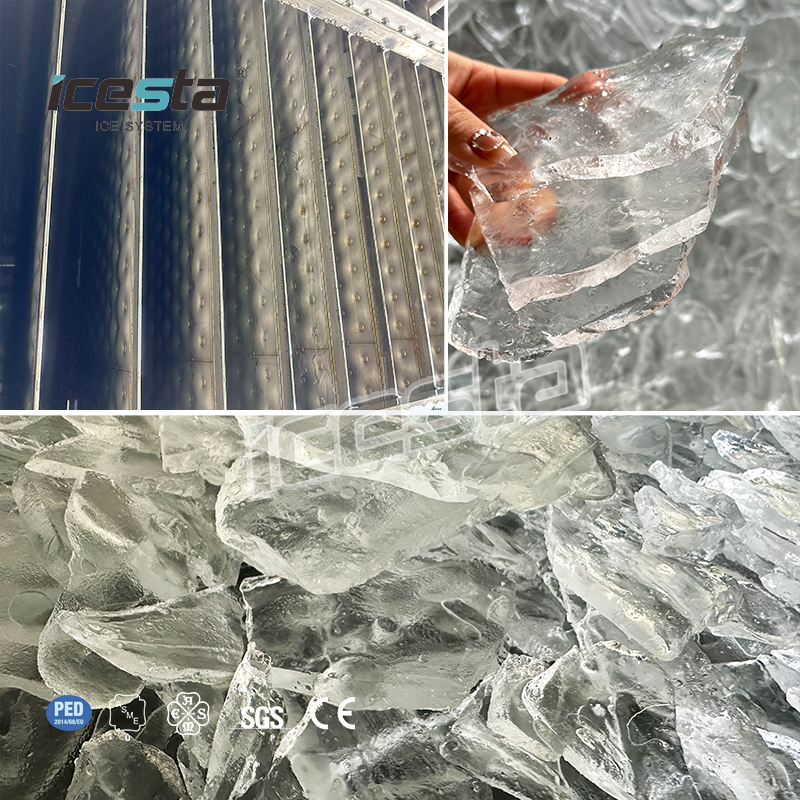

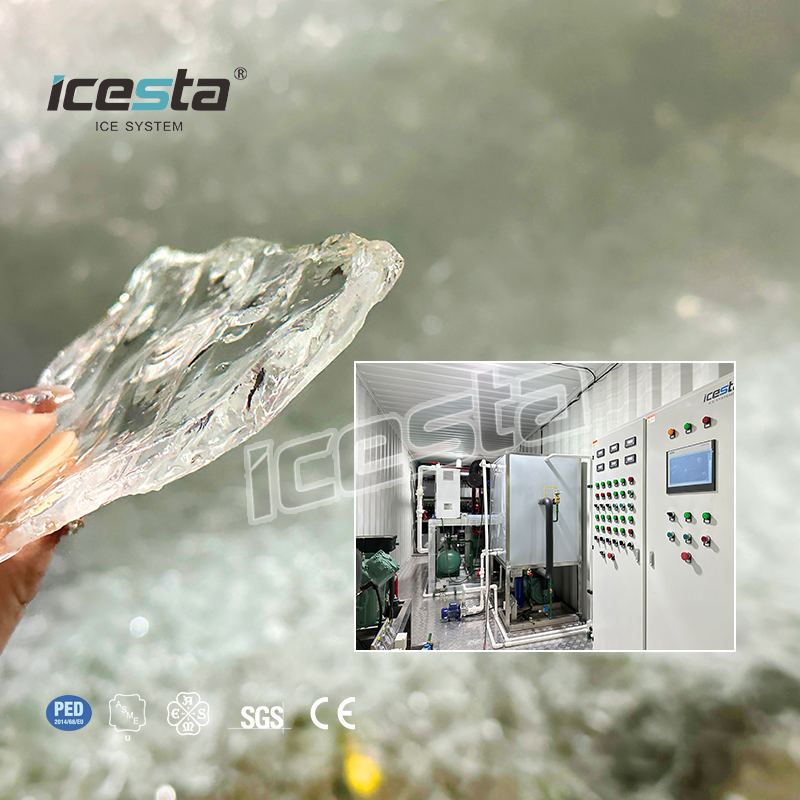

Icesta plate ice is an irregular plate ice with transparent crystals, not easy to melt, small surface, dry, no powder, long cooling time, flake size is about 40x40mm to 80x80mm, can be adjusted according to customer needs, thickness is about 8-10mm, plate ice thickness can be adjusted by ice making time, ice is thick, long shelf life, not easy to melt, good air permeability, constant refrigeration temperature, small plate ice is very convenient to use in any occasion, equipped with a secondary ice crusher, the size can be freely adjusted. Plate ice evaporators are mainly divided into aluminum alloy plate ice evaporators and stainless steel plate ice evaporators. Plate ice evaporators adopt direct expansion system and use R-22, R507A, R404A or ammonia (R717) as refrigerant.

The daily production capacity of a single unit is 20T to 100T, and the combination of multiple containers can reach 500T.

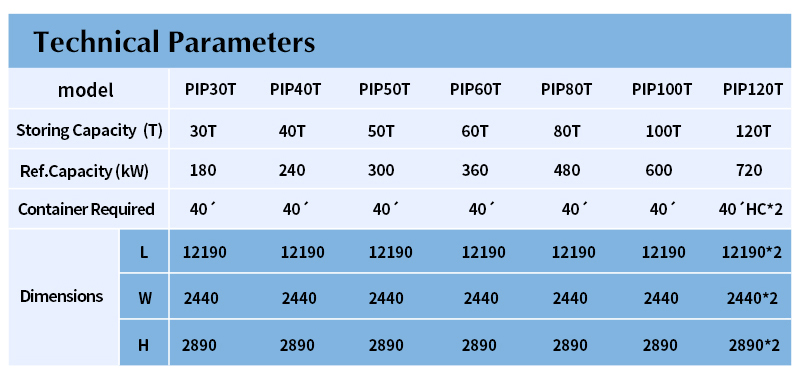

Technical Parameters

*Power supply: 380V/3P/50HZ,220V/3P/60HZ,380V/3P/60HZ,460V/3P/60HZ

*Ambient temperature 35°C

* Water supply Temp 20°C( quality)
*Extreme working condition environment: 5°C~40°C, water supply 5°C~30°C

*Refrigerant: R22,R404A, R507A

Application Industry

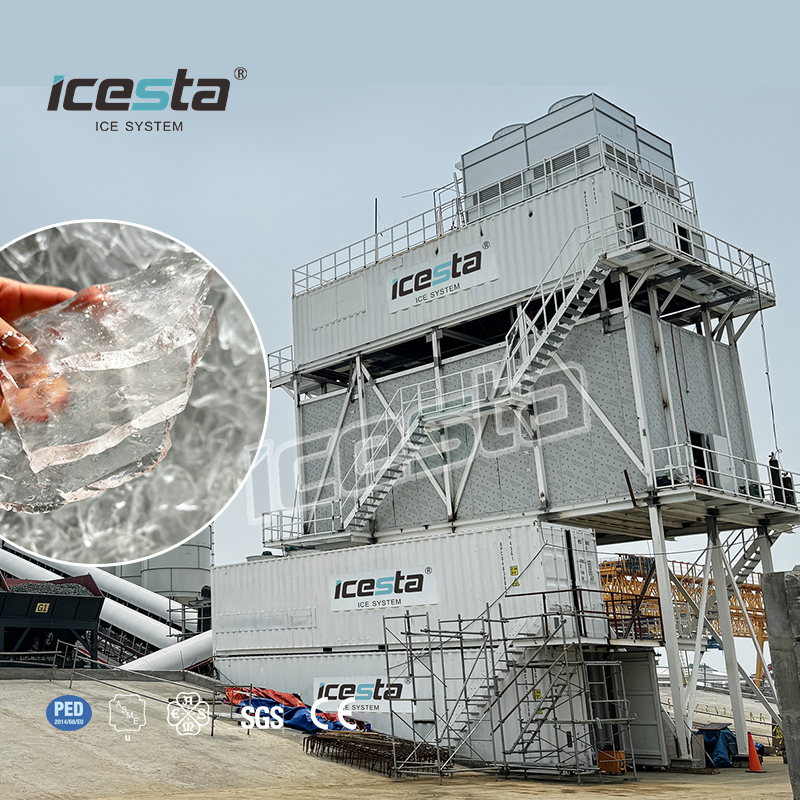

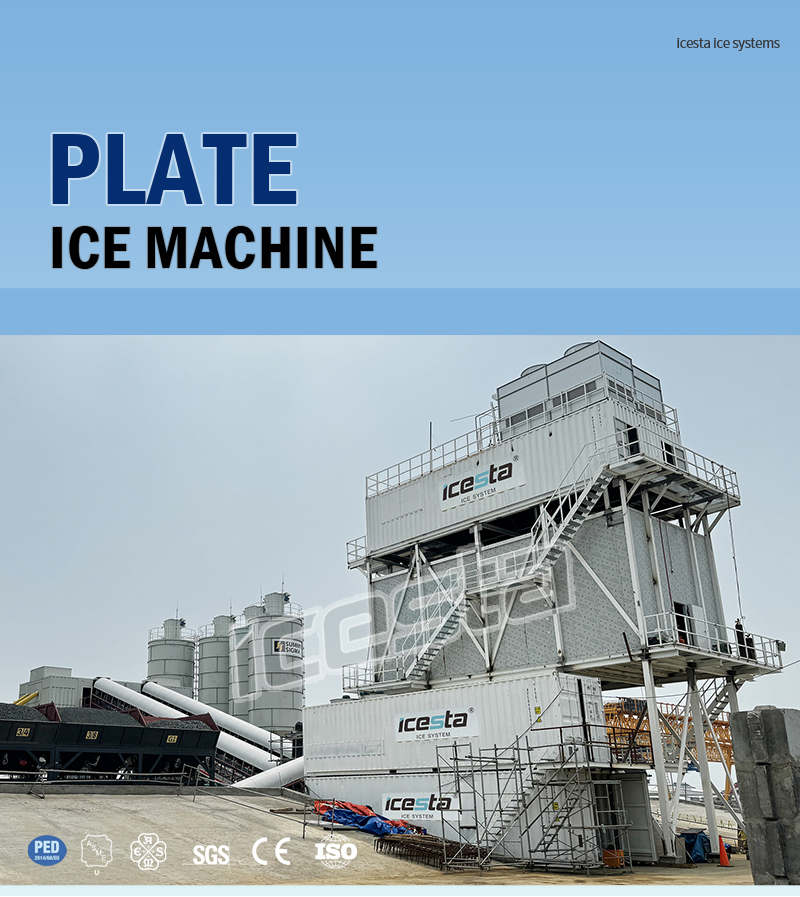

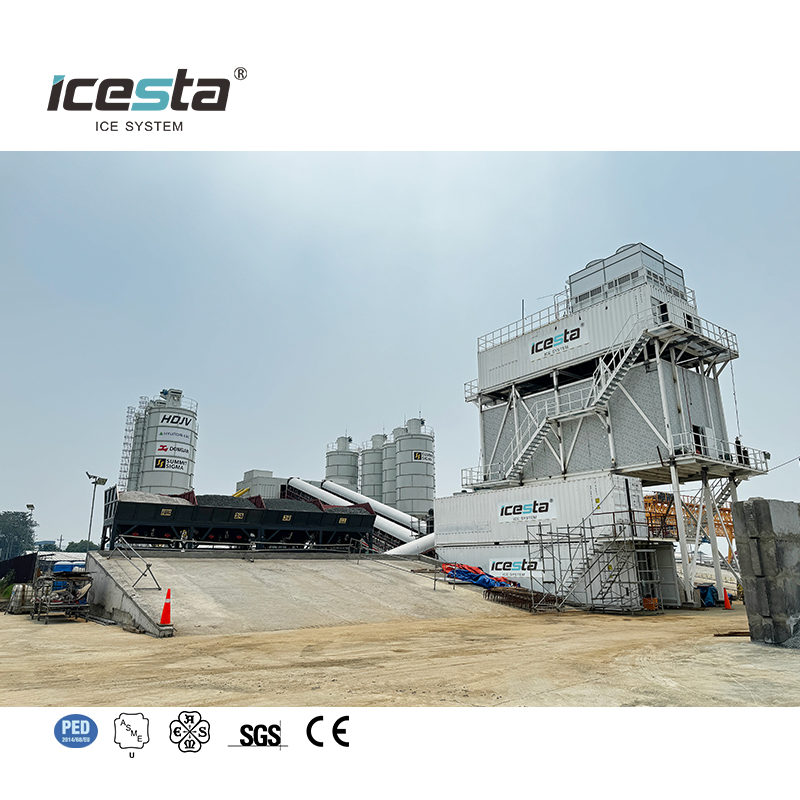

concrete mixing plant, chemical plant, mine cooling, vegetable preservation,fishery and aquatic products insulation, etc.

WHY Plate Ice

1. 1.SUS304 & SUS316L PLATE lce Evaporator optional, with the SUS 304 frame,Ice plates are sanitary and edible

2.Plate ice has an even cooling effect and aconstant refrigeration temperature of -2C;

3.Plate lce does has an adjustable ice thickness of 6mm-15mm, with 7-8mm as the widely accepted thickness

4. Compared with other traditional ice machines, the plate ice machine has an evaporation temperature of -12, which can save 35% of electricity;

5. The maximum thickness of plate ice is 12 mm, so it is less likely to melt than flake ice;

6. Widely compatible with different refrigerants (R404A, R507A, R449A and R717);

7. Highly compact, with a production capacity of 80 metric tons per 40HC container;

8. Widely used in different industries.

9. CE certified.

ICESTA PLATE ICE

δ(6 - 15mm)

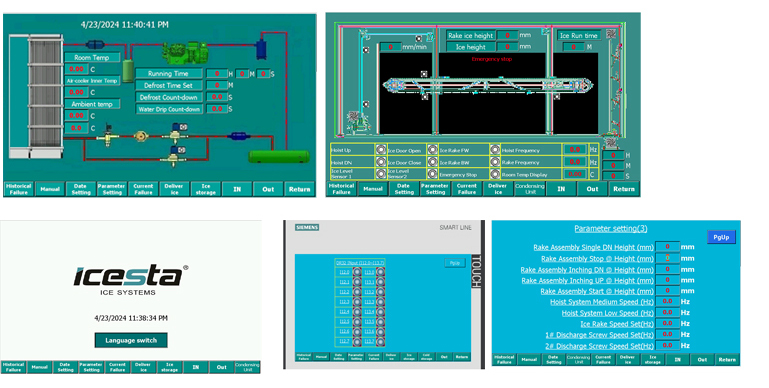

TOUCH SCREEN

Top-notch engineering design for integration ofice making & storing & handling

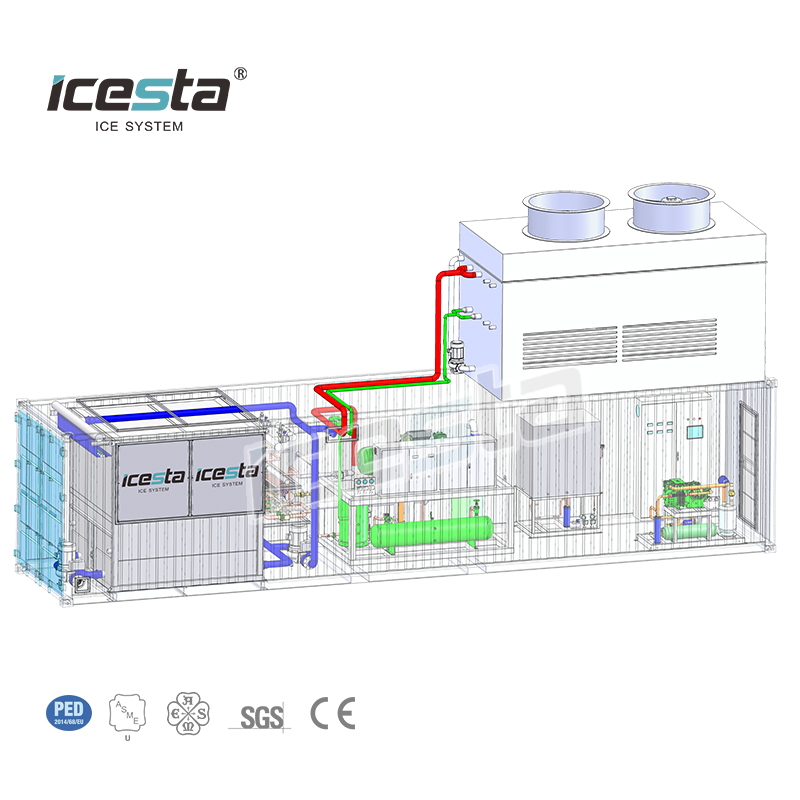

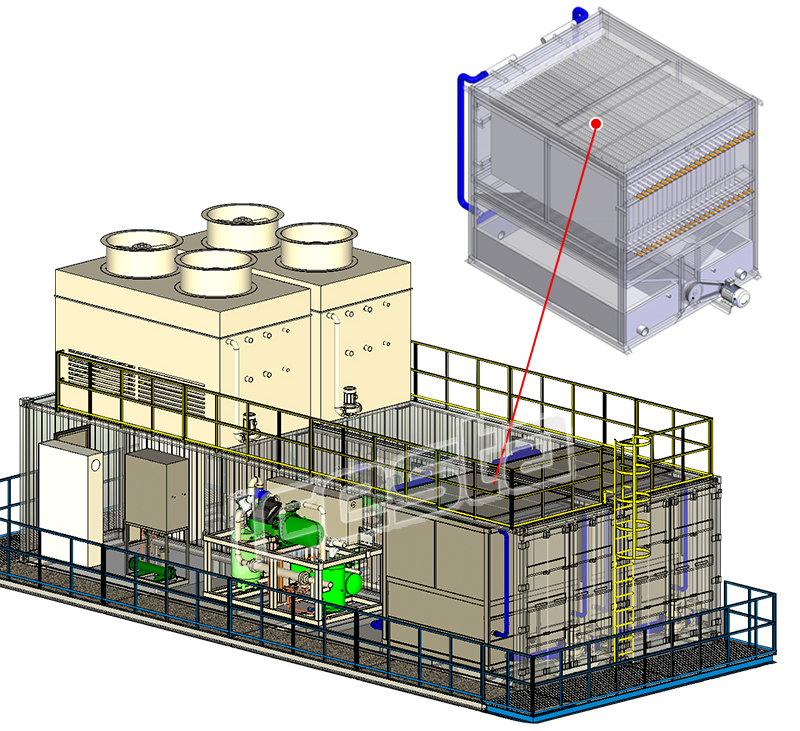

Drawing Display

The ICESTA team has more than 20 years of experience in refrigeration and ice making, and is constantly innovating products to achieve higher efficiency, more stable operation, and smoother de-icing and ice making.

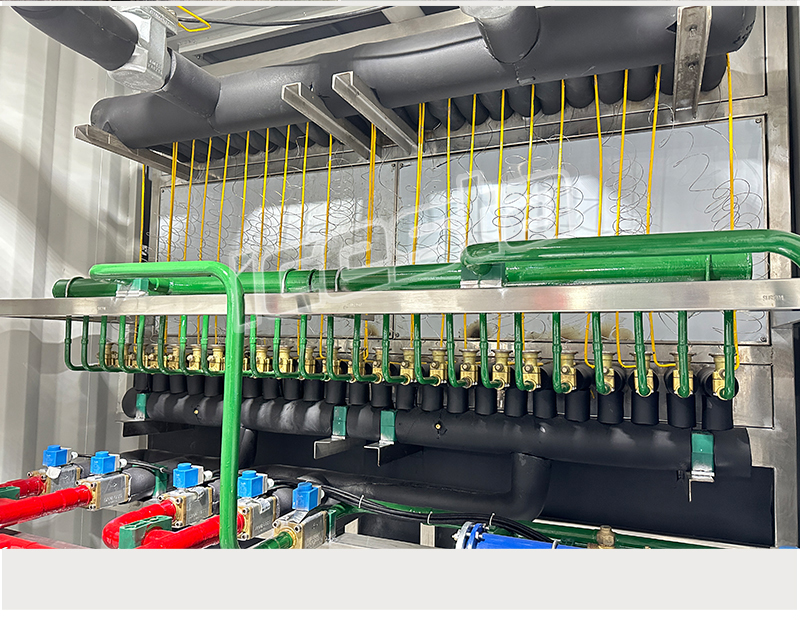

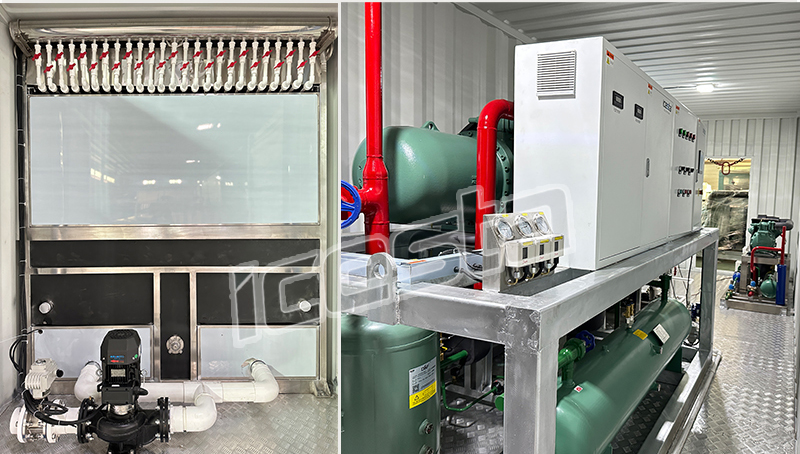

Detail Display

Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful
