IF20T-R4A,IF25T-R4A,IF30T-R4A
ICESTA
Ice Making System
PRODUCT INTRODUCTION
Icesta Industrial flake ice machine compared with similar products on the market,it has incomparable outstanding advantages in terms of performance,quality, appearance, etc., and enjoys a good reputation in the market. ICESTA Ice System summarizes the defects of past products, and continuously improves them. The specifications of Icesta Industrial flake ice machine can be customized according to your needs.
The large series of ICESTA ice flake machine always used in the field such as aquatic food & meat product processing, fowl butchering, ocean-going fishing, dye chemical industry, mines cooling, concrete construction project, ice factories, Etc.
INDUSTRIAL FLAKE ICE MACHINE 20-30
EXQUISITE CRAFTSMANSHIP MAKES TOP-NOTCH ICE MACHINE,
High reliability ,Customized,100% Ice Production,15+ Years Lifespan,Exported to 80+ Countries.
· TECHNICAL PARAMETERS
*The technical data based on 25°C ambient temp.20°C water inlet temp
* Power supply:3P/380V/50HZ,3P/220V/60HZ,3P/380V/60HZ,3P/460V/60HZ Optional
* The ice thickness:1.6-2.3mm
* Refrigerant: R404A(R22 R17 R507 is optional)
Model | IF20T-R4A | IF25T-R4A | IF30T-R4W |
Ice production | 20t/24hrs | 25t/24hrs | 30t/24hrs |
Cooling capacity | 128.4kw | 156.3kw | 181.6kw |
Evaporation temperature | -20°C | -20°C | -20°C |
Condensing temperature | 40°C | 40°C | 40°C |
Input total power | 73.56kw | 93.66kw | 112.28kw |
Compressor power | 59.7kw | 79.8kw | 93.2kw |
Pump power | 0.75kw | 0.75kw | 1.5kw |
Reducer power | 0.75kw | 0.75kw | 1.1kw |
Unit size | 4000*2100*2200mm | 4000*2100*2450mm | 5600*2100*2450mm |
weight | 4160KG | 4960KG | 5380KG |
· SHOW DETAILS
All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.
· DRAWING DISPLAY
The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.
20T flake ice machine
3D drawings
· ADVANTAGE
Advantages of ICESTA flake ice machine
The ICESTA series of flake ice machines are the first dynamic process intelligent control system (touch screen) in the industry in our country, which can remotely control the system touch screen, so that the running status of the ice machine can be displayed through touch, and it can quickly search for problem solutions to make the ice machine human Make a more perfect breakthrough.
ICE FLAKER Generator (evaporator)
· Prominent Heat treatment to avoid any SRINKAGE
· TOP welding testing technics with X-RAY——Never leak
Intellectualized PLC controller with touch-screen
· All failure record & instant solution available
· Stop-time setting at will.
· different languages version
Elaborate details design gives all-sided convenience
· Remote small touch-screen control
· Sufficient ice output
· APPLICATION INDUSTRY
More and more Coling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.
· AUXILIARY EQUIPMENT
Fully automatic system "storage" and "ice delivery" integration project
ENGINEERING CASE
30T flake Ice Plant & 50T Auto Storage,
Humpty Doo Baramundi Australia
Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions
· PICTURE DISPLAY
Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful

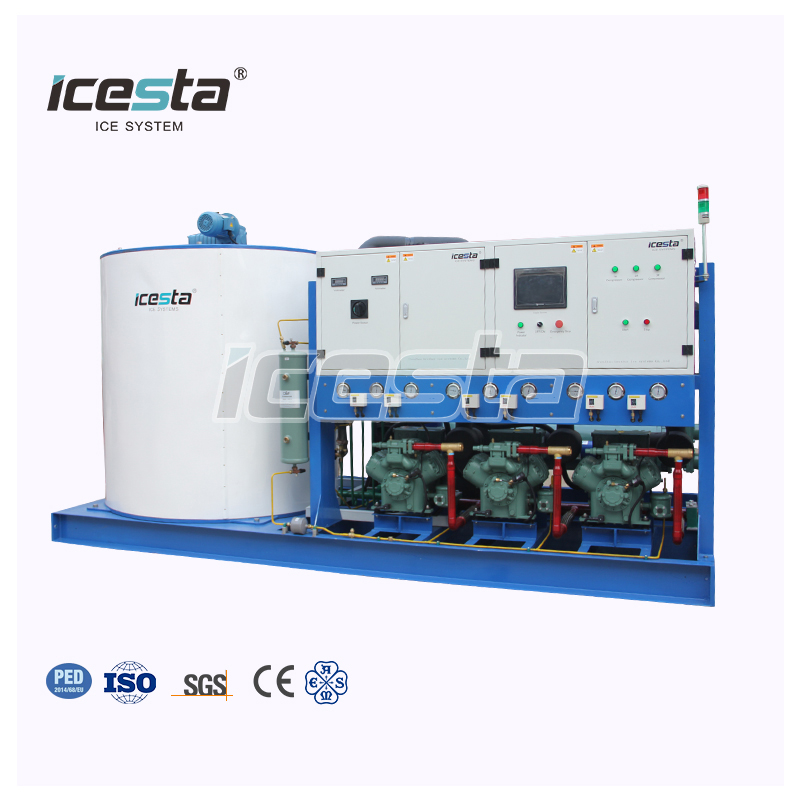

20 tons front view

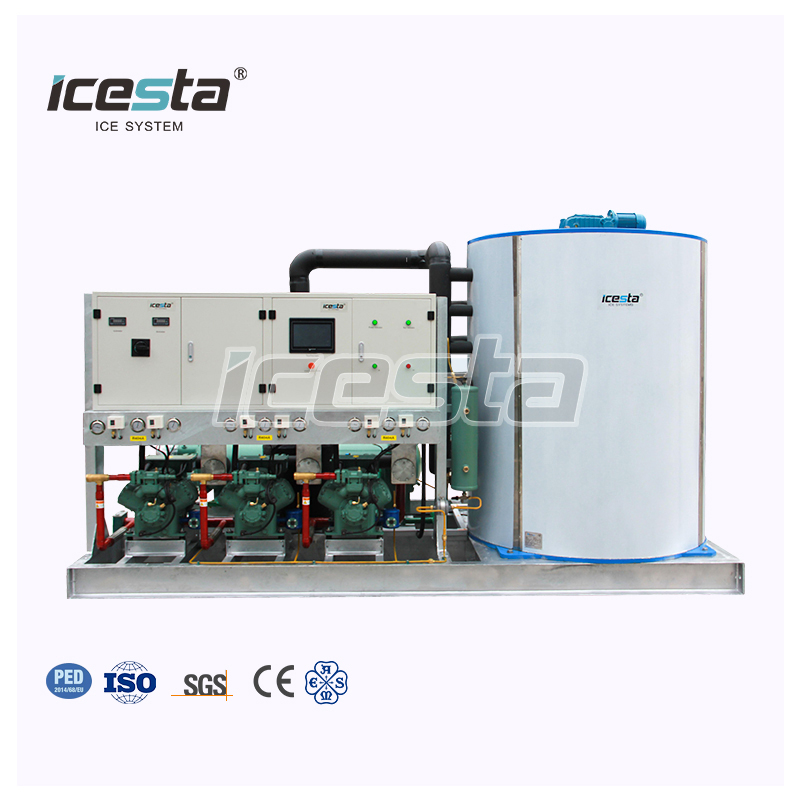

25 tons front view
25 tons rear view

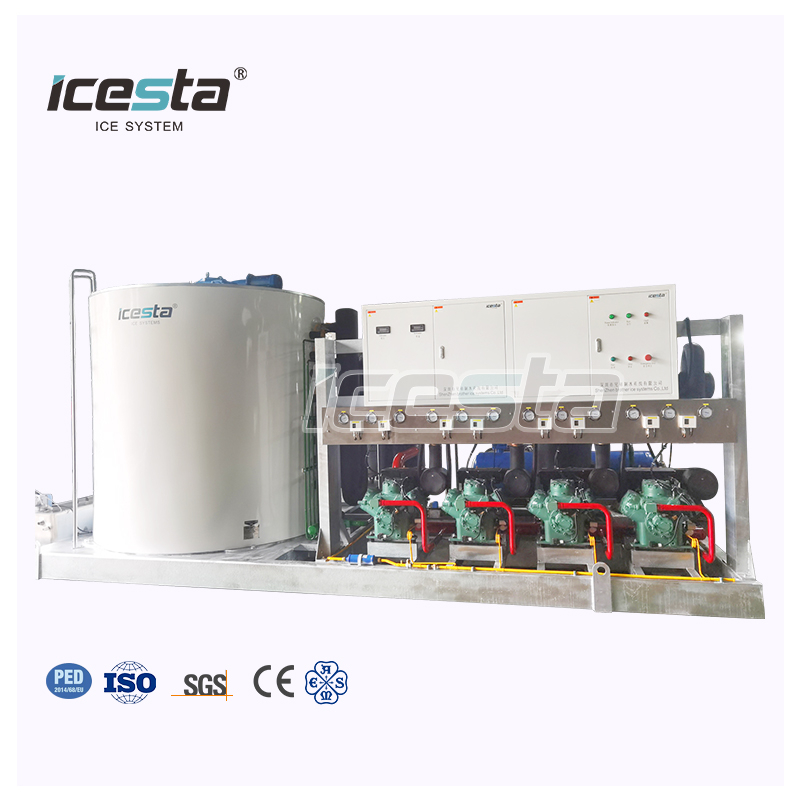

30 ton map
A. Would you make ice from seawater, saltwater or freshwater?B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?C. What's the power supply?D. What is the application of the flake ice produced?E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?
