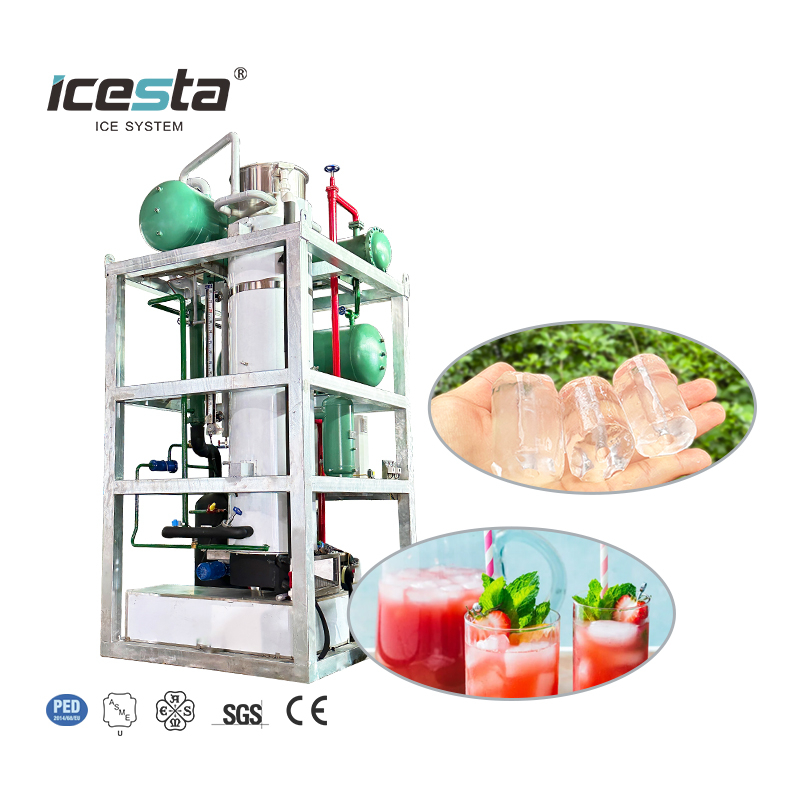

ICESTA Customized energy-saving High Productivity Long Service Life 20 Ton industrial tube ice machine $59000

Technical Parameters

Thetechnical data based on 30-℃ambient temp.20Cwater inlet temp.

The evaporating / condensingtemp.-15C/40℃(Air-coole) 38℃(Water cooled)

Powersupply: 3P/380V/50HZ(3P /220/60HZ,3P/280V/60HZ,3P/460V/60HZ Optional)

Refrigerant R404A(R22R17 R507 is optional)

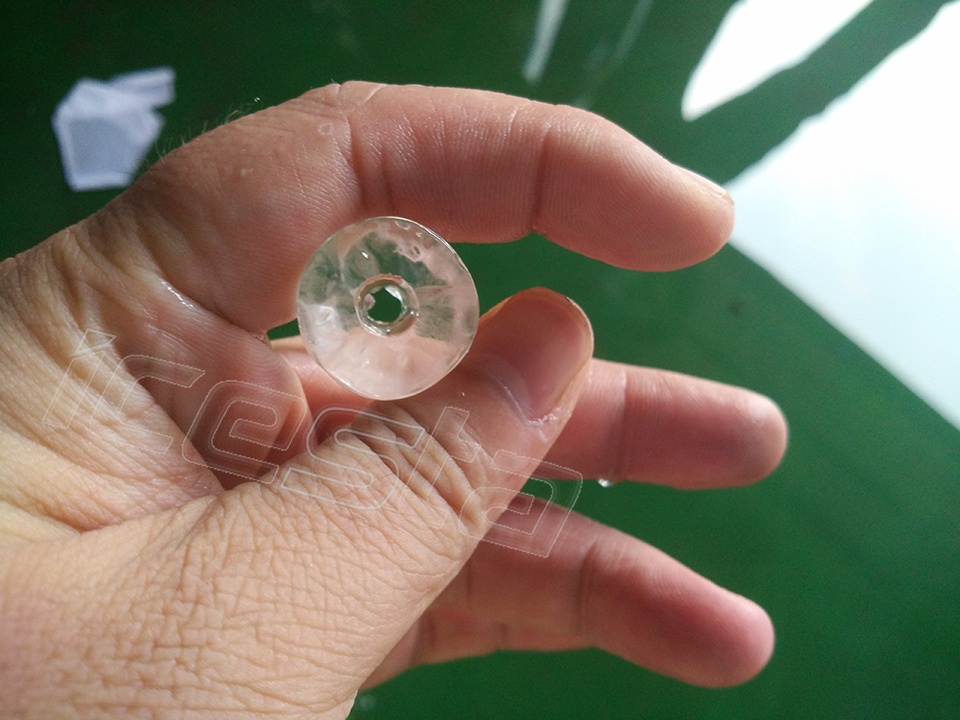

lce tube diameter: Φ22,Φ29,Φ35,Φ42 is optional

model	IT15T-R2/4W	IT20T-R2/4W	IT25T-R2/4W	IT30T-R2/4W
Ice output	15t/24hrs	20t/24hrs	25t/24hrs	20t/24hrs
lce tube diameter	Φ29	Φ29	Φ29	Φ29
Cooling Capacity	122.9kw	140.9kw	191.9kw	233.1kw
input power	56.6kw	71.8kw	91.65kw	106.25kw
Compressor input power	45.9kw	59 9kw	73.9kw	88.5kw
lce cut reducer input power	1.5kw	1.5kw	1.5kw	1.5kw
Water pump input	2.2kw	2.2kw	3kw	3kw
Ice machine Weight	4000KG	4800KG	5600KG	6400KG
Ice Machine Diameter	2400X1800X2050mm	2500X1900X2200mm	2500X2000X2250mm	2500X2000X2250mm
Weight of cooling tower	Φ2100X2510	Φ2100X2510	Φ2900X2875	Φ2900X2875

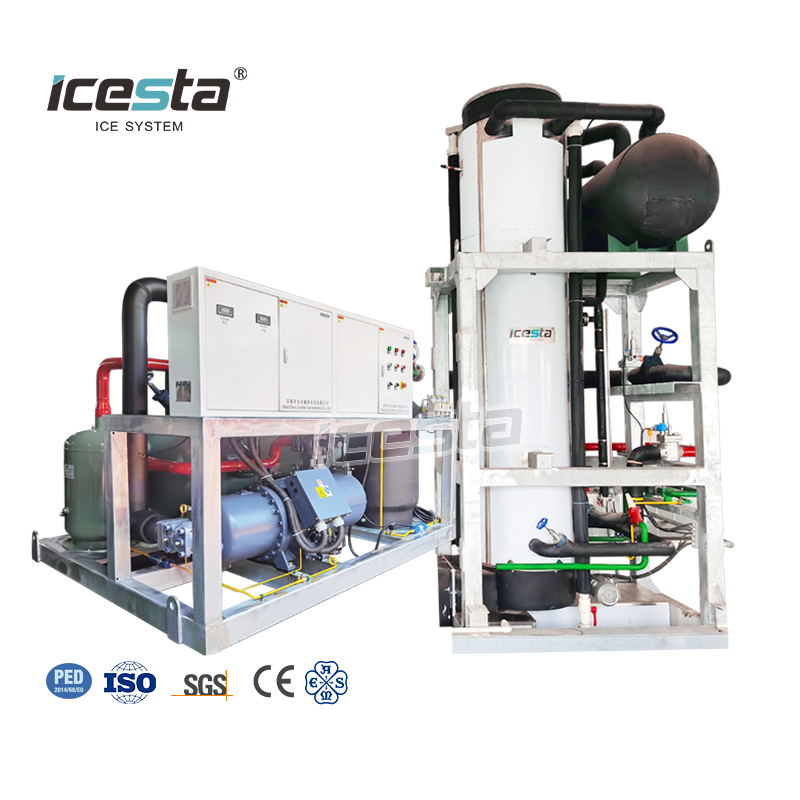

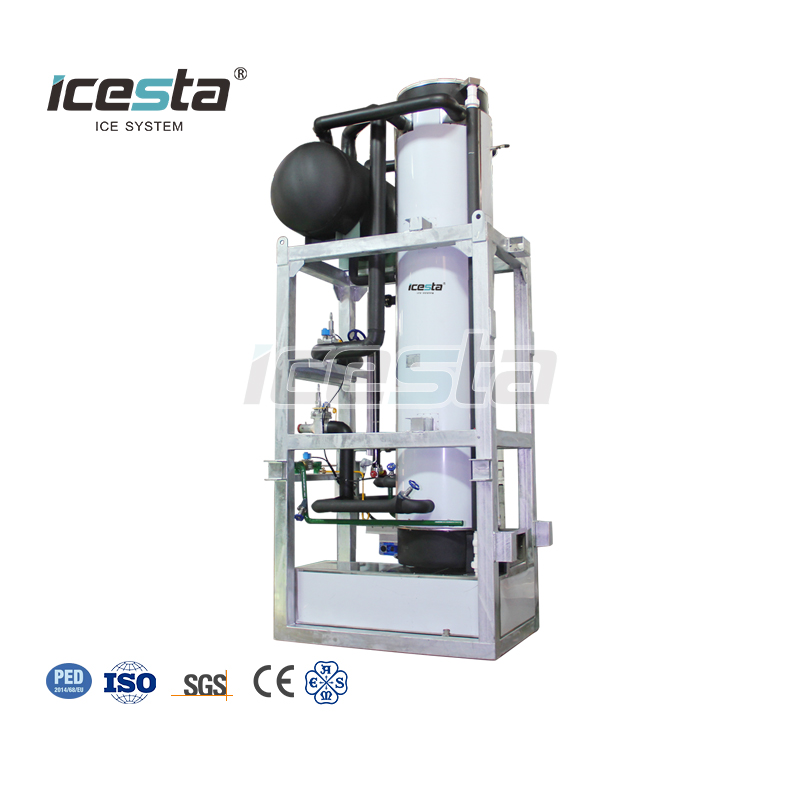

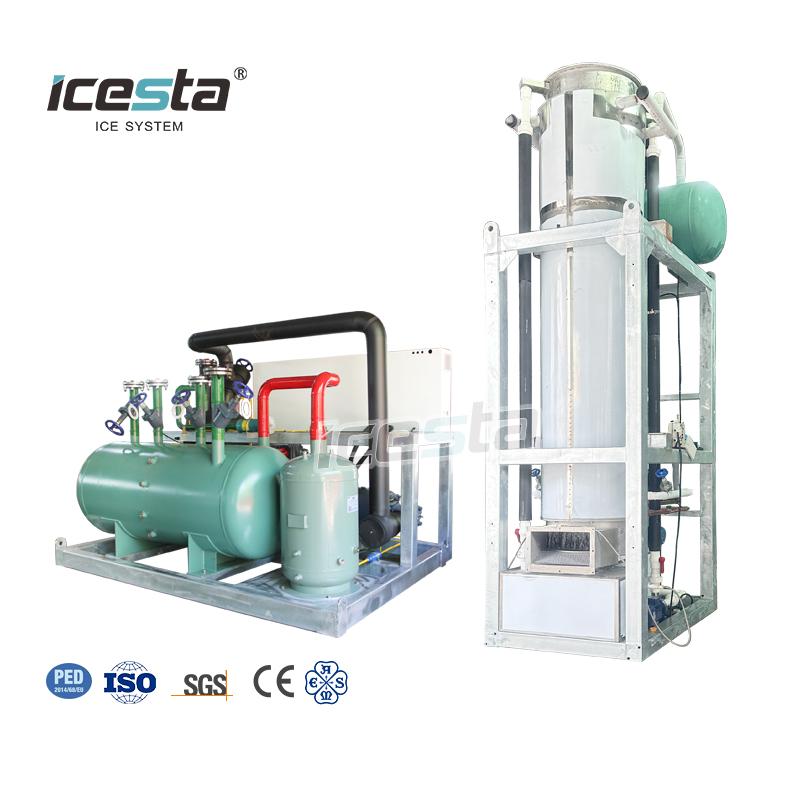

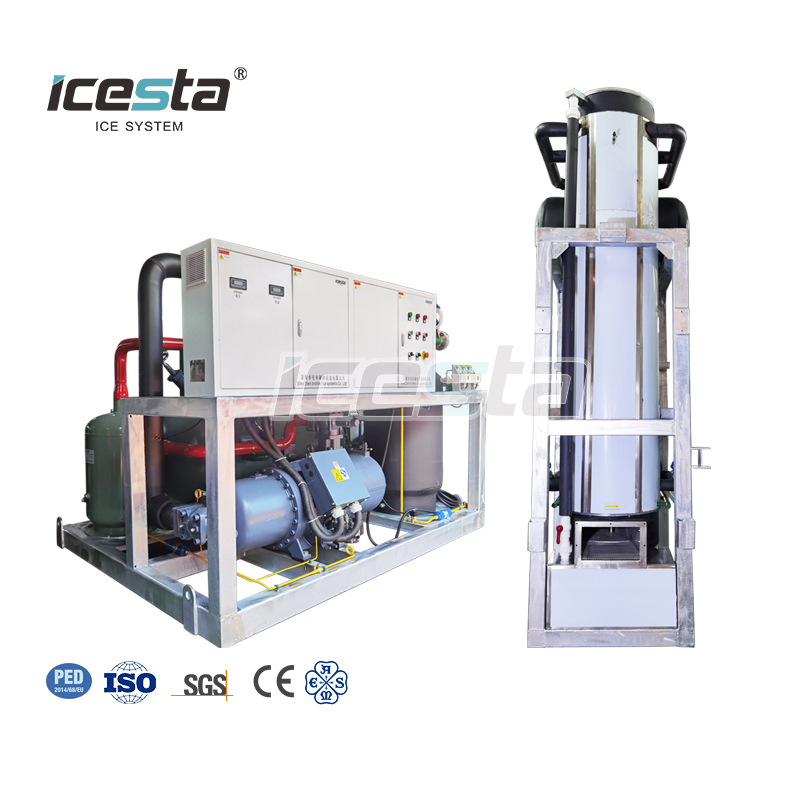

Picture Display

Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful.

Application Industry

ICESTA is providing the world Excelent Tube ice solutions with high ice output, reliableperformance and humanization design.

Drawing display

The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.

1. Advantage


2. ADVANTAGES OF ICESTA TUBE ICE PLANTINNOVATIVE DESIGN FOR GENERATOR


3. 1.Innovative manufacturing artwork has been adopted.The ice stripping surface is smooth as a mirror.That has tremen-douslyincreased ice stripping efficiency and energy-efficiency ratio.

2.The ice cuttercan be easily dismantled and replaced as a whole.

3.Compared with peers, ICESTA evaporator can form even water membrane more effectively.That makes more even andcrystal ice tubes

4.The upper and lower freezing water reservoir is openly structured,which helps a lot with cleaning and disinfection.

5.ICESTAice plant adopts an optimizeddriving structuraldesign, which ensures both simplestructure and high reliability.

6. ICESTA customizes a reasonable design of ice plantsuitable for convenient container transportation for oversea clients.

7.Deice just need 130-200s.

PATENTED H-M INTERACTIVE INTELLIGENTCONTROL SYSTEMWITHToUCH-SCREEN:

1. The working status of the ice system display alive in screen

2. 2.Setting stop-time at will.

3. 3. All possible failure and trouble-shooting is programmed in.

4. 4.Local time could be set

5.


6.


Show Details

All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.

3D diagram display of tube ice machine and office building layout plan

Auxiliary Equipment

Optimal industrial application: lce packing Components:
1.Buffer Storage Bin (ranging from 50OKG to 2000KG)
2.Built-in delivery screw
3.Dual control system (Manual and foot pedal);

Foot pedal can start and stop at will, which is nearly a semi automatic packing machine.

PACKAGE UNIT OF TUBE ICE MAKING, DELIVERING, PACKING,ICE BAGS CONVEYING.

Customer-Oriented design.Our consideration and,innovation reach everywhere.

Engineering Case

FAQ

FAQ (Frequently Asked Questions)

1. Questions before quotation
A. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What’s the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?

2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars
100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.

3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance

4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed
description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
