ICESTA Factory Price Low Consumption High Efficiency Iqf Machine Beef Fish Automatic Industrial Double Spiral Belt Freezer

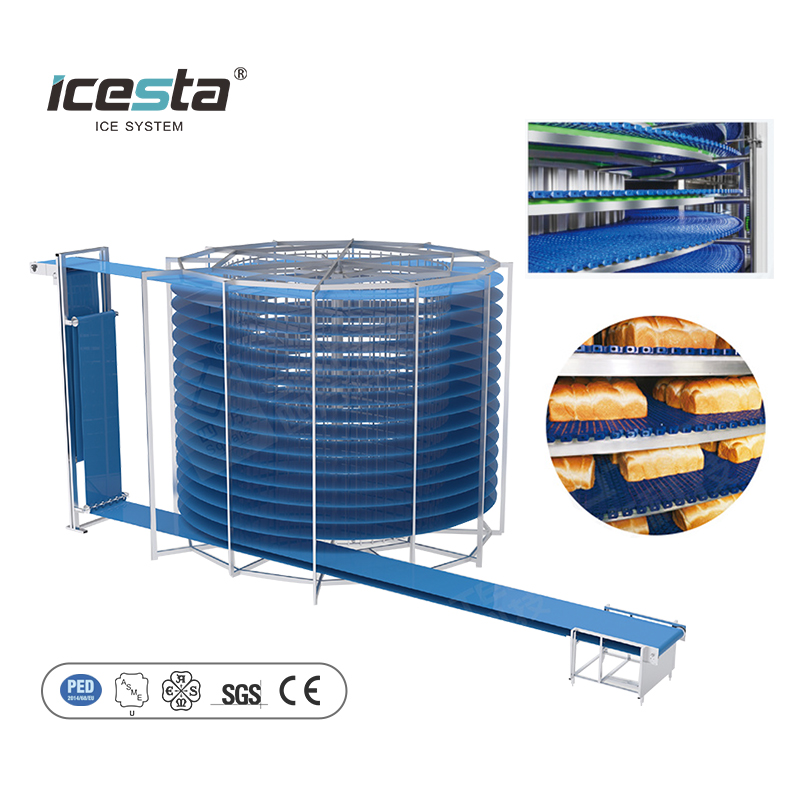

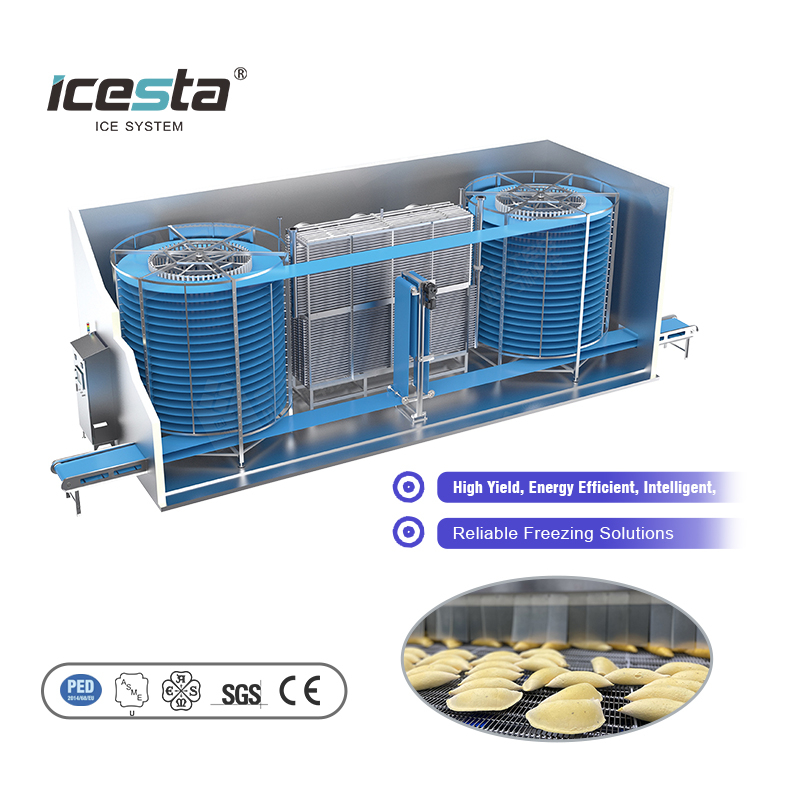

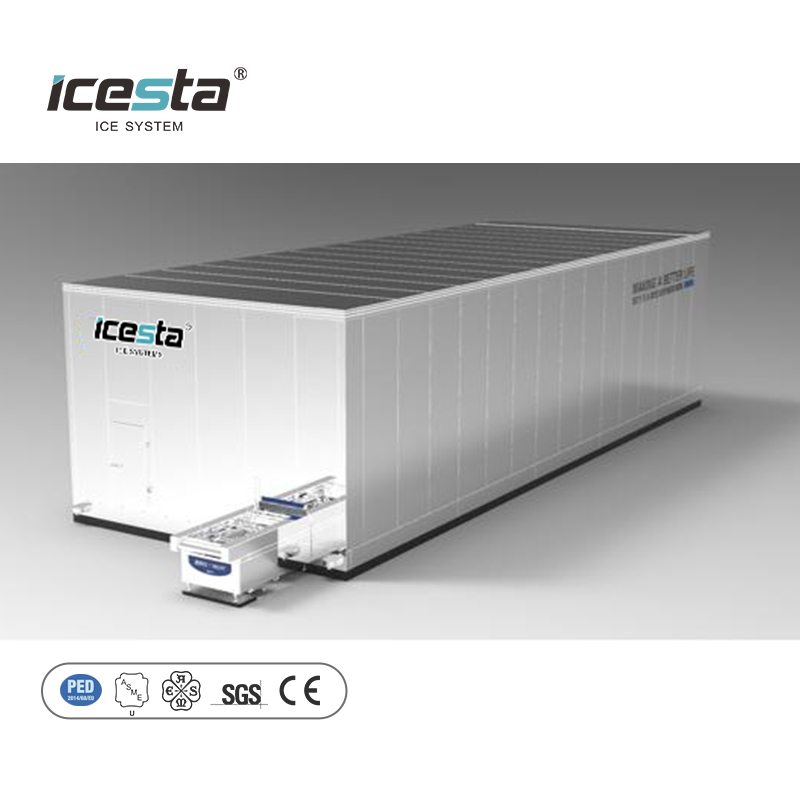

The double-drum low-pressure spiral freezer produced by ICESTA is suitable for individual quick-freezing of granular and small-block foods. Its large-scale freezer is also suitable for individual quick-freezing of large-sized frozen foods, such as prepared foods, whole chickens, whole fish, etc. The double-drum spiral freezer features low-level feeding and discharging, which is convenient to operate and can be matched with customers' production lines.

The low-pressure spiral freezer adopts a dual-roller low-level feeding and discharging system, which can easily match with the front and back processing lines, making it convenient to use.

Technical Date

Infeed/ Outfeed Configurations

Stainless Steel Mesh Belt

SUS304 food-grade spring wire, high strength, 8–10 years of service life. Open structure, easy to clean, suitable width: 400–1372 mm. Optional edge guard board to prevent products from dropping. High ventilation, high efficiency.

Finite Element Analysis

When Designing a spiral freezer, structural analysis is performed to ensure its structural integrity during operation

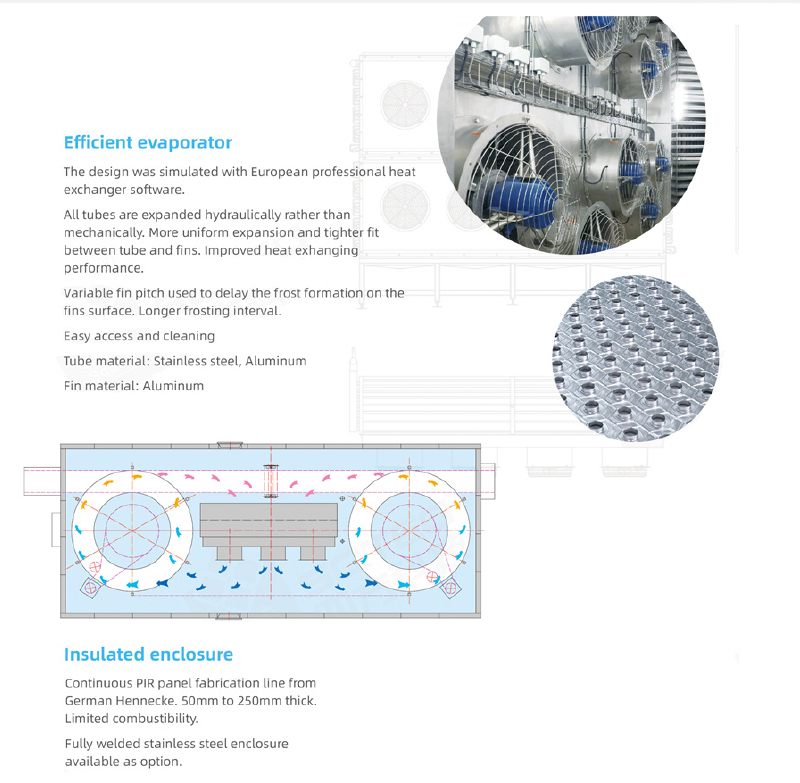

Efficient Evaporator

Our design was simulated with European professional heat exchanger software. All tubes are expanded hydraulically rather than mechanically, which improves heat exchange performance due to more uniform expansion and a tighter fit between tube and fin.

Variable fin pitch is used to delay frost formation on the filn's surface. Longer frosting interval. Easy access and cleaning.

Tube material: Stainless steel, Aluminum      Fin material: Aluminum

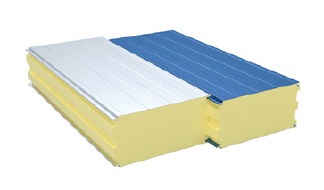

Insulated enclosure

Continuous PIR panel fabrication line from German Hennecke.

50mm to 250mm thick.

Limited combustibility. Fully welded stainless steel enclosure available as option.

Fully welded floor

Modular stainless steel fully welded floor, leak proof.
Sloped floor, fast drainage through four drains at the corners. Easy Access.

Air Flow Design

 The cold and high velocity air flow is guided with the air baffles evenly  through the product area. Minimum food dehydration, best heat transfer. Air shrouds provided to minimize cold loss at the opening of infeed and    outfeed. Spacious access inside freezer for maintenance andcleaning personnel.

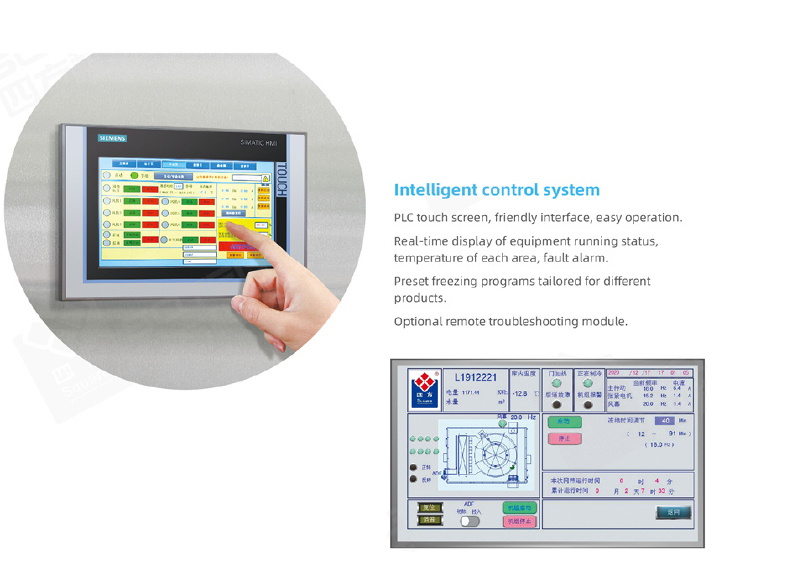

Intelligent Control System

PLC touch screen, friendly interface, easy operation. Real-time display of equipment running status, the temperature of each area, and fault alarm. Preset freezing programs tailored for different products. Optional remote troubleshooting module.

Intelligent, User-Friendly, Network

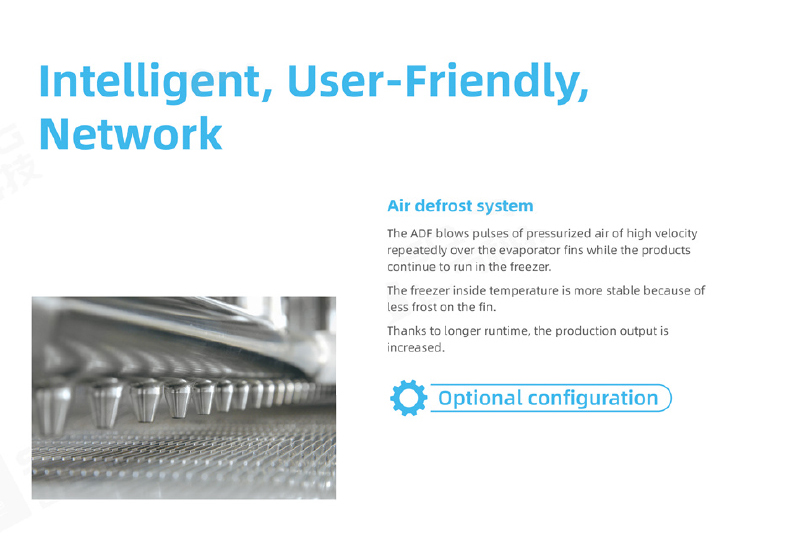

Air defrost system

The ADF blows pulses of pressurized air of high velocity repeatedly over the evaporator fins while the products continue to run in the freezer. The freezer inside temperature is more stable because of less frost on the fin. Thanks to longer runtime, the production output isincreased.

Optional configuration

Product Hot Sale



20 years focus on innovative solution in ice making and cooling technology

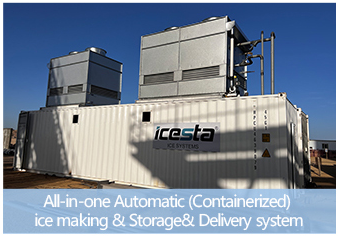

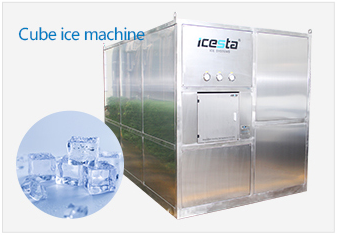

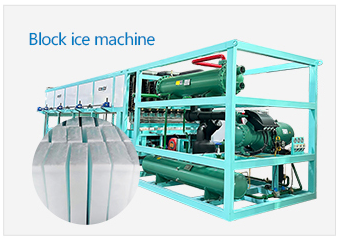

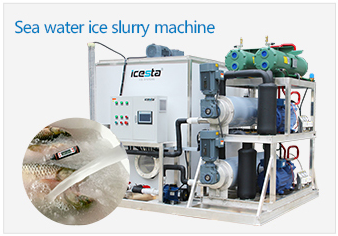

Shenzhen Brother Ice System Co., Ltd. ( ICESTA Brand), a well-known ice machine manufacturer and industry leader and pioneer in China.The product covers flake ice /Block ice machine, Tube ice /slurry ice/plate ice/cube ice machines, water chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc
