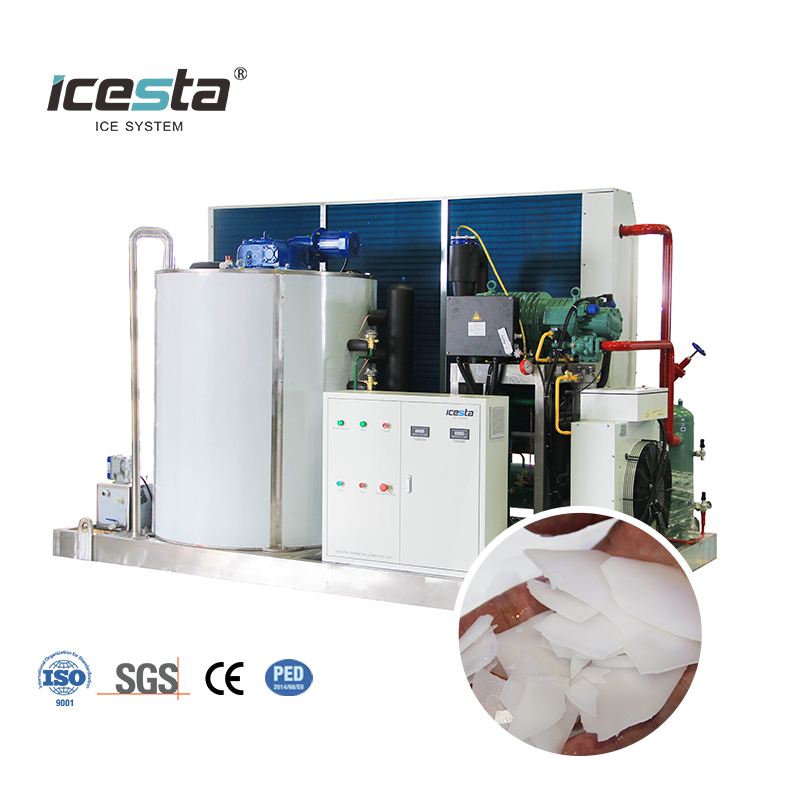

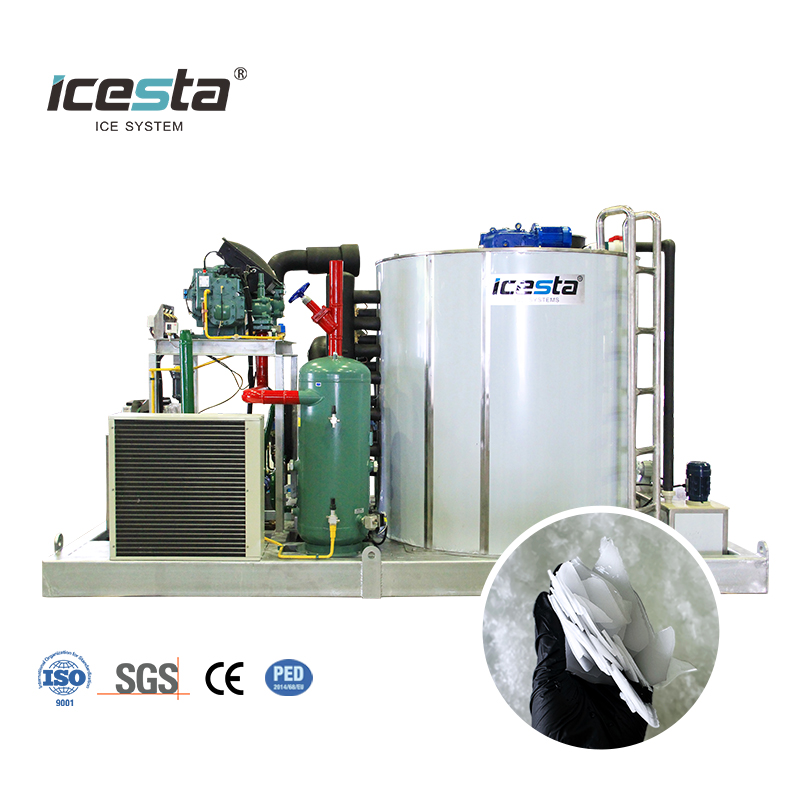

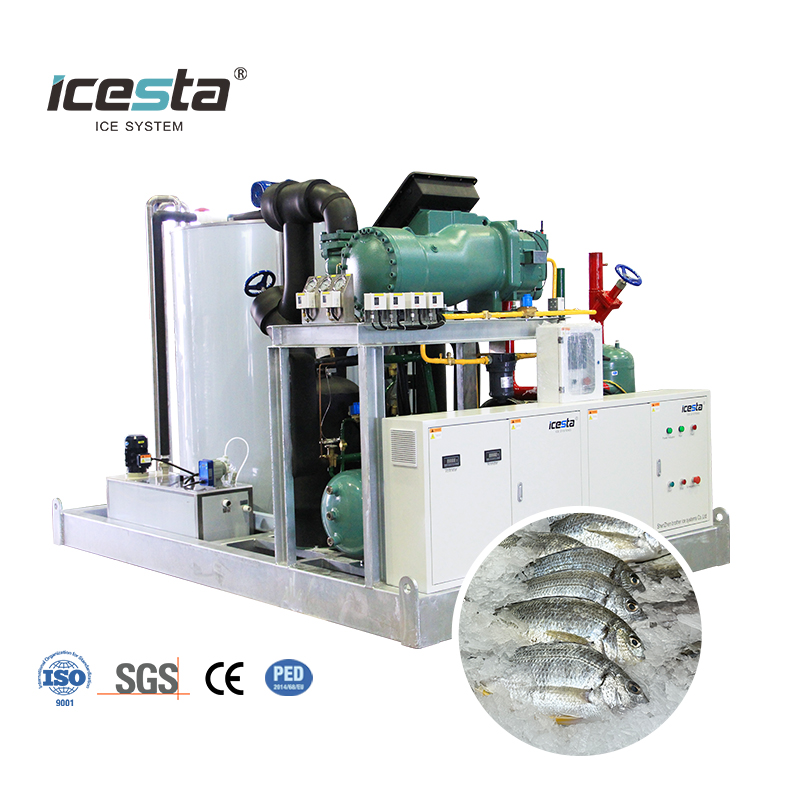

Industrial flake ice machine 20-30

INDUSTRIAL FLAKE ICE MACHINE 20-30

EXQUISITE CRAFTSMANSHIP MAKES TOP-NOTCH ICE MACHINE,

High reliability ,Customized,100% Ice Production,15+ Years Lifespan,Exported to 80+ Countries.

· TECHNICAL PARAMETERS

*The technical data based on 25°C ambient temp.20°C water inlet temp

* Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional

* The ice thickness：1.6-2.3mm

* Refrigerant: R404A(R22 R17 R507 is optional)

Model	IF20T-R4A	IF25T-R4A	IF30T-R4W
Ice production	20t/24hrs	25t/24hrs	30t/24hrs
Cooling capacity	128.4kw	156.3kw	181.6kw
Evaporation temperature	-20°C	-20°C	-20°C
Condensing temperature	40°C	40°C	40°C
Input total power	73.56kw	93.66kw	112.28kw
Compressor power	59.7kw	79.8kw	93.2kw
Pump power	0.75kw	0.75kw	1.5kw
Reducer power	0.75kw	0.75kw	1.1kw
Unit size	4000*2100*2200mm	4000*2100*2450mm	5600*2100*2450mm
weight	4160KG	4960KG	5380KG

· SHOW DETAILS

All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.

· DRAWING DISPLAY

The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.

20T flake ice machine

3D drawings

· ADVANTAGE

Advantages of ICESTA flake ice machine

The ICESTA series of flake ice machines are the first dynamic process intelligent control system (touch screen) in the industry in our country, which can remotely control the system touch screen, so that the running status of the ice machine can be displayed through touch, and it can quickly search for problem solutions to make the ice machine human Make a more perfect breakthrough.

ICE FLAKER Generator (evaporator)

· Prominent Heat treatment to avoid any SRINKAGE

· TOP welding testing technics with X-RAY——Never leak



Intellectualized PLC controller with touch-screen

· All failure record & instant solution available

· Stop-time setting at will.

· different languages version

Elaborate details design gives all-sided convenience

· Remote small touch-screen control

· Sufficient ice output



· APPLICATION INDUSTRY

More and more Coling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.

· AUXILIARY EQUIPMENT

Fully automatic system "storage" and "ice delivery" integration project

ENGINEERING CASE

30T flake Ice Plant & 50T Auto Storage,

Humpty Doo Baramundi Australia

Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions

· PICTURE DISPLAY

Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful

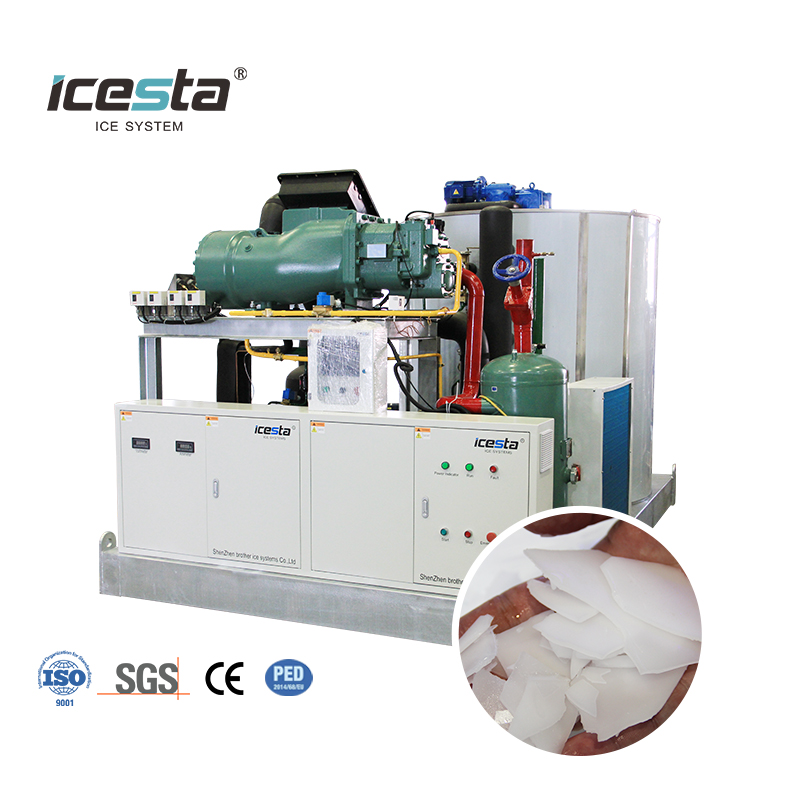

20 tons front view

25 tons front view

25 tons rear view

30 ton map
