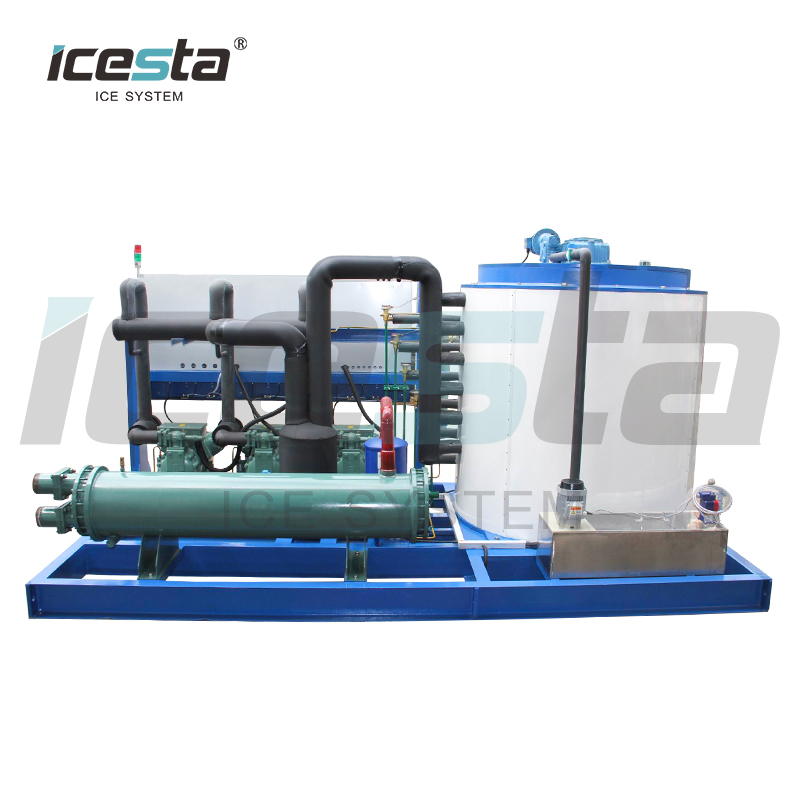

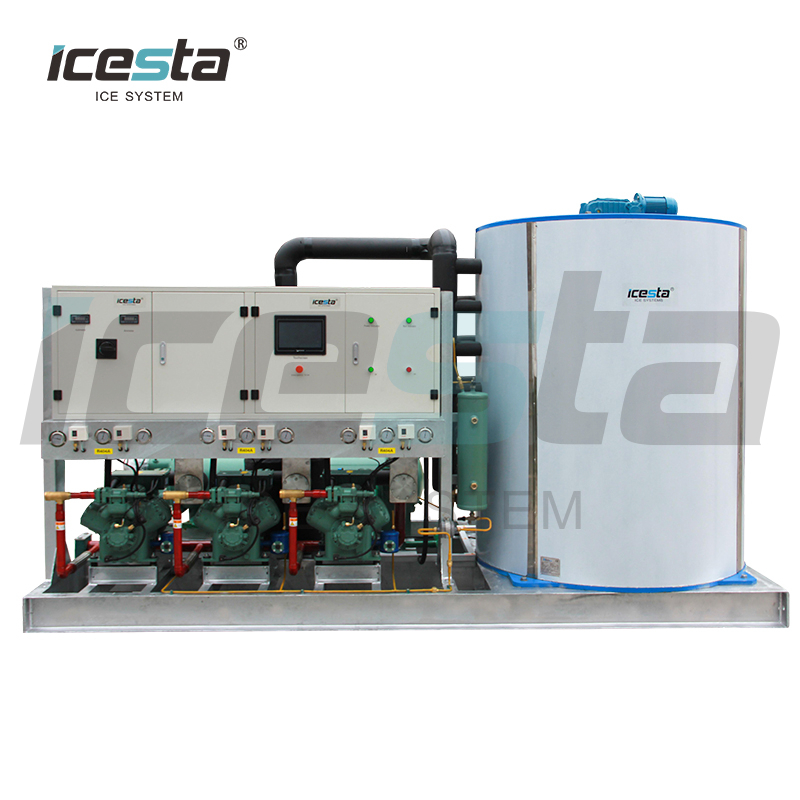

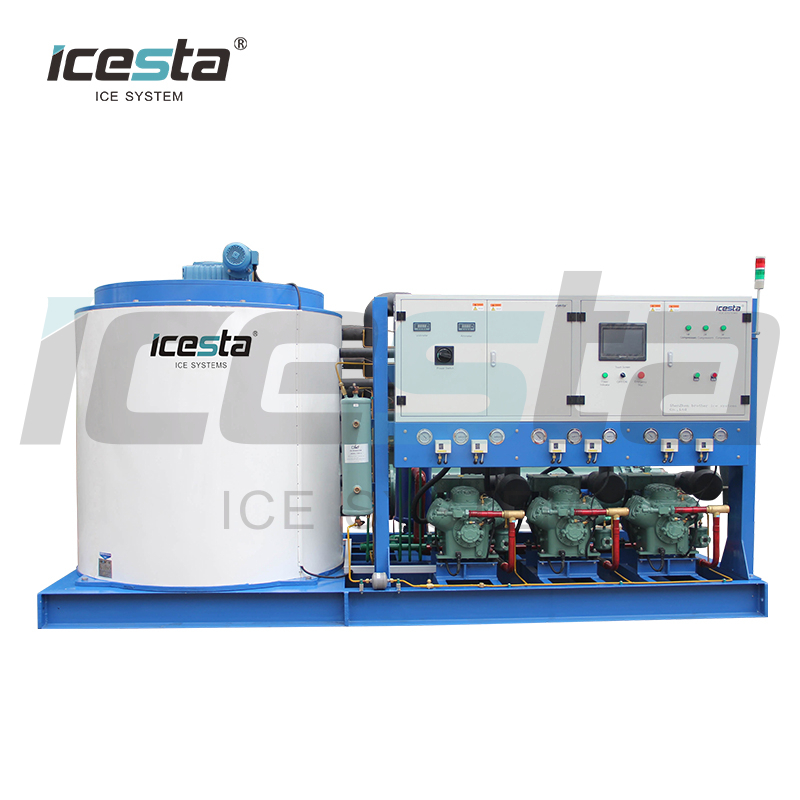

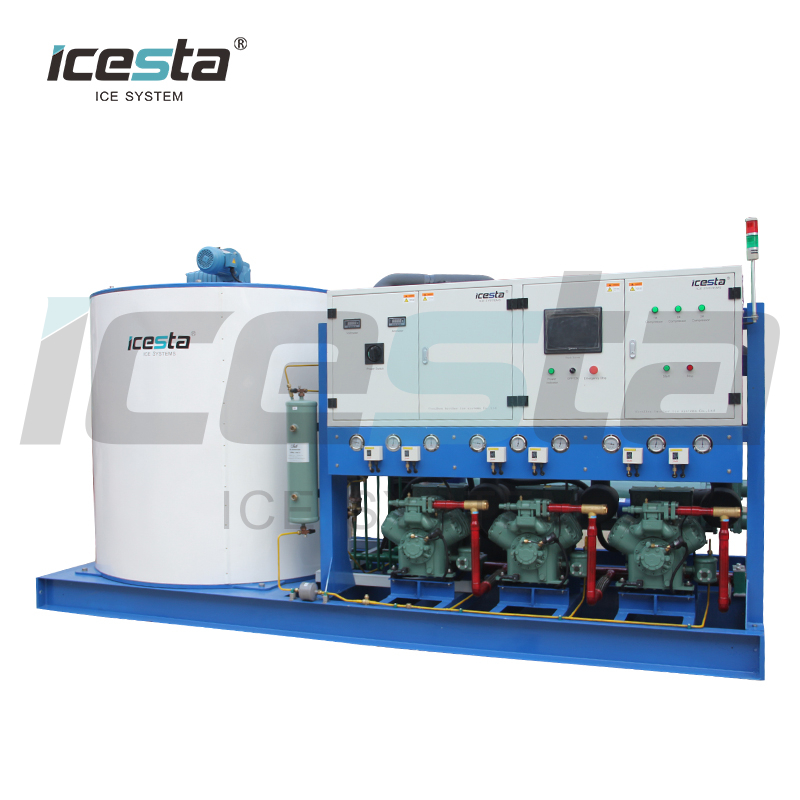

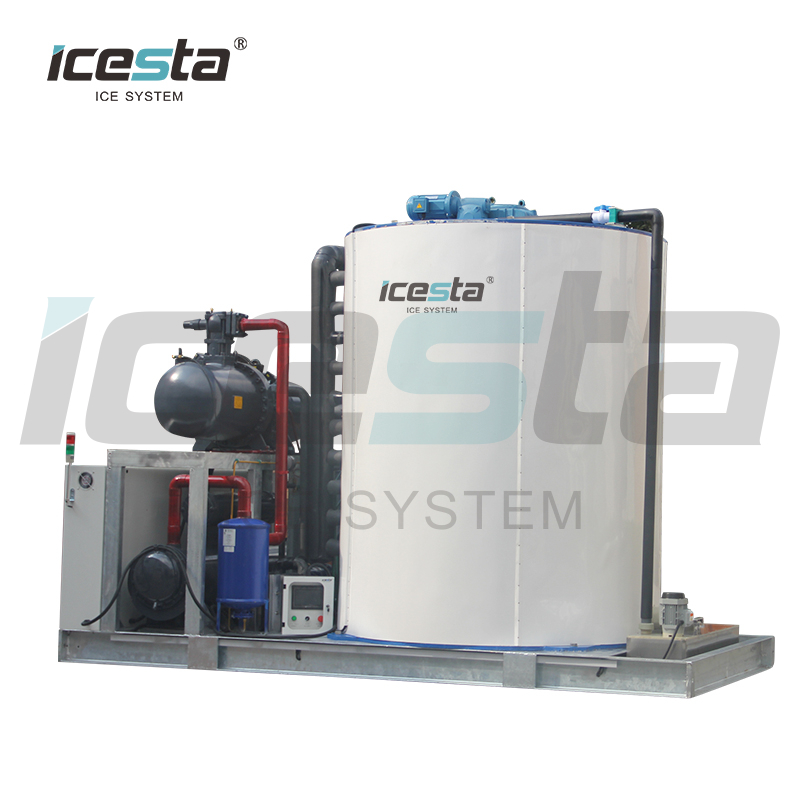

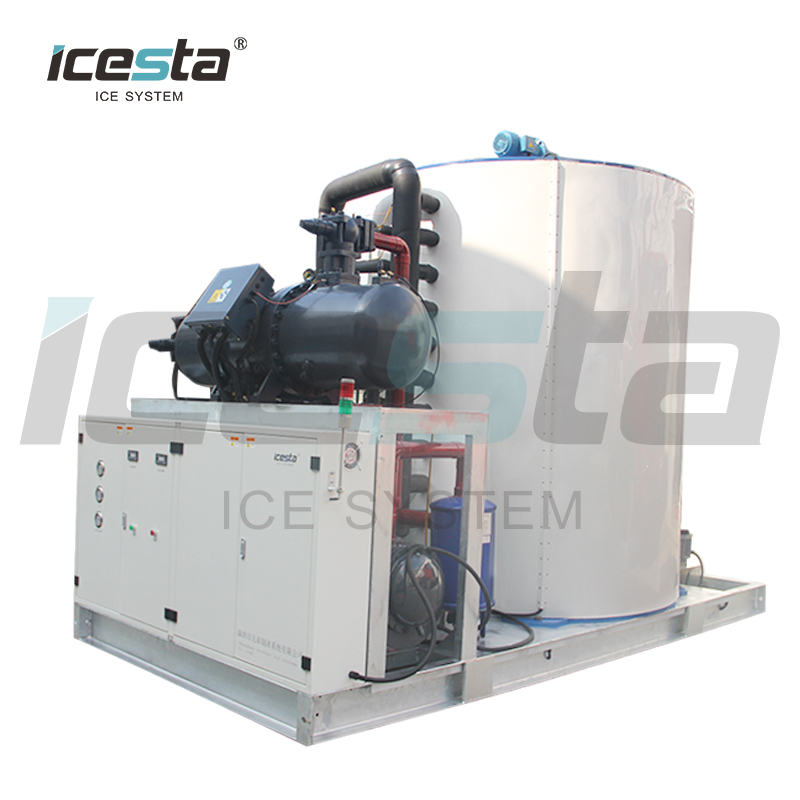

Strong Durability 20tons Industrial Commercial ice making Flake ice machine ice maker

Strong Durability 20tons Industrial Commercial ice making Flake ice machine ice maker


Availability:

Quantity:

Inquire Add to Basket

CATEGORY:
Ice Making System

Product Description

Icesta Provide a complete type of flake ice machine, from min daily capacity 300kg per day to 40 ton per day(as a container room limit) per set, welcome inquire!

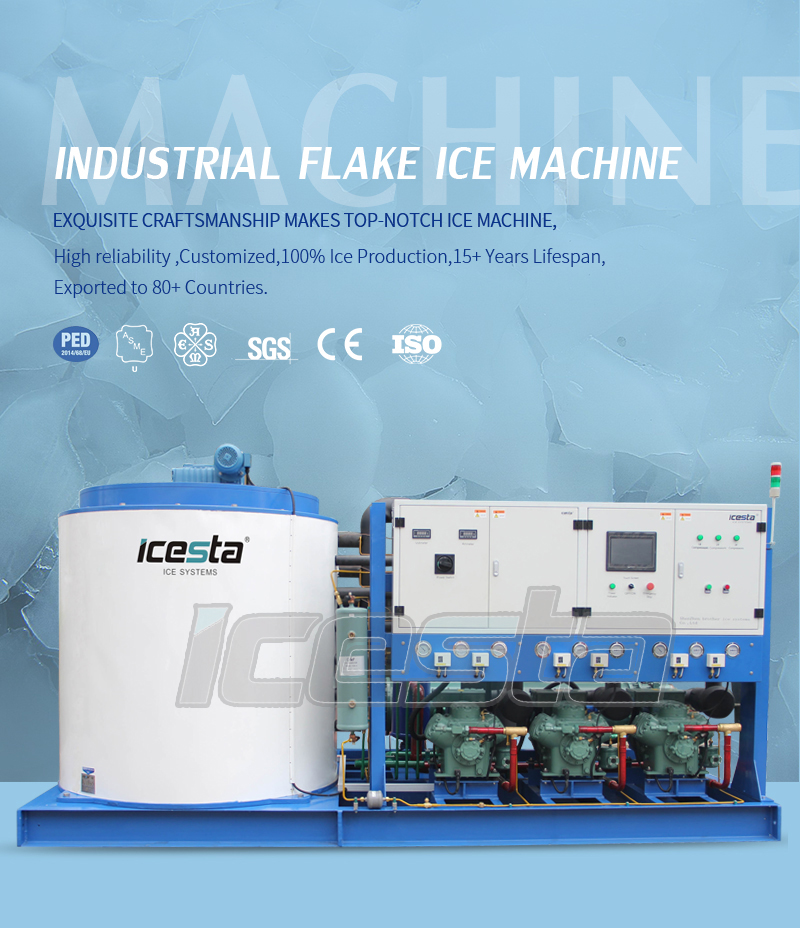

1 20 tons flake ice

· TECHNICAL PARAMETERS

*The technical data based on 25°C ambient temp.20°C water inlet temp

* Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional

* The ice thickness：1.6-2.3mm

* Refrigerant: R404A(R22 R17 R507 is optional)

20t，25t，30t/24h

Model	IF20T-R4A	IF25T-R4A	IF30T-R4A
Ice production	20t/24hrs	25t/24hrs	30t/24hrs
Cooling capacity	128.4kw	156.3kw	181.6kw
Evaporation temperatur	-25°C	-25°C	-25°C
Condensing temperature	40°C	40°C	40°C
Input total power	73.56kw	93.66kw	40.81kw
Compressor power	59.7kw	79.8kw	31.8kw
Pump power	0.75kw	0.75kw	0.75kw
Reducer power	0.75kw	0.75kw	0.75kw
Condenser fan powe	12.36kw	12.36kw	16.48kw
Unit size	400021002200mm	400021002450mm	560021002450mm
weight	4160kg	4960kg	5380KG

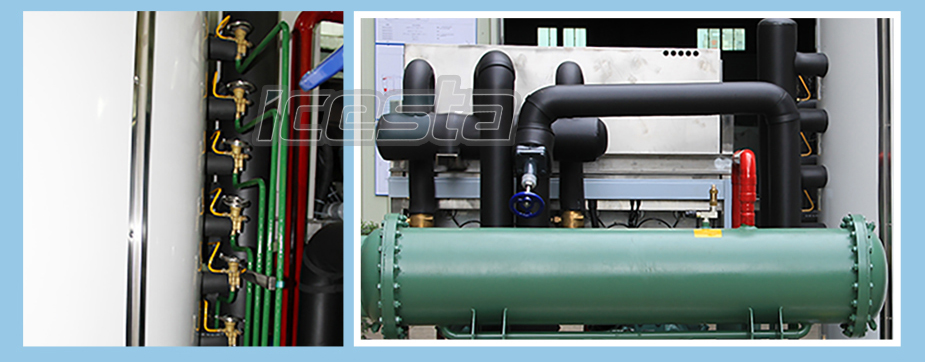

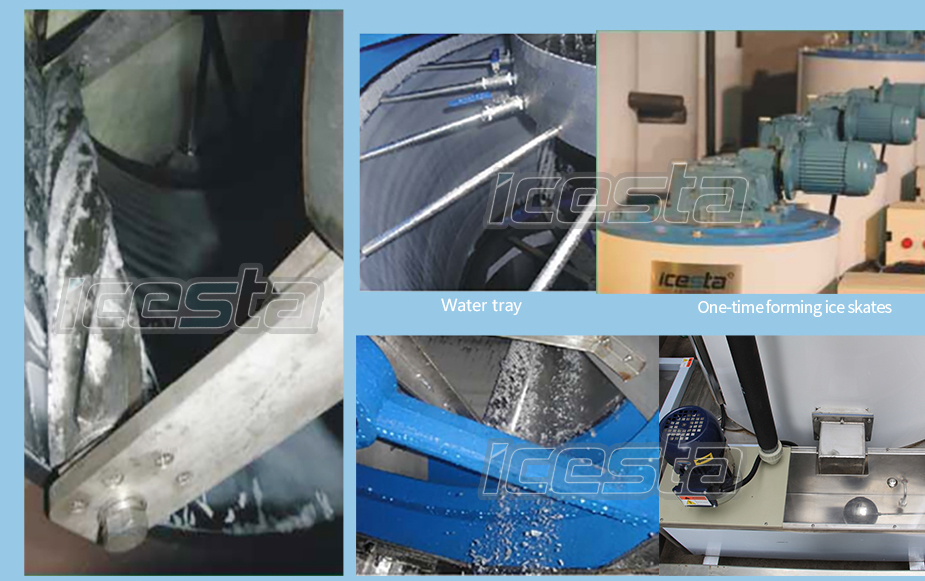

· SHOW DETAILS

All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.

flake ice making machine 未标题_07

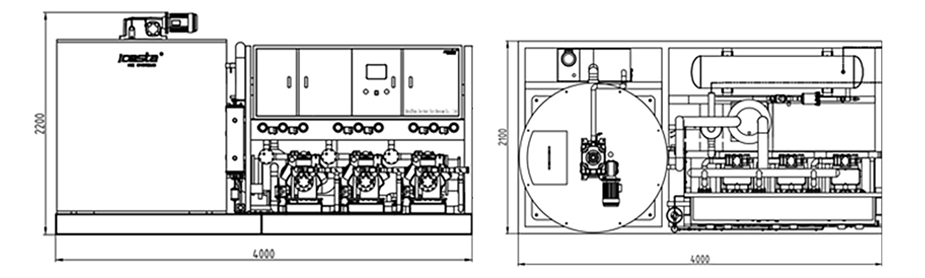

· DRAWING DISPLAY

The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.

未标题_09

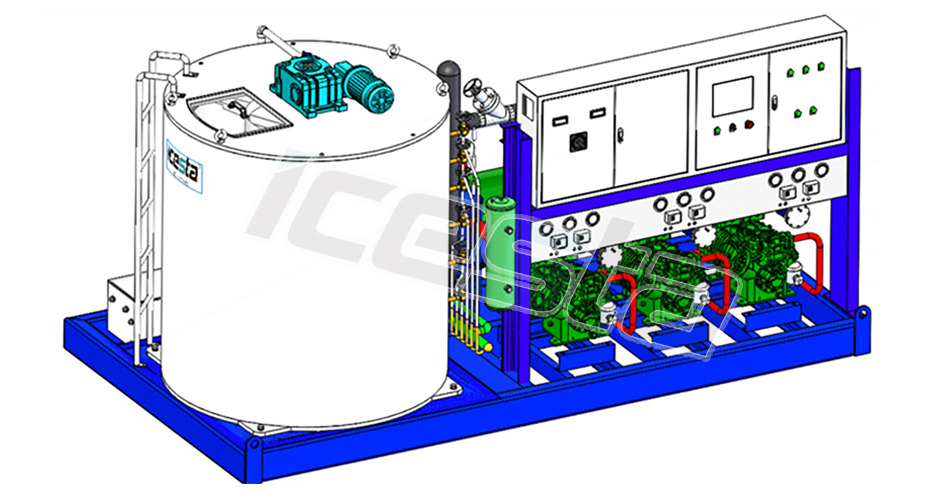

20T flake ice machine

3D drawings

未标题_11

· ADVANTAGE

Advantages of ICESTA flake ice machine

The ICESTA series of flake ice machines are the first dynamic process intelligent control system (touch screen) in the industry in our country, which can remotely control the system touch screen, so that the running status of the ice machine can be displayed through touch, and it can quickly search for problem solutions to make the ice machine human Make a more perfect breakthrough.

ICE FLAKER Generator (evaporator)

· Prominent Heat treatment to avoid any SRINKAGE

· TOP welding testing technics with X-RAY——Never leak

未标题_14

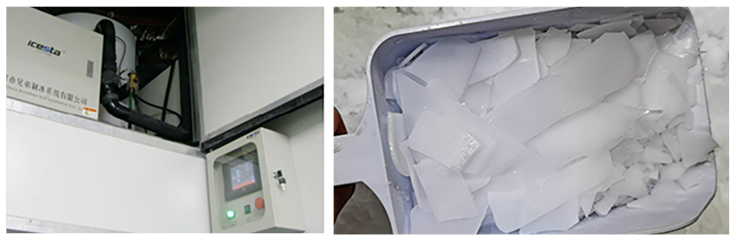

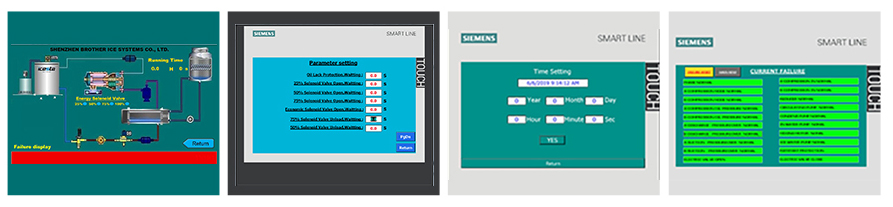

Intellectualized PLC controller with touch-screen

· All failure record & instant solution available

· Stop-time setting at will.

· different languages version

未标题_17

Elaborate details design gives all-sided convenience

· Remote small touch-screen control

· Sufficient ice output

· APPLICATION INDUSTRY

More and more Coling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.

未标题_20 未标题_23

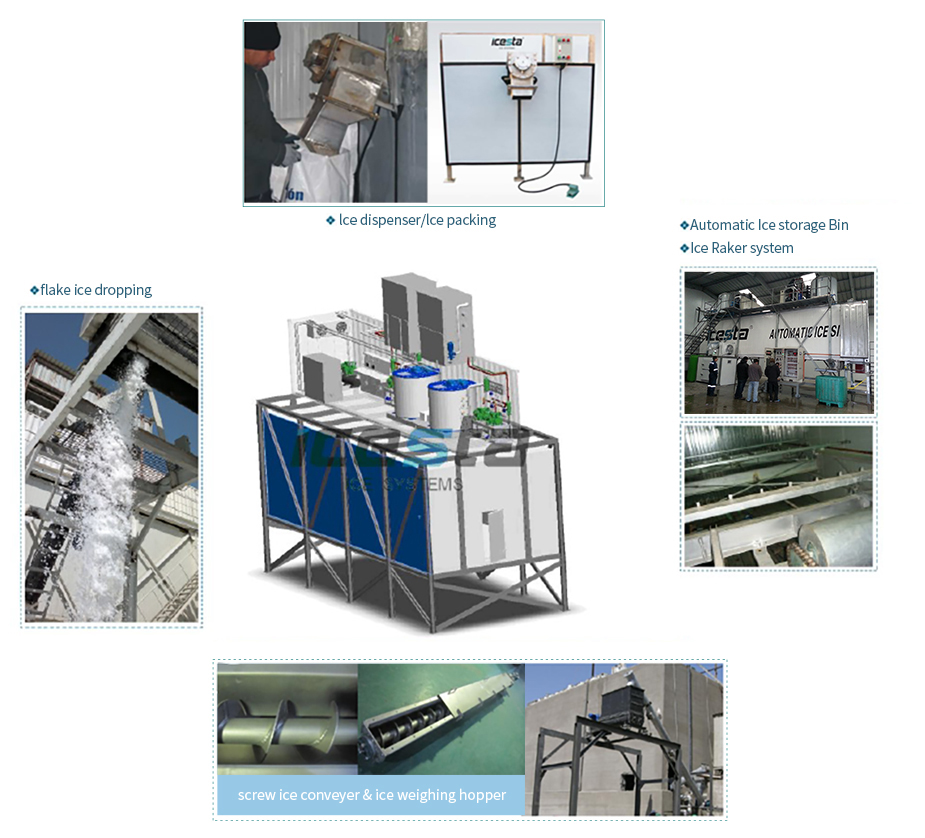

· AUXILIARY EQUIPMENT

Fully automatic system "storage" and "ice delivery" integration project

未标题_25

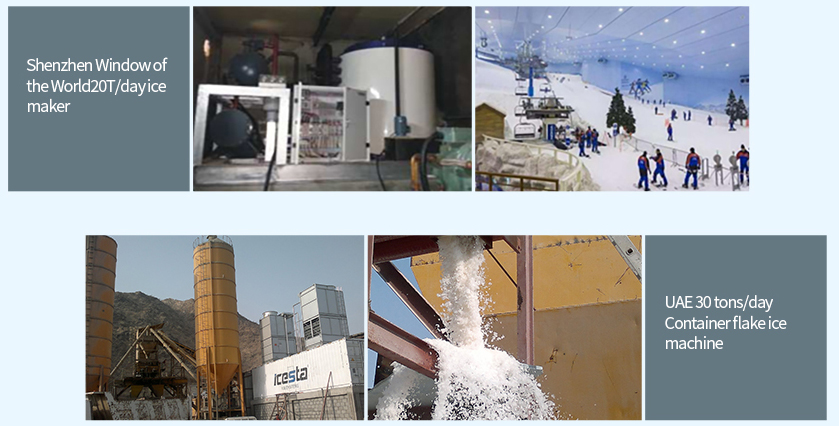

ENGINEERING CASE

30T flake Ice Plant & 50T Auto Storage,

Humpty Doo Baramundi Australia

未标题_32

Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions

FAQ

1.Installation & commissioning

A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.B. Installed by ICESTA engineers.a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all installations and commissioning.b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars 100 per engineer per day.c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.

2.Failure Claim procedures

a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure.b. Relevant pictures are required for failure confirmation.c. ICESTA engineering and after-sales service team will check and form a diagnosis report.d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures

3.Questions before quotation

A. Would you make ice from seawater, saltwater or freshwater?B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?C. What’s the power supply?D. What is the application of the flake ice produced?E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?

Advantages

1.Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.365 days X 7 X 24 hours phone / EMAIL assistance

2.Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.

3.Permanent technical support & consultation all life long for the machines.

4.ICESTA provide full technical support and training courses after equipment installation and commissioning.
