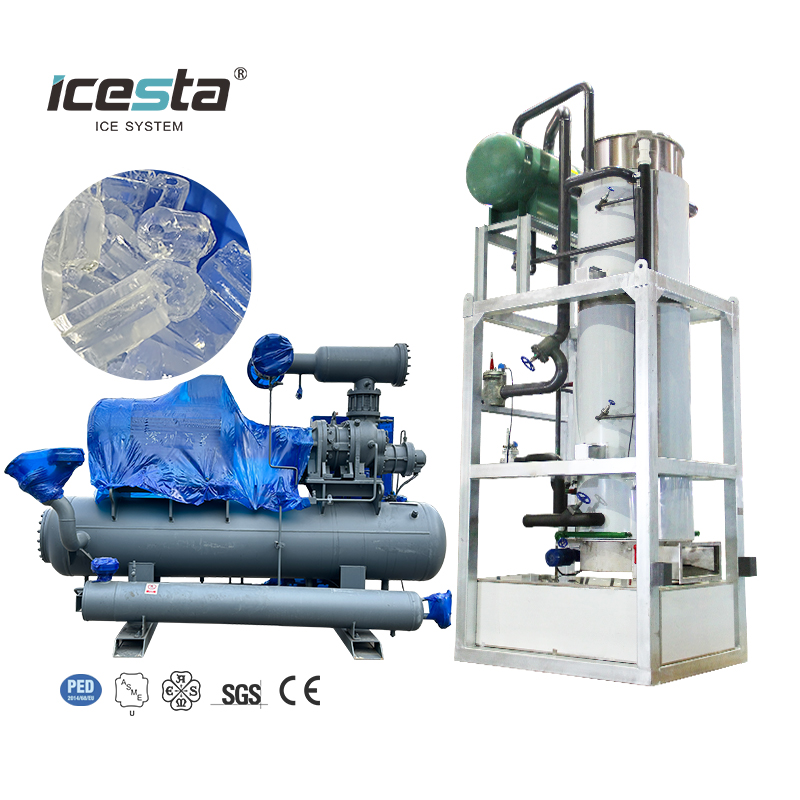

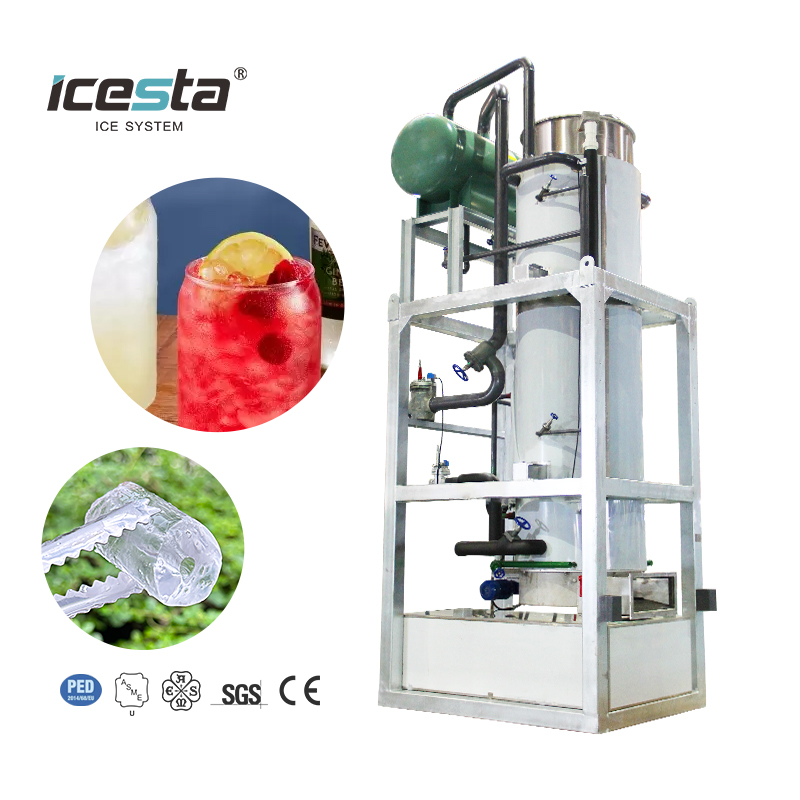

Icesta 50 Ton Stainless Steel Ice Tube Maker Machine, High Productivity, Long Service Life

Icesta 50 Ton Stainless Steel Ice Tube Maker Machine, High Productivity, Long Service Life


Availability:

Quantity:

Inquire Add to Basket

Model:
IT50T-R2E
Brand:
ICESTA
CATEGORY:
Ice Making System

Product Description

Product Introduction

ICESTA is providing the world Excellent Tube ice solutions with high ice output, reliable performance and humanization design.

Tube ice is in the shape of crystal and powderless tubes. Comprared with flake ice, the melting time of tube ice is longer, and it is more suitable for cooling in an unisulated environment. Tube ice is comparatively solid and less prone to ice lumps, so it is more suitable for long distance delivery.

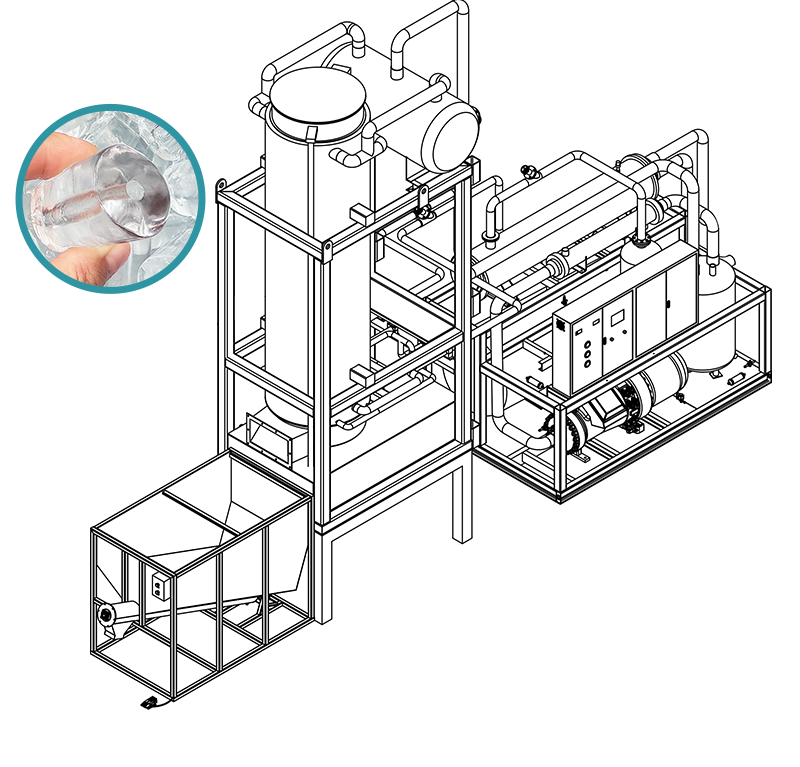

未标题-1_04
未标题-1_02

Application Industry

ICESTA is providing the world Excellent Tube ice solutions with high ice output, reliable performance and humanization design.

未标题-1_05

Technical Parameters

* The technical data based on 30°Cambient temp.20°Cwater inlet temp

* The evaporating / condensing temp.:-15C/40°C(Air-coole) 38°C(Water cooled)

* Power supply: 3P/380V/50HZ(3P/220/60HZ,3P/380V/60HZ,3P/460V/60HZ Optional)

* Refrigerant: R404A(R22 R17 R507 is optional)

* Ice tube diameter: Φ22,Φ29,Φ35,Φ42 is optional

40t，50t，60t/24h

Model	IT40T-R2E	IT50T-R2E	IT60T-R2E
Ice output	40t/24hrs	50t/24hrs	60t/24hrs
Ice tube diameter	Φ35	Φ22/29/35	Φ29
Cooling capacity	300.1kw	401kw	525.3kw
Input power	119.4kw	95.4kw	86.2kw
Compressor input power	105.2kw	151.7kw	202.8kw
Ice cut reducer input power	1.1*2kw	1.5kw	1.5kw
Water pump input	1.85*2kw	3kw	3kw
Weight	7200KG	8400KG	9600KG
Unit size	282021002100mm	350022002360mm	390018102010mm

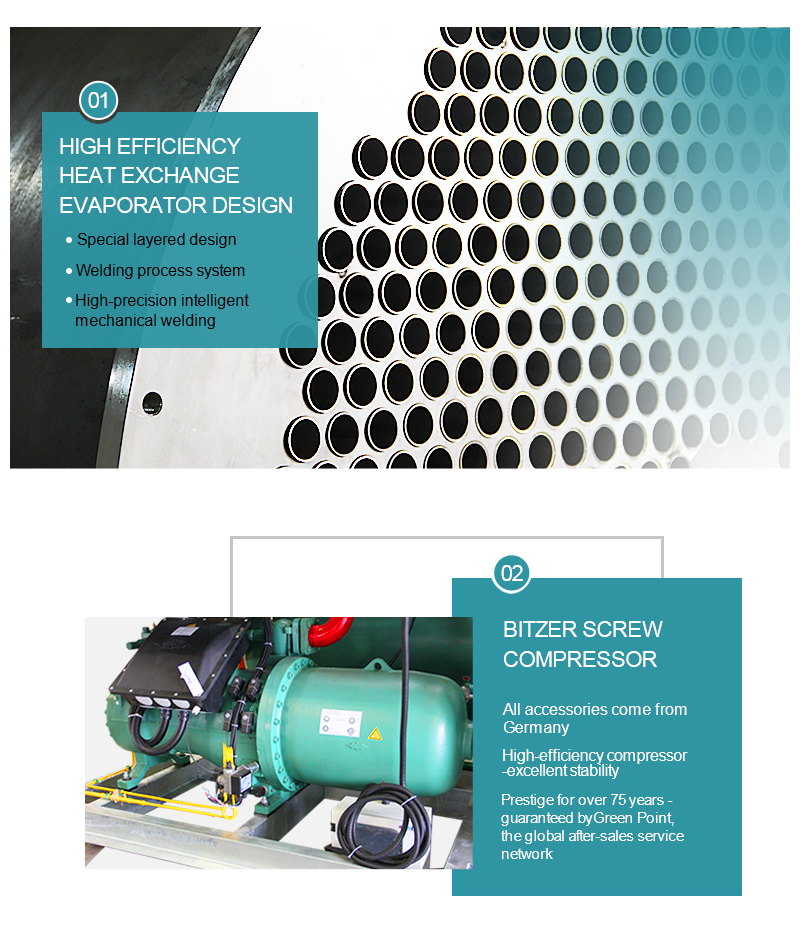

Features at a glance

Why Choose ICESTA?

Innovative Technology & Superior Design
1.Our expert R&D team integrates cutting-edge refrigeration technology to minimize energy consumption.
2.Proprietary ice-defrosting design ensures optimal performance and efficiency.
3.Patented evaporator process enhances ice production quality and reliability.
4.Specially engineered ice cutter delivers consistent, high-quality tube ice.

Reliable Global Support

1.Customizable ice sizes to meet diverse industry needs.
2.Localized after-sales teams in key regions for prompt service.
3.Worldwide installation and technical support for seamless operation.

User-Friendly Operation

Fully automated system for hassle-free control.
Simplified installation, operation, and maintenance for maximum convenience.

ICESTA combines innovation, durability, and global service to deliver the ultimate tube ice solution.

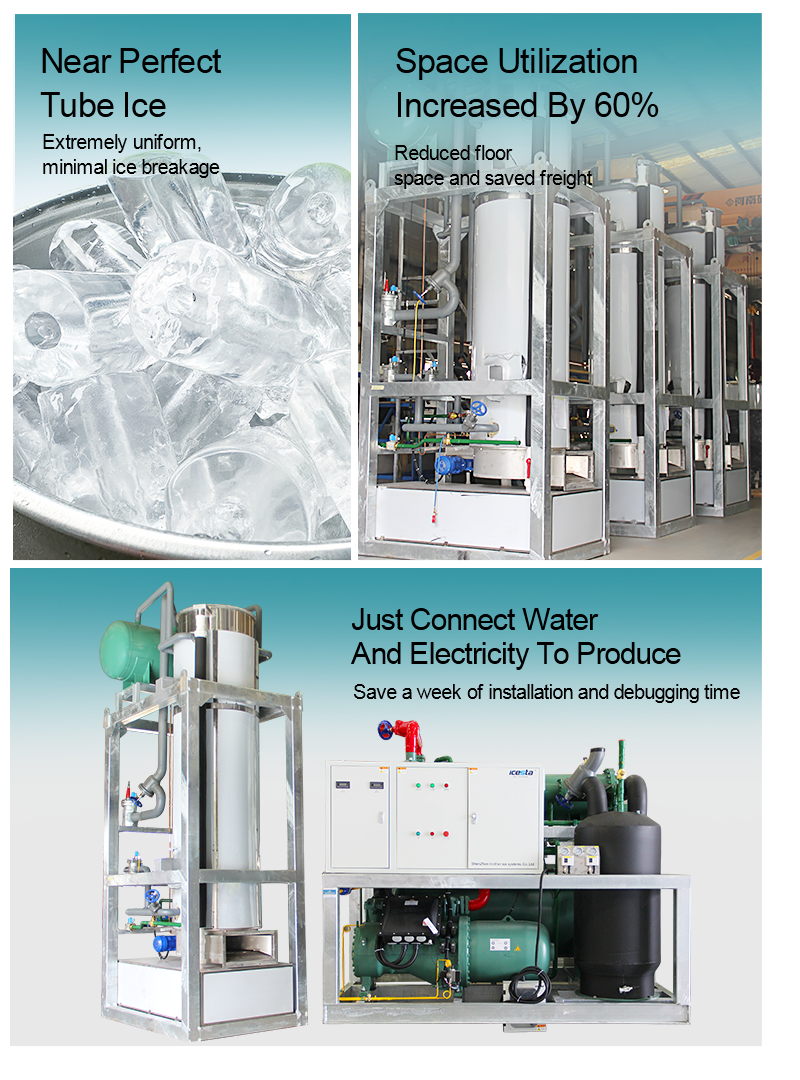

未标题-1_07

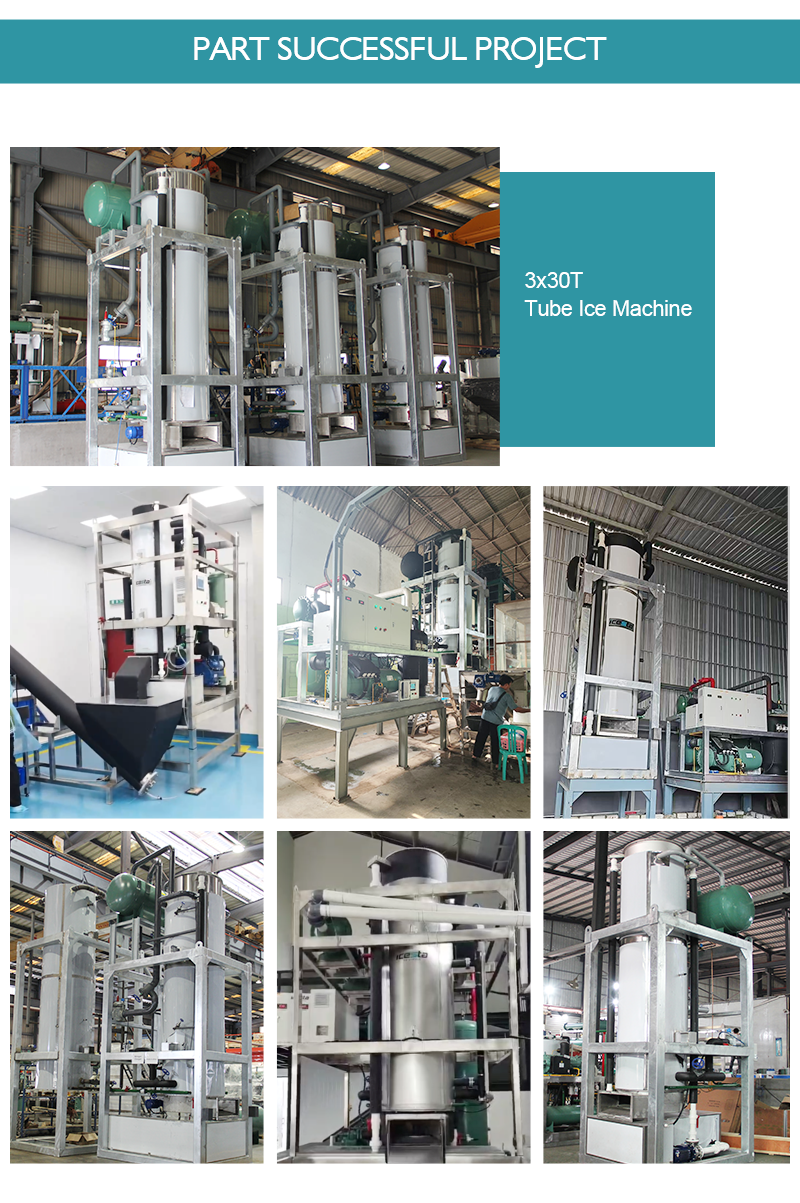

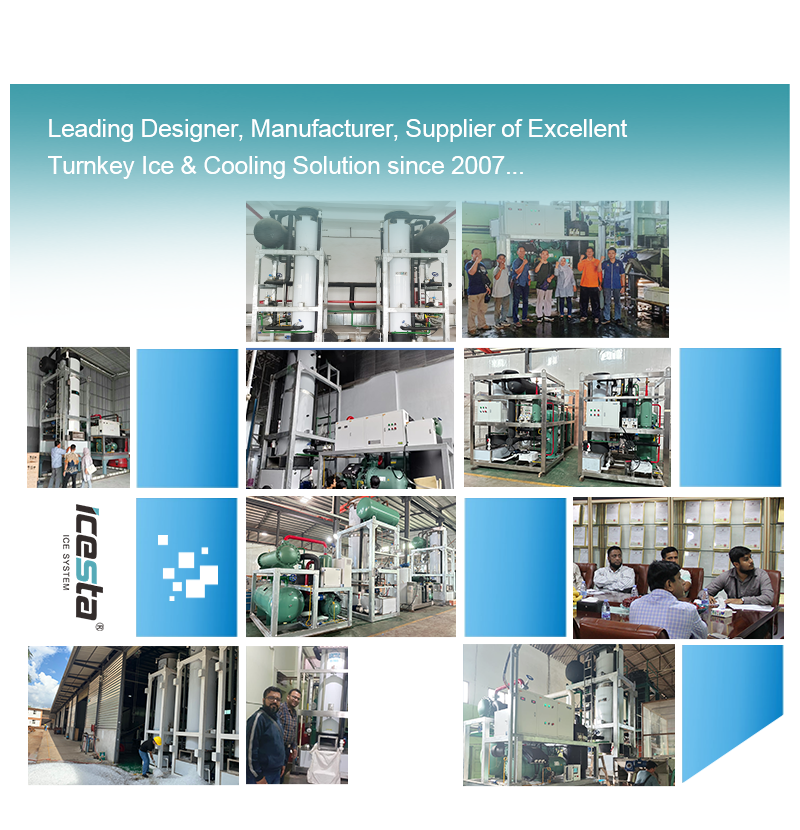

Engineering Case

未标题-1_08

FAQ

FAQ (Frequently Asked Questions)

1. Questions before quotation
A. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What’s the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?

2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars
100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.

3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance

4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed
description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
