Industrial 15 Ton Per Day Flake Ice Machine

Industrial Compressor for R404 Flake Ice Machine 15 Ton

EXQUISITE CRAFTSMANSHIP MAKES TOP-NOTCH ICE MACHINE,

High reliability ,Customized,100% Ice Production,15+ Years Lifespan,Exported to 80+ Countries.

· TECHNICAL PARAMETERS

*The technical data based on 25°C ambient temp.20°C water inlet temp

* Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional

* The ice thickness：1.6-2.3mm

* Refrigerant: R404A(R22 R17 R507 is optional)

Model	IF8T-R4A	IF10T-R4A	IF15T-R4W
Ice production	8t/24hrs	10t/24hrs	15t/24hrs
Cooling capacity	57.1kw	72kw	100.3kw
Evaporation temperatur	-20°C	-20°C	-20°C
Condensing temperature	40°C	40°C	38°C
Input total power	35.61kw	46.51kw	52.62kw
Compressor power	26.6kw	37.5kw	44.5kw
Pump power	0.37kw	0.37kw	0.37kw
Reducer power	0.75kw	0.75kw	0.75kw
Unit size	2200*1600*1870mm	3200*2000*2140mm	2200*2000*2410mm
weight	2600KG	2708KG	3480KG

· SHOW DETAILS

All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.One year of quality gurantee and lifetime service.

· DRAWING DISPLAY

The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.

10T flake ice machine

3D drawings

· ADVANTAGE

Advantages of ICESTA flake ice machine

The ICESTA series of flake ice machines are the first dynamic process intelligent control system (touch screen) in the industry in our country, which can remotely control the system touch screen, so that the running status of the ice machine can be displayed through touch, and it can quickly search for problem solutions to make the ice machine human Make a more perfect breakthrough.

ICE FLAKER Generator (evaporator)

· Prominent Heat treatment to avoid any SRINKAGE

· TOP welding testing technics with X-RAY——Never leak



Intellectualized PLC controller with touch-screen

· All failure record & instant solution available

· Stop-time setting at will.

· different languages version

Elaborate details design gives all-sided convenience

· Remote small touch-screen control

· Sufficient ice output



· APPLICATION INDUSTRY

More and more Coling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.

· AUXILIARY EQUIPMENT

Fully automatic system "storage" and "ice delivery" integration project

ENGINEERING CASE

30T flake Ice Plant & 50T Auto Storage,

Humpty Doo Baramundi Australia

Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions

· PICTURE DISPLAY

Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful

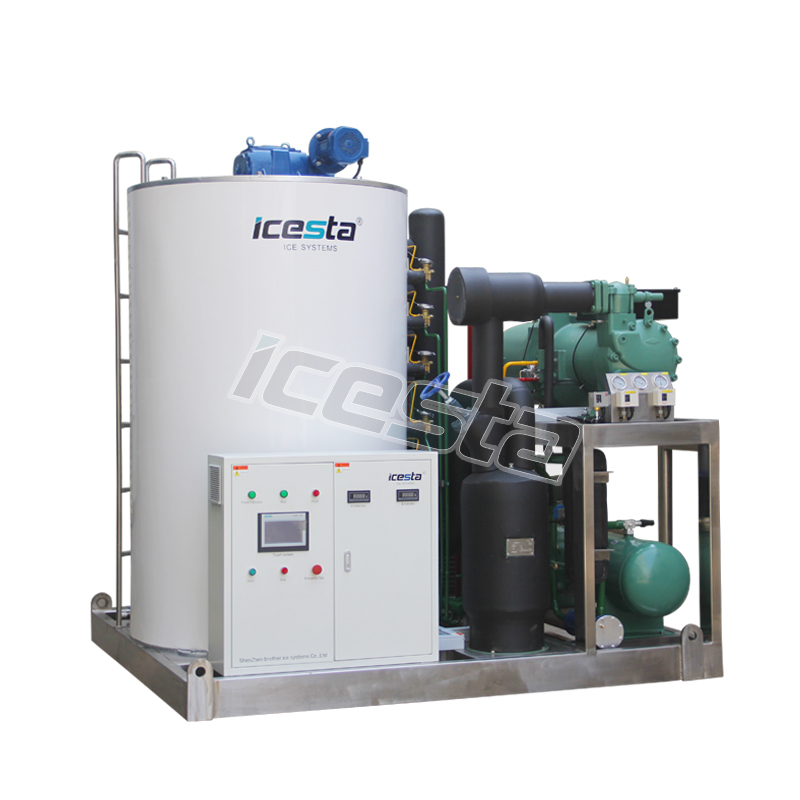

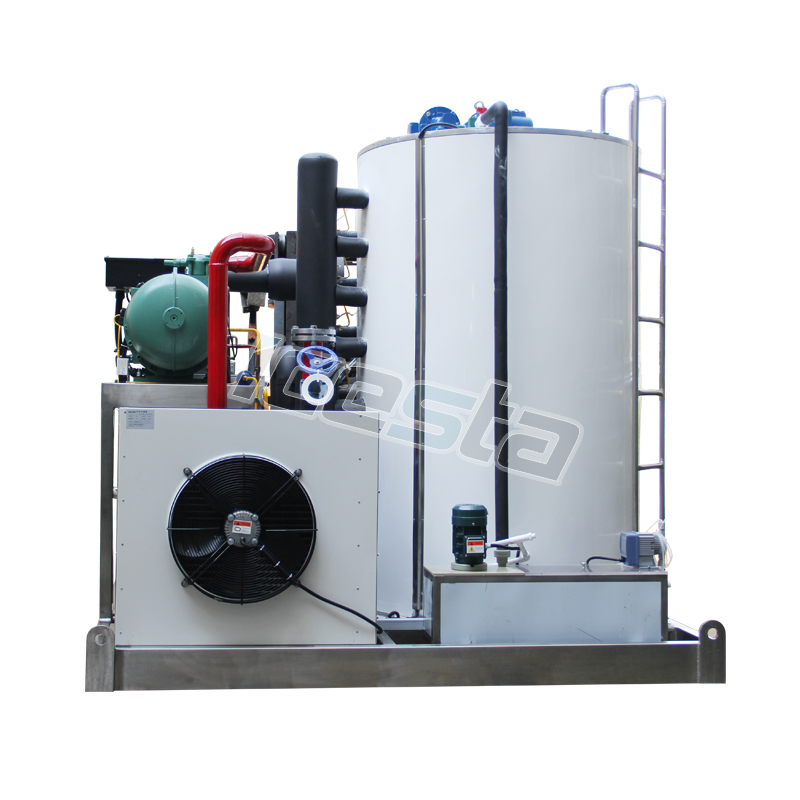

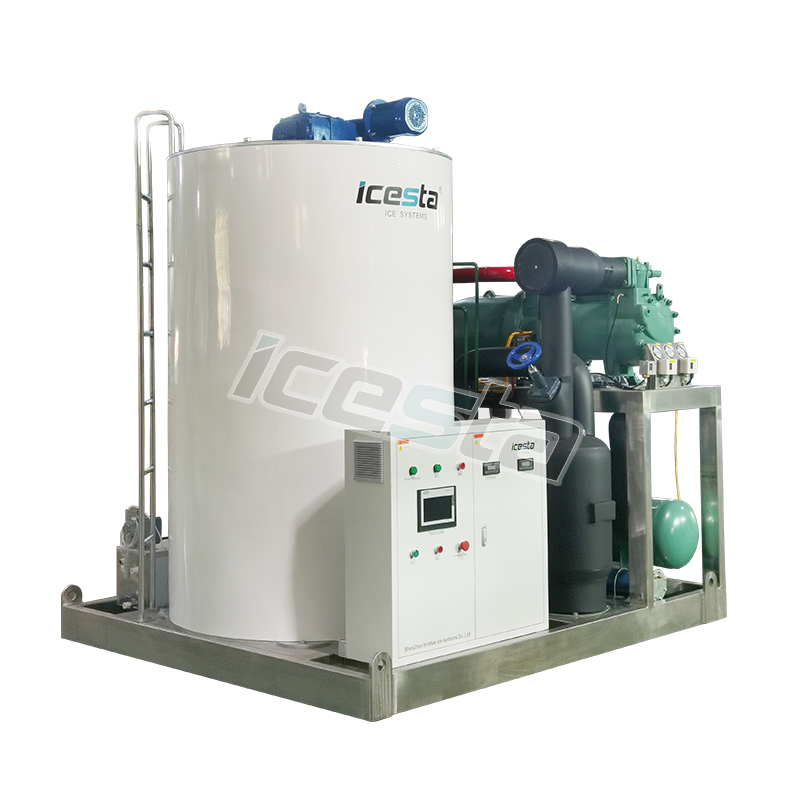

15T SIDE

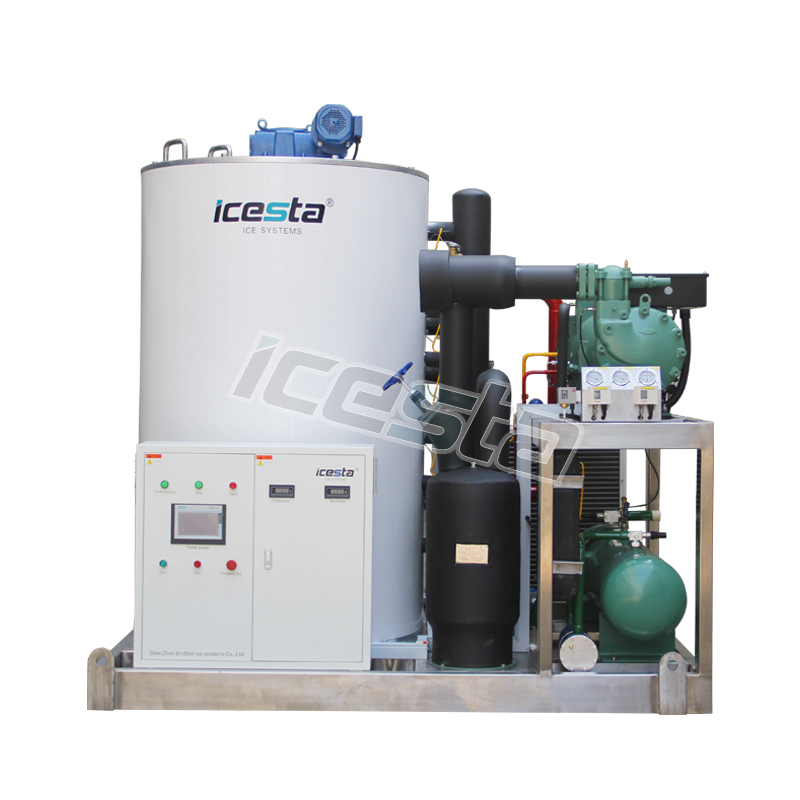

15T POSITIVE

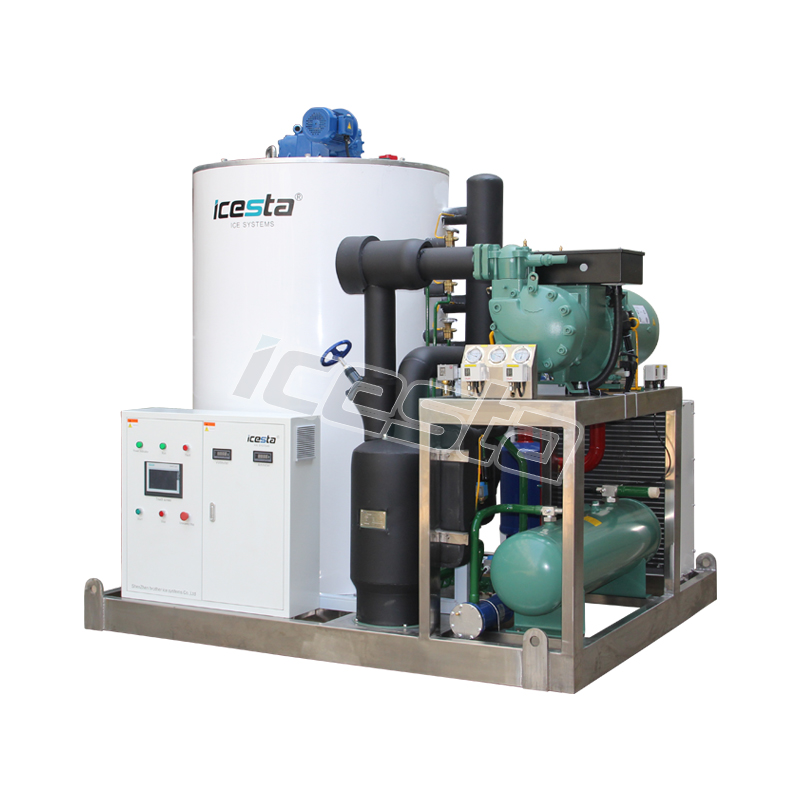

10T SIDE

10T BACK
