Reliable Global Support
1. Customizable ice sizes to meet diverse industry needs.
2. Localized after-sales teams in key regions for prompt service.
3. Worldwide installation and technical support for seamless operation.
User-Friendly Operation
Fully automated system for hassle-free control.
Simplified in stallation, operation, and maintenance for maximum convenience.

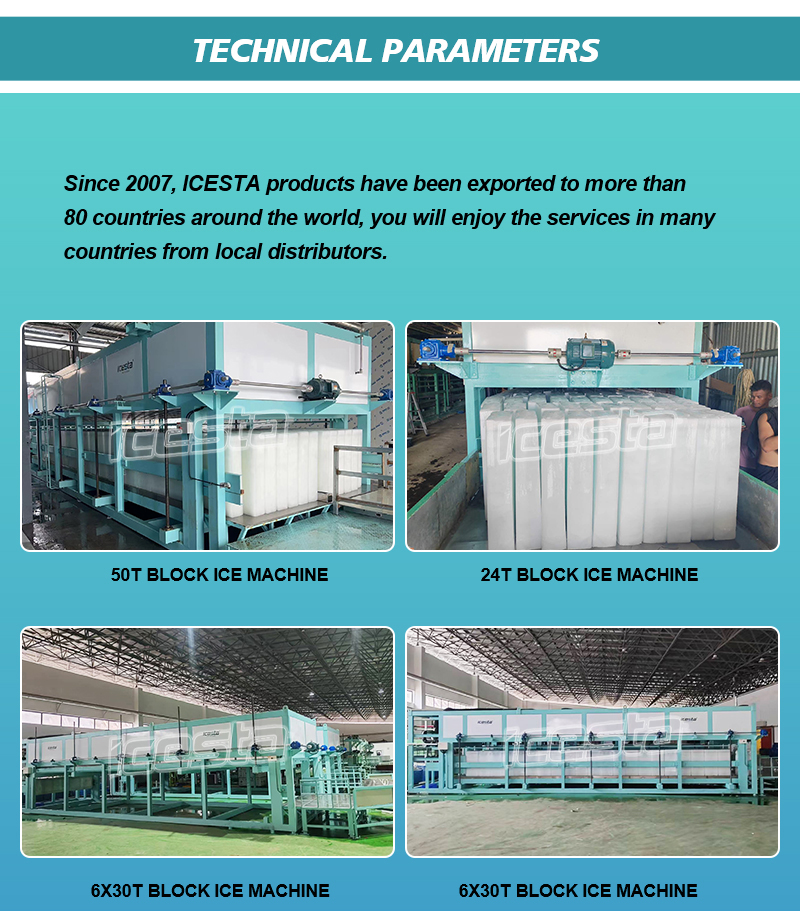

TECHNICAL PARAMETERS
* Ambient temperature 0°C-45°C, water temperature: ≤30°C
* Evaporation temperature: -15℃，Condensing temperature：40℃
* Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional
* Refrigerant：R22、R404A、R507A
* Ice weight：5KG-100KG
| model | ICB15T-R4W | ICB30T-R4W |
| Ice making capacity | 15t/24hrs | 30t/24hrs |
| Refrigerating capacity | 194kw | 345kw |
Compressor power | 86kw | 156kw |
Total power | 95kw | 174kw |
| Freezing time | 2 times a day | 2.5 times a day |
| Ice mold quantity | 108pcs | 341pc |
| Ice weight / piece | 70kg | 35kg |
| Ice mold size | 510*180*925mm | 320*140*925mm |
| Cooling type | Water cooling | Water cooling |
| Machine size | 10677*2796*2510mm | 12247*2816*2510mm(Ice making machine) 3750*2200*1860mm(Refrigeration unit |
* Experiences & History:
Decades of Team focus on innovative solution in Ice & Cooling technology.
Decadal Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.

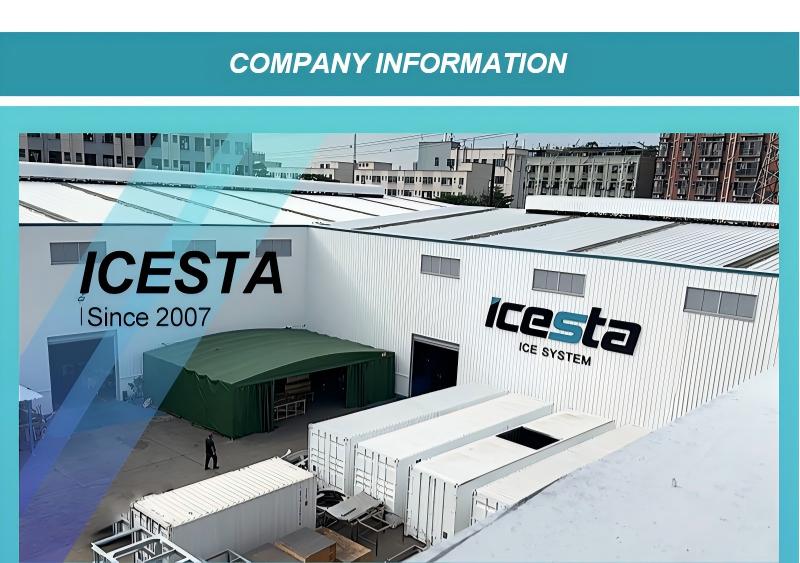

* Industry status& Reputation Top Ice Machine Brand in China. 20000 ㎡ Factory
ISO 9001, CE, PED, ASME (U.S ) Certificates etc
* Technology & Management capability: 100 + patents
High Technology enterprise Certificate
* Services & Global Net Export to 80+ countries Local service in 50+ countries with networks all over the world. 1-2 years warranty covers each component.
FAQ
FAQ (Frequently Asked Questions)
1. Questions before quotation
A. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What's the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?
2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars
100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.
3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance
4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
