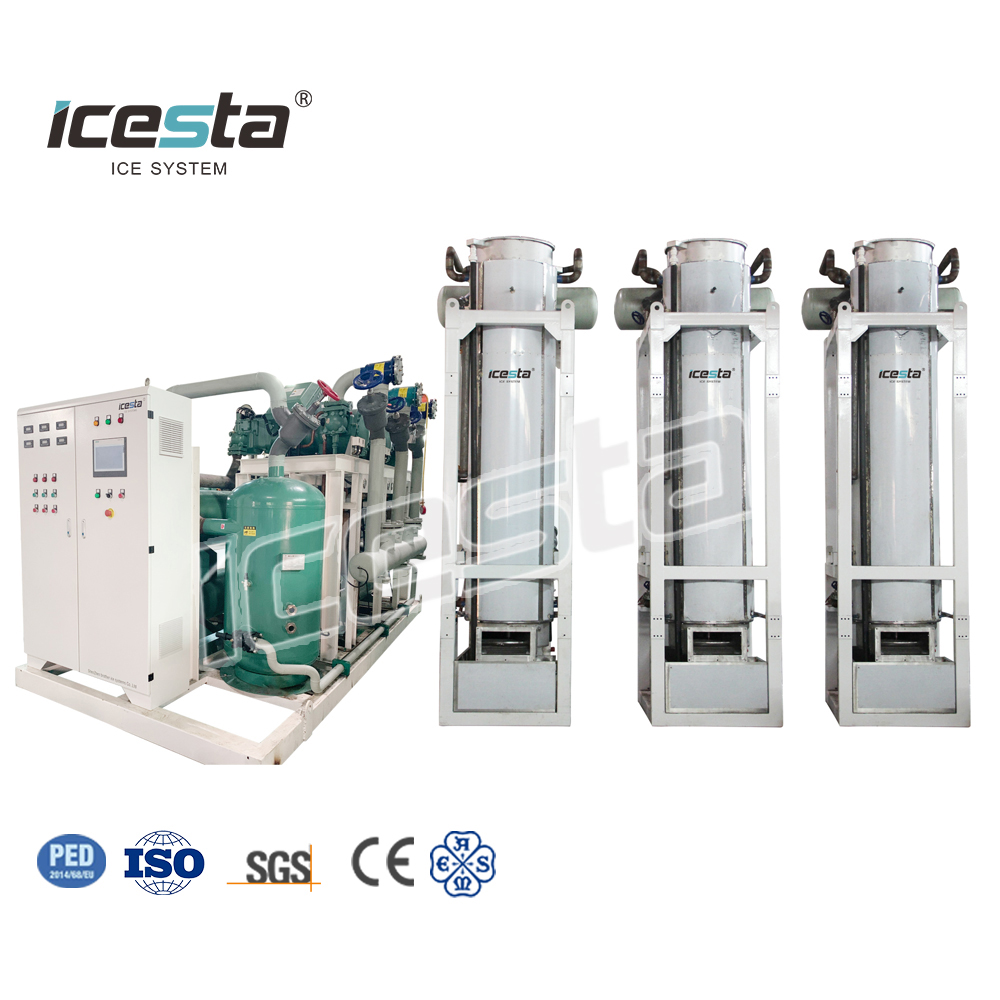

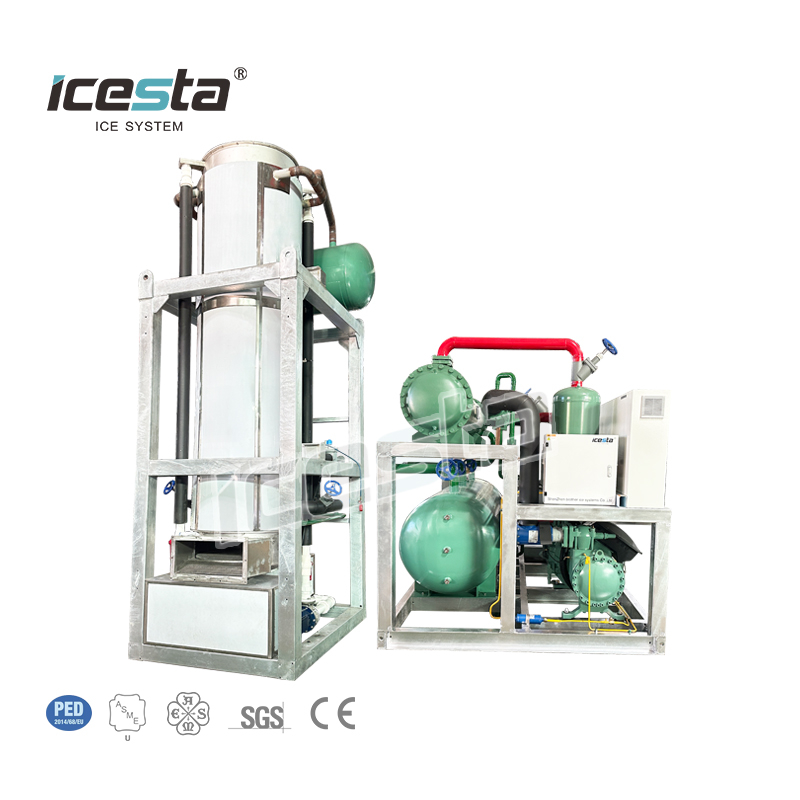

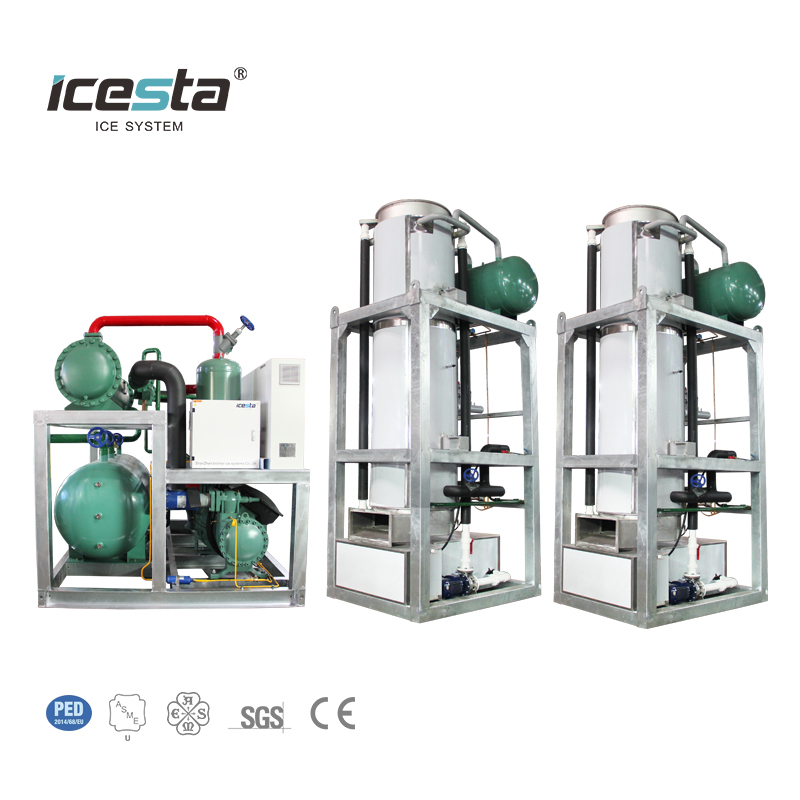

Icesta Automatic Edible Solid Ice Tube Maker Stainless Steel High Productivity Long Service Life 60 Ton Ice Tube Machine

Tube Ice Making Machine 40t  Per Day

TUBE ICE MACHINE

High reliability ,Customized,100% Ice Production,15+ Years Lifespan,Exported to 80+ Countries.

EXQUISITE CRAFTSMANSHIP

MAKES TOP-NOTCH ICE MACHINE,

· TECHNICAL PARAMETERS

* The technical data based on 30°Cambient temp.20°Cwater inlet temp

* The evaporating / condensing temp.:-15C/40°C(Air-coole) 38°C(Water cooled)

* Power supply: 3P/380V/50HZ(3P/220/60HZ,3P/380V/60HZ,3P/460V/60HZ Optional)

* Refrigerant: R404A(R22 R17 R507 is optional)

* Ice tube diameter: Φ22,Φ29,Φ35,Φ42 is optional

40t，50t，60t/24h

Model	IT40T-R2E	IT50T-R2E	IT60T-R2E
Ice output	40t/24hrs	50t/24hrs	60t/24hrs
Ice tube diameter	Φ35	Φ22/29/35	Φ29
Cooling capacity	300.1kw	401kw	525.3kw
Input power	119.4kw	95.4kw	86.2kw
Compressor input power	105.2kw	151.7kw	202.8kw
Ice cut reducer input power	1.1*2kw	1.5kw	1.5kw
Water pump input	1.85*2kw	3kw	3kw
Weight	7200KG	8400KG	9600KG
Unit size	2820*2100*2100mm	3500*2200*2360mm	3900*1810*2010mm

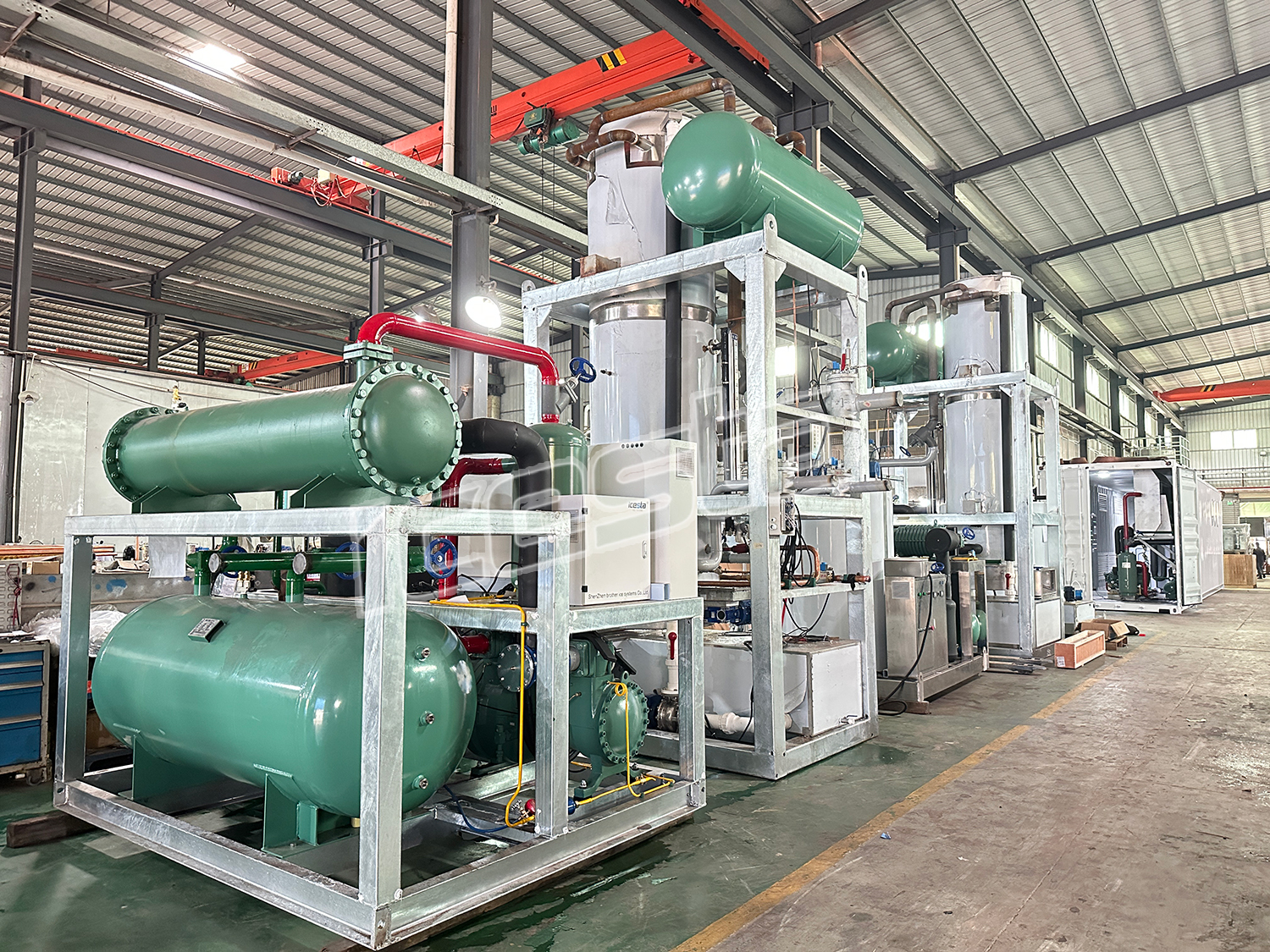

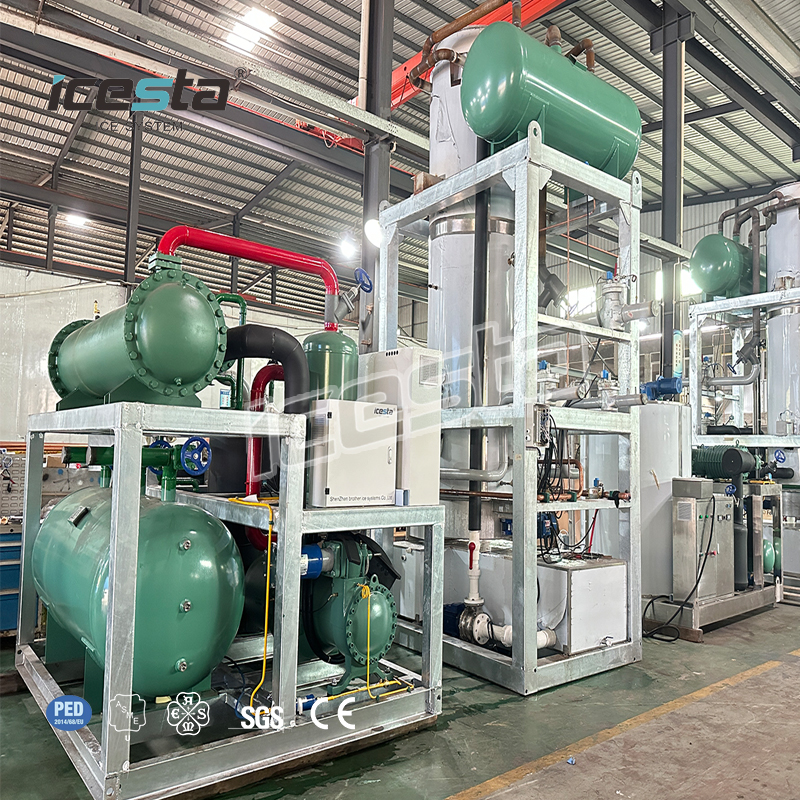

· PICTURE DISPLAY

Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful

· APPLICATION INDUSTRY

ICESTA is providing the world Excellent Tube ice solutions with high ice output, reliable performance and humanization design.

· DRAWING DISPLAY

The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.

· ADVANTAGE

Advantages of ICESTA tube ice plantinnovative design for generator

1.  Innovative manufacturing artwork has been adopted.The lce stripping surface is smooth as a mirror. That has tremendouslyincreased ice stripping efficiency and energy-efficiency ratio.

2.  The ice cutter can be easily dismantled and replaced as a whole.

3.  Compared with peers,ICESTA evaporator can form even water membrane more effectively.That makes more even and crystal ice tubes.

4.   The upper and lower freezing water reservoir is openly structured, which helps a lot withcleaning and disinfection.

5.   ICESTA ice plant adopts an optimized driving structural design, which ensures both simplestructure and high reliability.

6.   ICESTA customizes a reasonable design of ice plant suitable for convenient containertransportation for oversea clients.

7.  Deice just need 130-200s.



Patented h-m interactive intelligentcontrol system with touch-screen:

1. The working status of the ice system display alive in screen

2. Setting stop-time at will

3. All possible failure and trouble-shooting is programmed in

4. Local time could be set



· SHOW DETAILS

All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.

3D diagram display of tube ice

machine and office building layout plan

· AUXILIARY EQUIPMENT

Optimal industrial application: lce packing

Components:

1.Buffer Storage Bin (ranging from 50OKG to 2000KG)

2.Built-in delivery screw

3.Dual control system (Manual and foot pedal)

Foot pedal can start and stop at will, which is nearly a semi automatic packing machine.

PACKAGE UNIT OF TUBE ICE MAKING,

DELIVERING, PACKING,ICE BAGS CONVEYING.

Customer-Oriented design.Our consideration and,innovation reach everywhere

ENGINEERING CASE

30ton ice tube machine with ice dispenser

(semi-automatic ice packing machine.)/ Philippines

Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions
