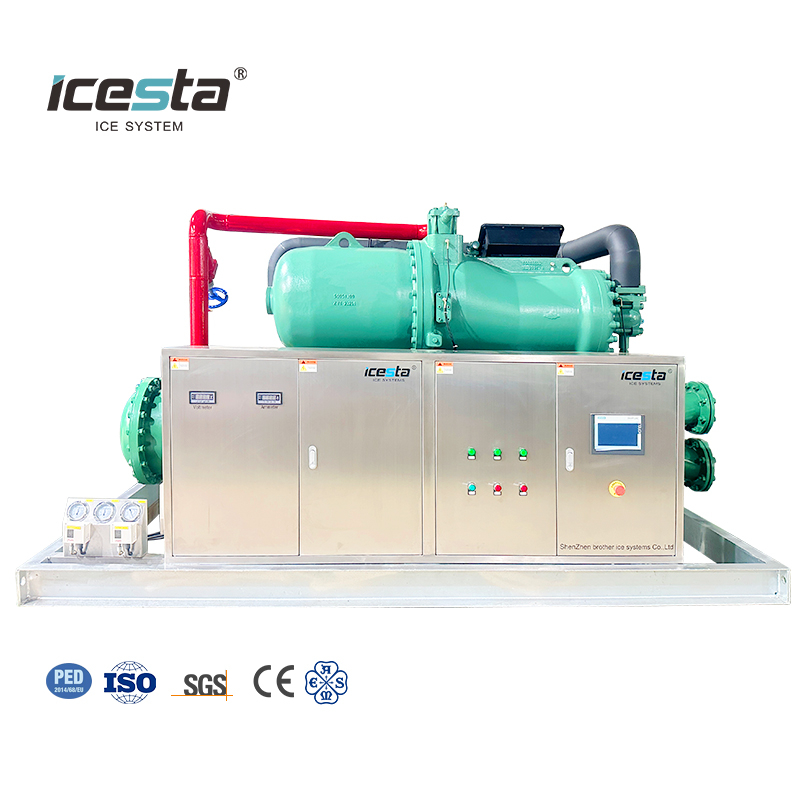

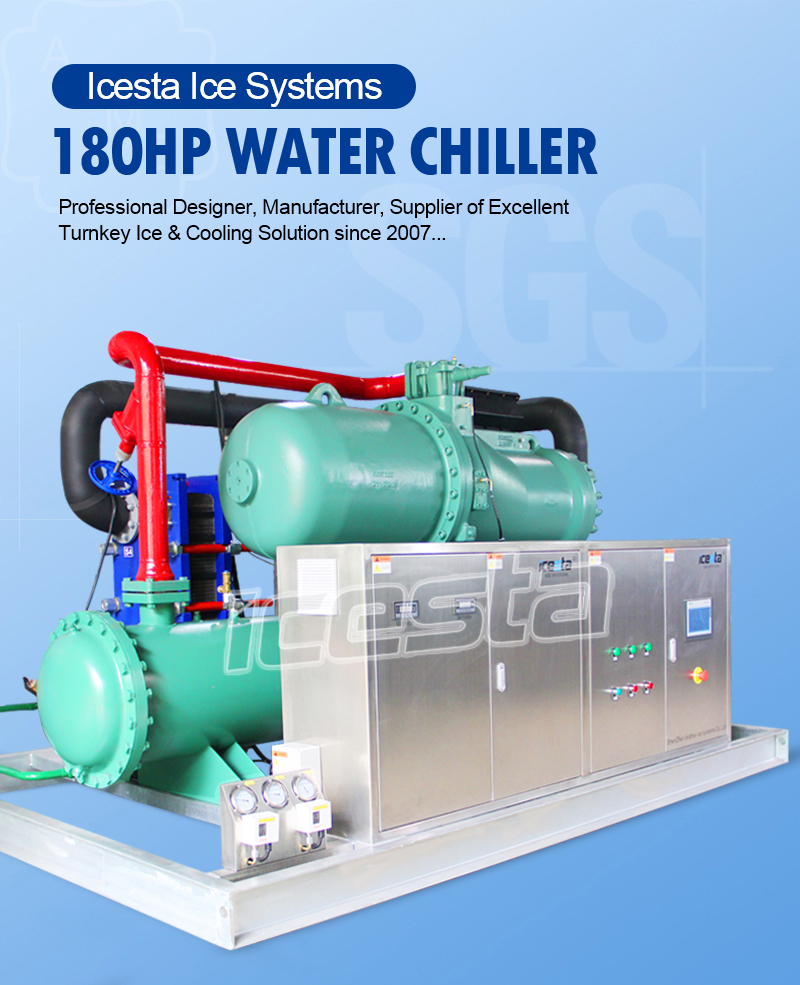

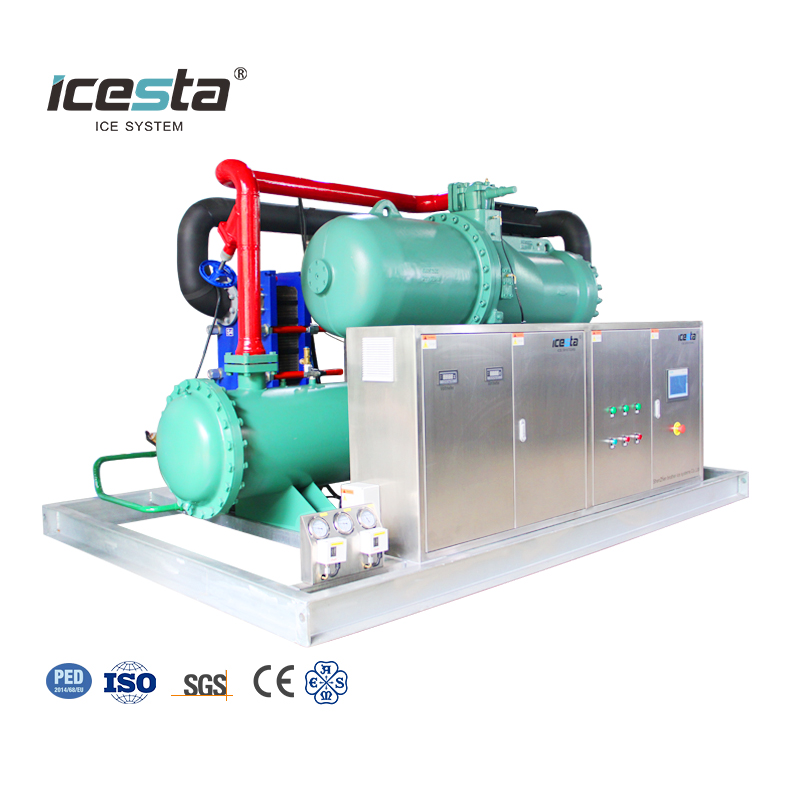

Icesta automatic High reliable Industrial Water Chiller with Long Service Life 60m³/h Water Cooled Screw Chiller for Fishery Hatchery / Food Processing Industry

Product Introduction

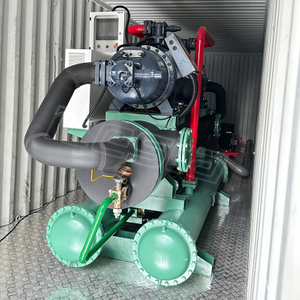

Water Cooled Screw Chiller is an efficient and reliable industrial chiller unit, with its main components featuring a screw compressor, hence referred to as water-cooled screw chiller. It utilizes a screw compressor and water-cooling heat dissipation method, providing excellent refrigeration capacity and stable performance. The chiller is equipped with a cooling tower or acooling water circulation system, which utilizes external cooling water for heat dissipation, meeting a wide range of industrial demands. With a wide temperature control range and refrigeration capacity, it can precisely control temperatures between 3°C to 50°C, making it suitable for industries such as plastic processing, chemical and others. Water Cooled Screw Chiller chillers are the ideal choice in the field of industrial cooling, ensuring stable operation of equipment and processes.

Application industry

Technical Parameters

*The technical data based on 45°C ambient temp. 0°C-45°C, water temperature: ≤30°C
*Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional
*Refrigerant: R404A(R22 R17 R507 is optional).

1	Compressr	Model	CSH9553-180-40P
		number	1
		Cooling capacity	383KW
		Power input	85.8KW
2	Condenser	Model	WN180
		capacity	454KW
		Water flow	90m³/h
		Pump power	15KW
		Type	Shell and tube type (Tube Sheets & Covers Stainlesss Steel & Titanium Tubes)
3	Evaporator	Model	GZ180B
		Capacity	375KW
		Solution flow	60m³/h
		Pump power	11KW
		Type	Shell and tube type (SS Shell & Titanium Tubes

UNITED, PRECISION, INTERNATIONALIZED & OUTSTANDING

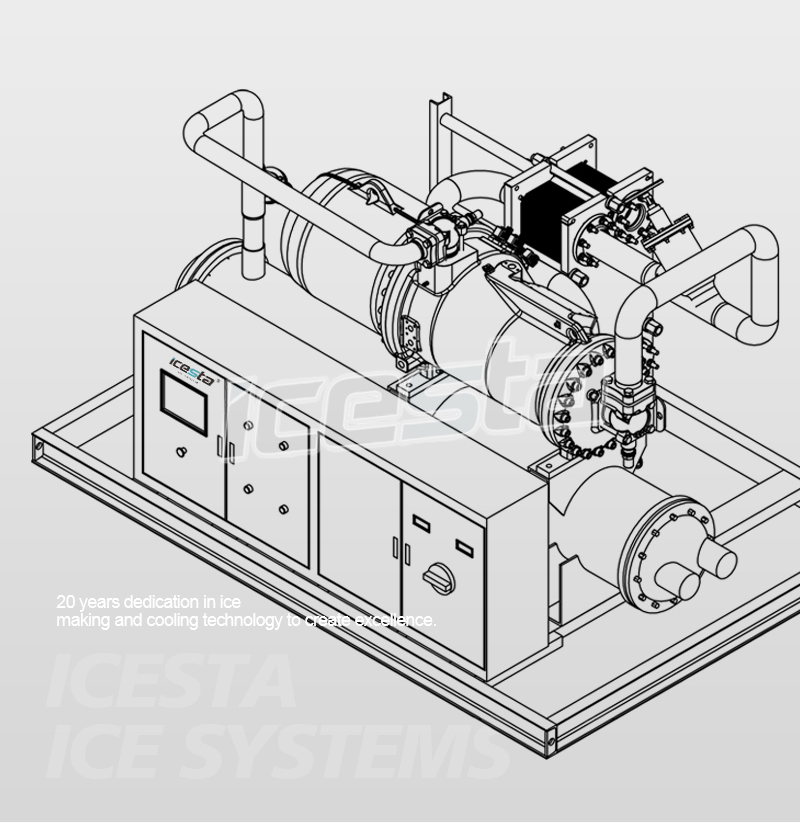

20 years dedication in ice making and cooling technology to create excellence

The lCESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.

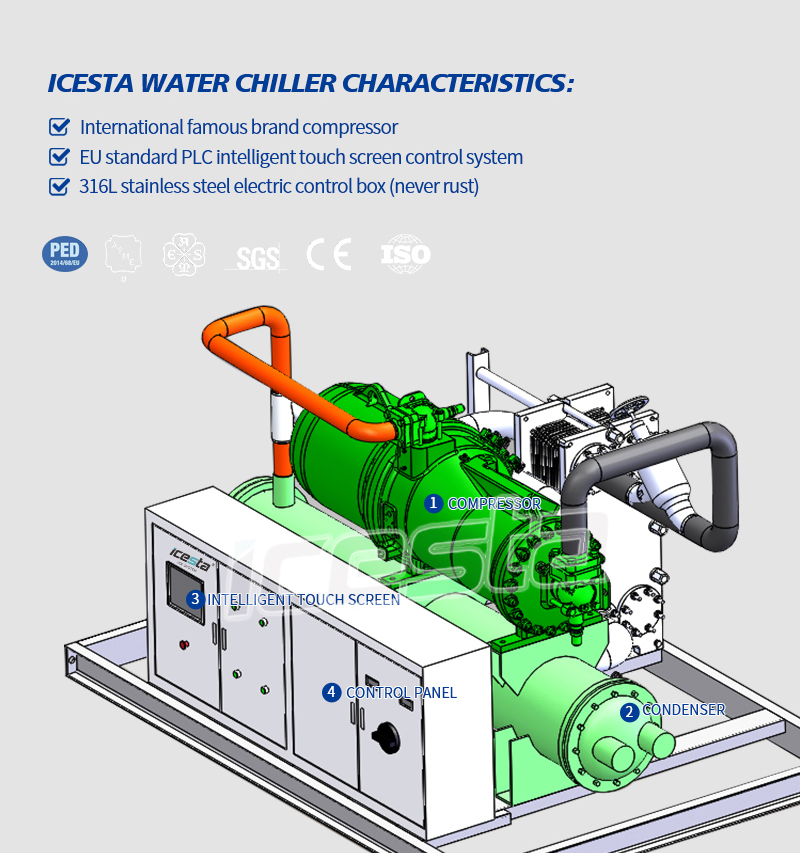

1.Semi-hermetic screw refrigeration compressor

The compressor adopts advanced bilateral asymmetric full arc and its envelope rotor profile, making the compressor highly efficient. The energy adjustment device in the compressor allows a single compressor to adjust the energy steplessly from 30% to 100%. The compressor can start with minimum load.



2.Intellectualized PLC controller with touch-screen

PLC intelligent programming controller can automatically start, stop and adjust energy according to the water chiller's outlet water temperature or remote signal, realizing fully automatic control of the operation process.At the same time, the water chiller is equipped with protection devices such as low suction pressure, high exhaust pressure, ultra-low temperature of refrigerant water, water cutoff, motor overload, motor overheating, power failure, ultra-high exhaust temperature, and low oil pressure difference.



3. The shell and tube condenser and evaporator of  the water chiller adopt high-efficiency heat exchange tubes, which are small in size, light in weight and high in heat exchange efficiency.



4. The entire water chiller runs smoothly, has small vibration, is safe and reliable.

Working principle

Relying on ICESTA's strong R&D technical force and 16+ years of industry experience, ICESTA has gained a good reputation and trust in the industry.

The refrigerant flows in the dry evaporator tube, absorbs the heat of the refrigerant outside the tube, and continuously evaporates. When it reaches the evaporator outlet, it all turns into gas and is sucked into the compressor through the return pipe. The compressed gas enters the condenser and is condensed into a saturated liquid with a certain degree of subcooling. The heat released is taken away by the cooling water. The supercooled liquid then passes through a drying filter to remove impurities and moisture. After being throttled by a throttling device, it becomes a low-temperature and low-pressure liquid and enters the evaporator for recirculation.

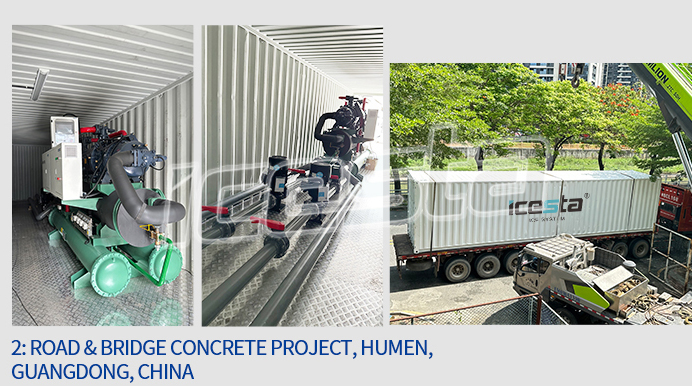

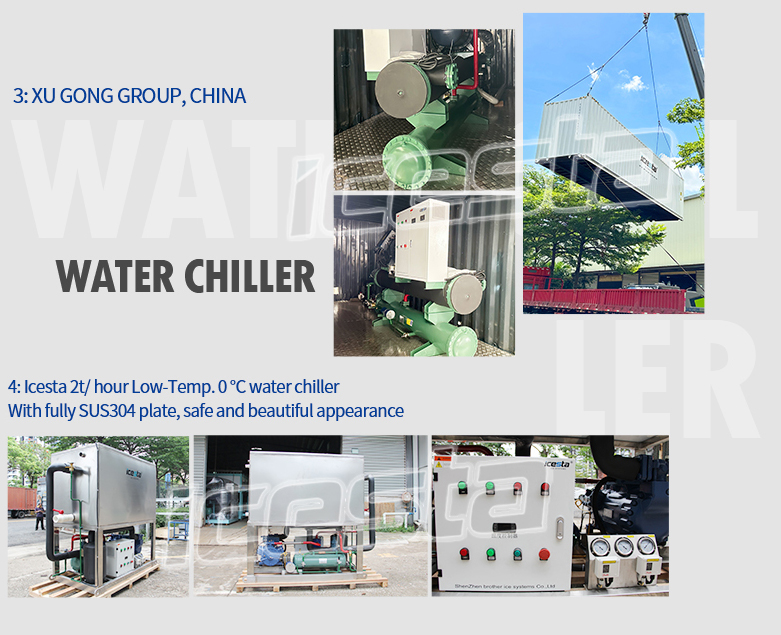

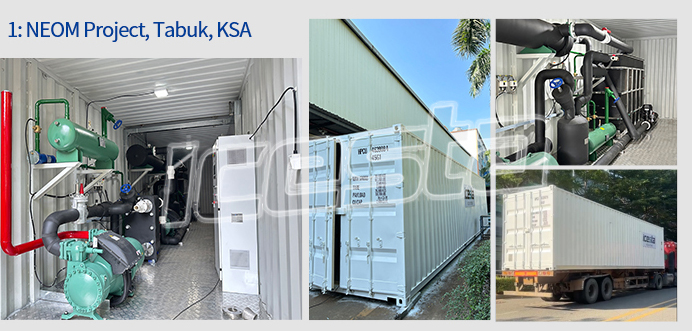

Engineering case

Since 2007,ICESTA products have been exported to more than 80 countries around the world, you will enjoy the services in many countries from local distributors.

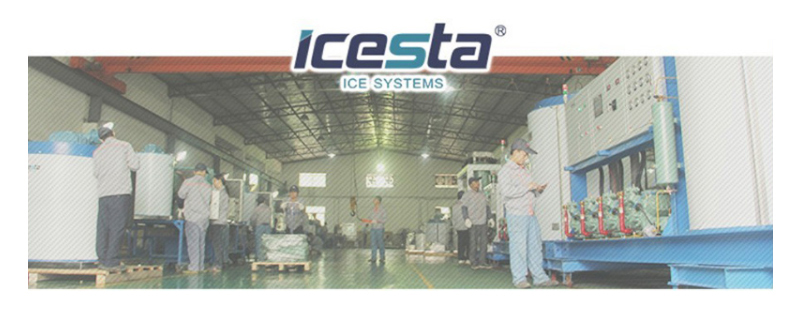

About ICESTA

ICESTA

20 years focus on innovative solution in ice making and cooling technology

Shenzhen Brother lce System Co, Ltd. (hereinafter referred to as lCESTA), as a well-known ice machine manufacturer and industry leader and pioneer in China, has been committed to providing excellent "Made inChina"" since its establishment in 2007. After more than ten years of advancement, the product line has been continuously expanded, and the plant has expanded year by year. lt has a R&D and manufacturing base of 20000 square meters in Dongguan City and Shenzhen City, as well as a production and technical team at home and abroad with more than 150 people, The output value reached 120 million yuan: the company established 2 branches: SHENZHEN BROTHER COLD CHAIN TECHNOLOGY CO..LTD, LIAONING BROTHER SPORTS TECHNOLOGY CO.,LTD;

Experiences & History:

* Dscades of Team focus on innovative solution in lce & Cooling technology.

* Decadal Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects

Industry status& Reputation

* Top lce Machine Brand in China.

* 20000 m³ Factory

* ISO 9001,CE, PED, ASME(US) Certificates etc

Technology & Management capability:

* 80+ patents Certificates

* High Technology enterprise Certificate

Services & Global Net

* Export to 80+ countries

* Local service in 50+ oountries with networks all over the world.

* 1-2 years warranty covers each component

FAQ

FAQ (Frequently Asked Questions)

1. Questions before quotation
A. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What’s the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?

2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars 100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.

3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance

4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
