PRODUCT INTRODUCTION

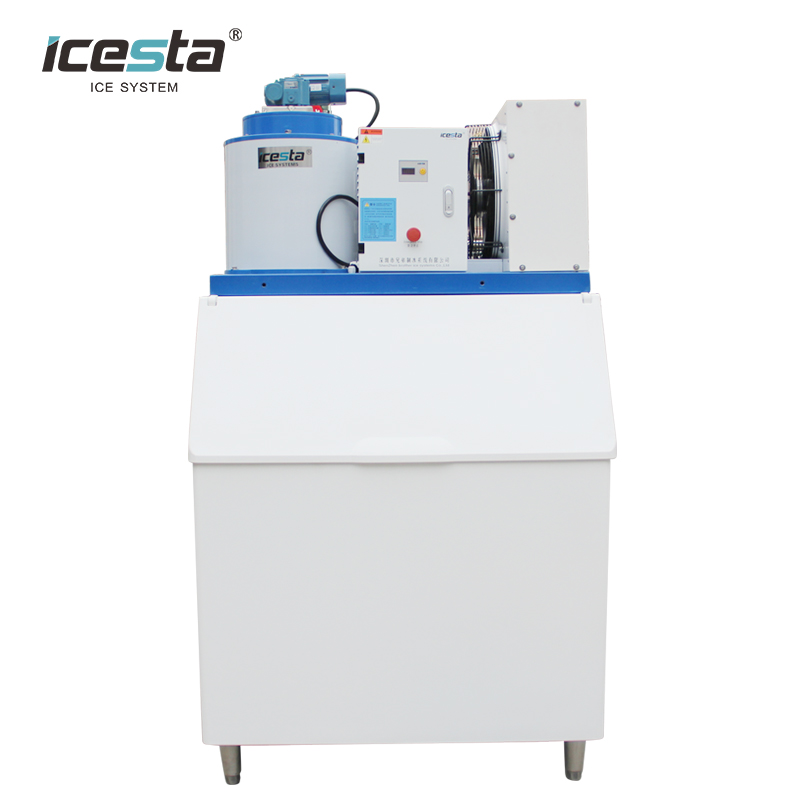

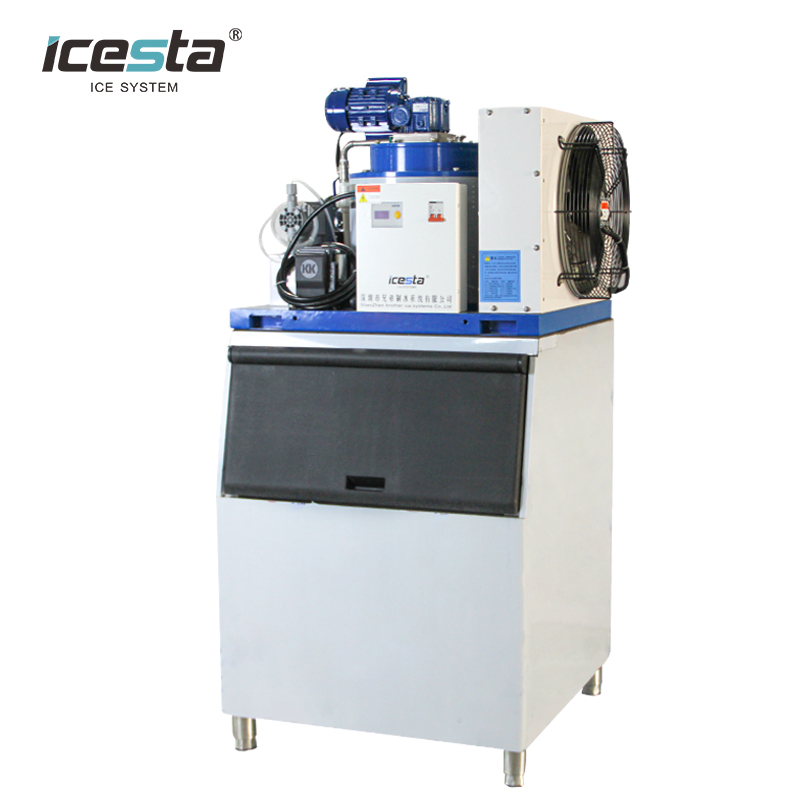

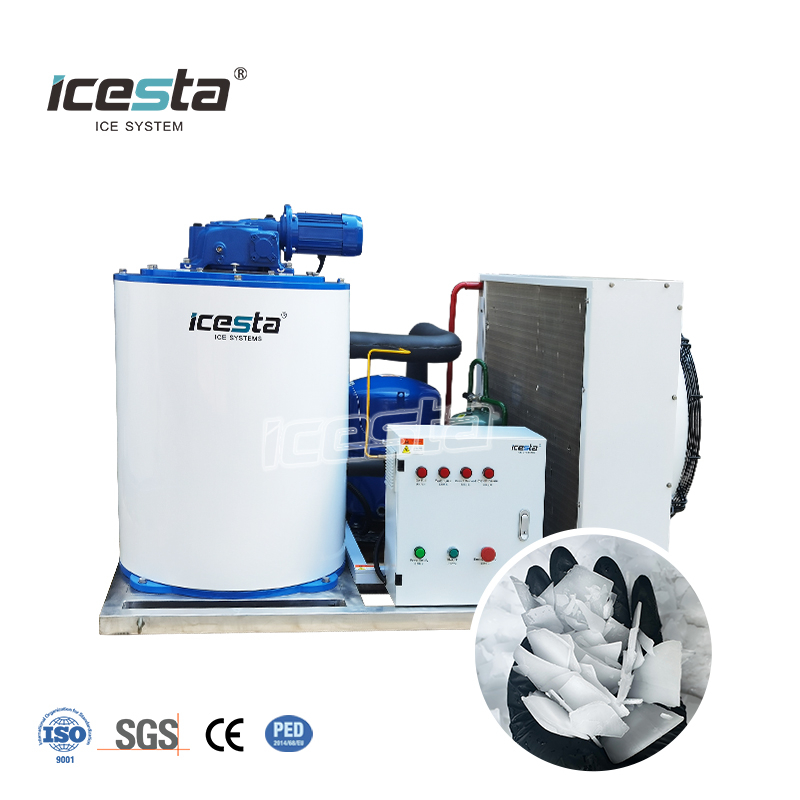

Stainless Steel Flake ice machine, whose freezing surface (in contact with water) of ice making evaporator is made of Stainless Steel Material (SS316L or SS304), is characteristic of high anti-corrosion and anti-rust performance. This feature makes ICESTA ice plant a superb companion for food processing industry which requires high level of hygiene and deep-sea fishing boat etc where only seawater is available for ice making.
APPLICATION INDUSTRY
More and more Coling or temp.Re duction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.
TECHNICAL PARAMETERS
*The technical data based on 25°C ambient temp.20°C water inlet temp
* Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional

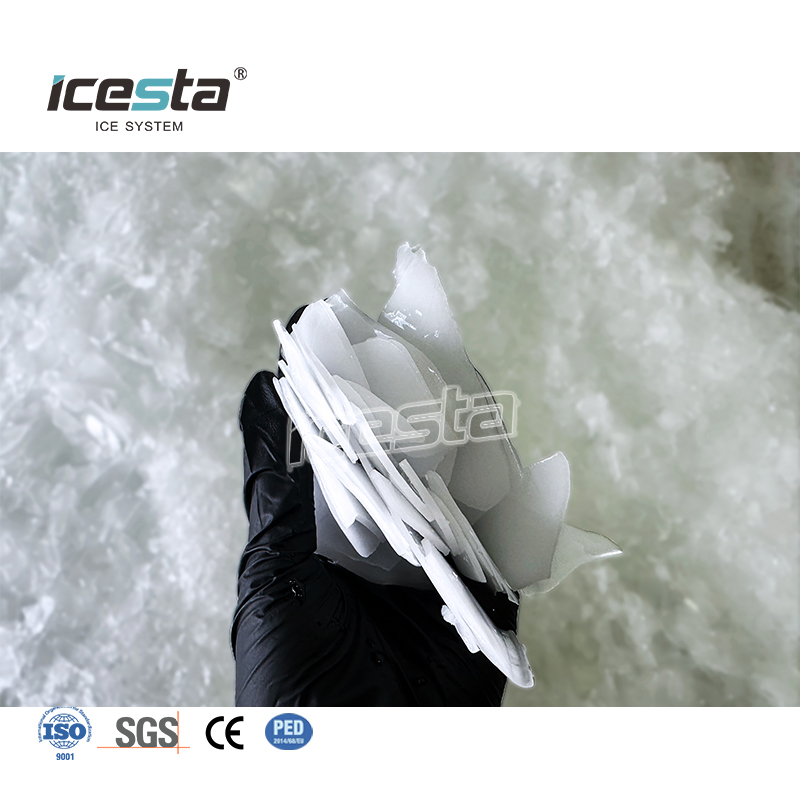

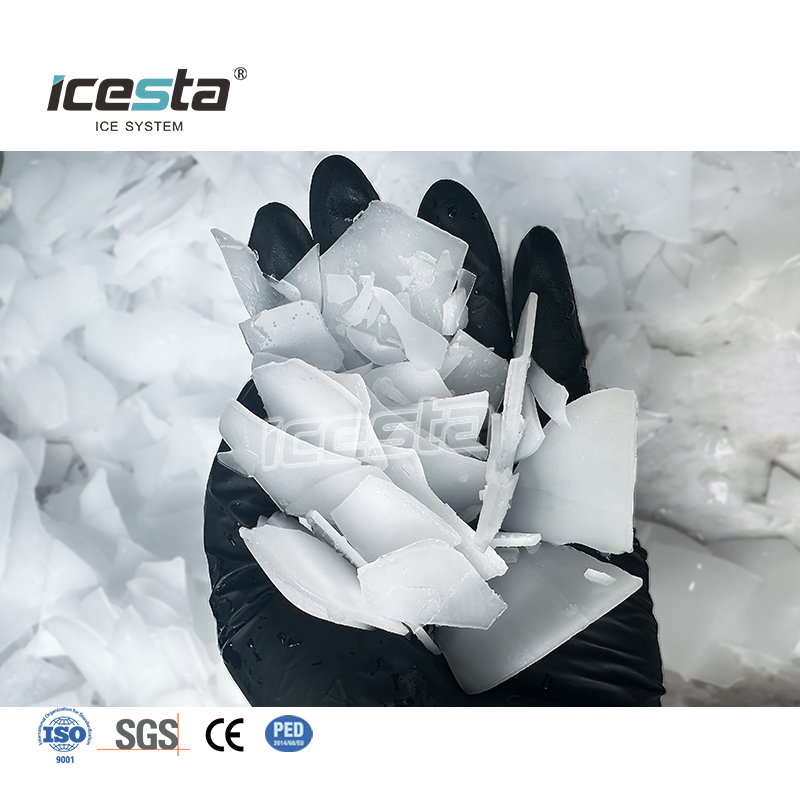

* The ice thickness：1.6-2.3mm
* Refrigerant: R404A(R22 R17 R507 is optional)
| Model | IF0.3T-R4A | IF0.5T-R4AN | IF1T-R4AN |
| Ice production | 0.3t/24hrs | 0.5t/24hrs | 1t/24hrs |
| Cooling capacity | 1.89kw | 3.275kw | 5.677kw |
Evaporation temperature | -20°C | -20°C | -20°C |
Condensing temperature | 40°C | 40°C | 40°C |
| Input total power | 2.042kw | 2.378kw | 4.193kw |
| Compressor power | 1.69kw | 2.006kw | 3.431kw |
| Pump power | 0.002kw | 0.002kw | 0.002kw |
| Reducer power | 0.16kw | 0.18kw | 0.18kw |
| Unit size | 800*700*600mm | 1050*700*790mm | 1050*700*800mm |
| weight | 120KG | 140KG | 170KG |
SHOW DETAILS
ADVANTAGES / SPECIAL DESIGN FOR ice flaker on board use
Material of evaporator:
External surface: Glass fiber steel (never getting rust)
Inner surface : 316L Stainless steel
(High reliability for anti-corrosion even feeding seawater for ice making)
Supporting base: 304 Stainless steel
Top/bottom cover of ice flake evaporator : 304 Stainless steel
· Material of Stainless Steel ice flake machine
All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.
DRAWING DISPLAY
The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.
5T flake ice machine
3D drawings
ADVANTAGE
Advantages of ICESTA flake ice machine
1.Rigorous pick-up of raw material. Not every kind of Stainless Steel is the same in terms quality on the market. When we choose stainless steel, we use the material of high quality with Qualified Material Certificate only.
2.Compared to Carbon Steel, stainless steel evaporator and top/bottom covers requires a high criterion in the processes of welding, machining and Annealing. Coarse machining may make the machine prone to deformation and short life time. ICESTA fine and meticulous craftsmanship and innovative design makes our stainless steel evaporator endure.
3.Diversified choice. ICESTA provides customer oriented designs in accordance with machining artwork, working conditions and water quality, in an attempt to offer performance stability and ice use satisfaction as well as cost effectiveness.
Intellectualized PLC controller with touch-screen
· All failure record & instant solution available
· Stop-time setting at will.
· different languages version
Elaborate details design gives all-sided convenience
· Prominent Heat treatment to avoid any SRINKAG
· TOP welding testing technics with X-RAY——Never leak
· Sufficient ice output
PICTURE DISPLAY
Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful
Engineering case
30T flake Ice Plant & 50T Auto Storage,
Humpty Doo Baramundi Australia
Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions
Favorable comment from ICESTA customers
Product hot sale
ICESTA
20 years dedication in ice making technology to create excellence.
Shenzhen Brother Ice System Co., Ltd. ( ICESTA Brand), a well-known ice machine manufacturer and industry leader and pioneer in China.The product covers flake ice /Block ice machine, Tube ice /slurry ice/plate ice/cube ice machines, water
chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc
Experiences & History:
20-Years Team focus on innovative solution in Ice & Cooling technology.
18-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.
Industry status& Reputation:
* TOP 3 of China industrial ice machine Brand with strong capability of R&D
* 20000㎡ Factory
* ISO 9001 , CE, PED, ASME (U.S ) Certificates etc
Technology & Management capability:
* 80+ patents Certificates
* High Technology enterprise Certificate
Services & Global Net:
* Export to 80+ countries
* Local service in 50+ countries with networks all over the world.
* 1-2 years warranty covers each component.
Engineering case
FAQ
FAQ (Frequently Asked Questions)
1. Questions before quotation
A. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What's the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?
2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars
100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.
3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance
4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
