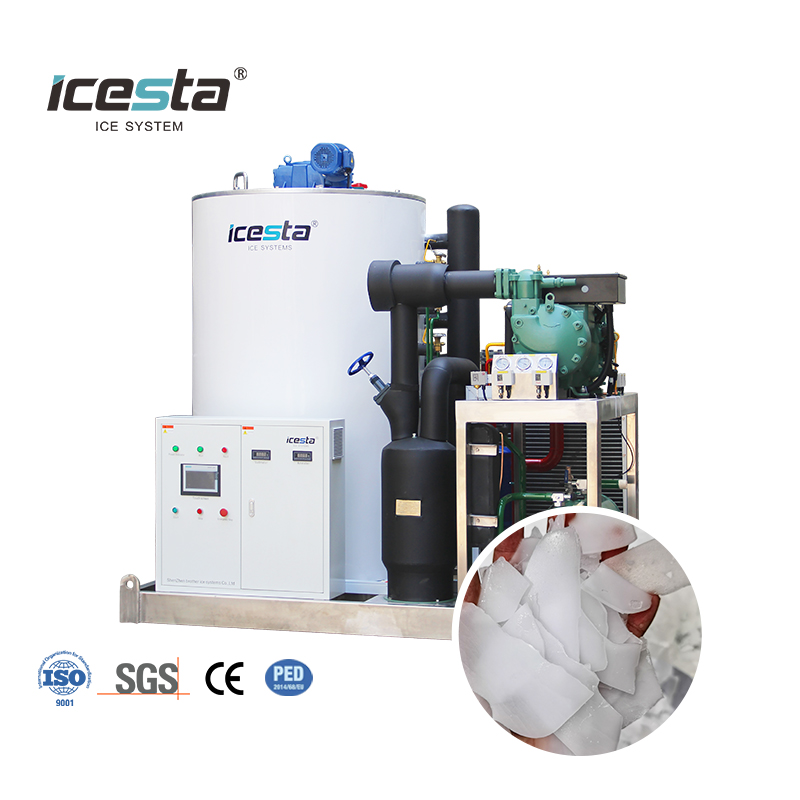

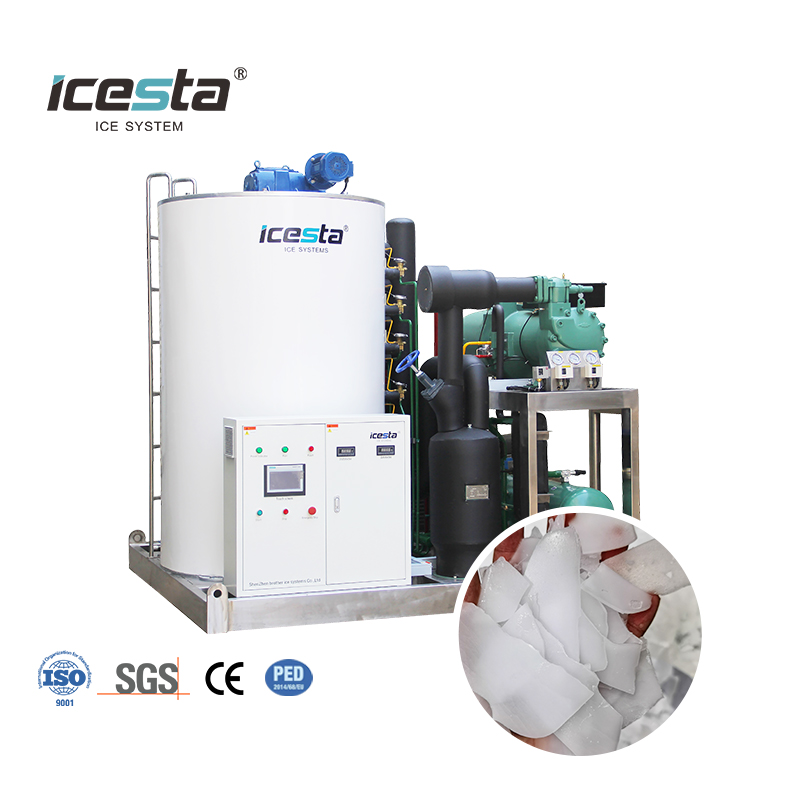

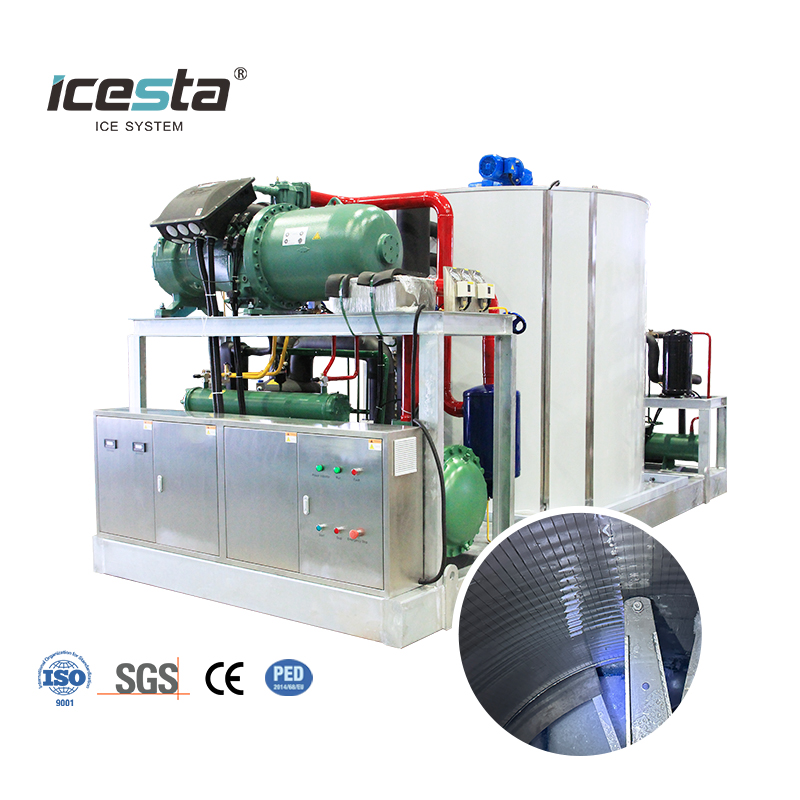

ICESTA marine ice makers Salt Water Flake Ice Machines 1-5t On Boat $5500 - $22000

SEAWATER FLAKE

ICE MACHINE(SHIPBOARD)

316L /304 Stainless steel ice flaker Drum(evaporator),High Anti-corrosive Standard.

· PRODUCT INTRODUCTION

The ICESTA seawater type flake ice machines is always used on fishing boat, for its special design and completely stainless-steel-material used to prevent the machine from corrosion, and the instability due to the unfavorable condition and ship swaying in the sea.

On the fishing, the machines make ice from seawater directly, and also make the heat exchange via the condenser. We use sea water condenser, special design for sea shipping usuage. The low-temperature seawater as well as its salinity, makes the ice at an excellent ice degree, to give better fresh keeping for the fish.

· APPLICATION INDUSTRY

More and more Coling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.

· TECHNICAL PARAMETERS

*The technical data based on 25°C ambient temp.20°C water inlet temp

* Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional

* The ice thickness：1.6-2.3mm

* Refrigerant: R404A(R22 R17 R507 is optional)

model	IFS1T-R4W	IFS2T-R4W	IFS3T-R4W	IFS5T-R4W
Ice production	1t/24hrs	2t/24hrs	3t/24hrs	5t/24hrs
Cooling capacity	7.4kw	13.7kw	18kw	32.5kw
Evaporation temperatur	-28°C	-28°C	-28°C	-20°C
Condensing temperature	36°C	36°C	36°C	36°C
Input total power	5.68kw	9.2kw	12.09kw	20.39kw
Compressor power	4.67kw	7.99kw	10.1kw	18.4kw
Reducer power	0.37kw	0.37kw	0.37kw	0.37kw
Ice bucket pump input power	0.09kw	0.09kw	0.12kw	0.12kw
Unit size	1400*1000*980mm	1500*1200*1420mm	1500*1200*1500mm	1800*1500*1680mm
weight	180KG	530KG	645KG	920KG

· SHOW DETAILS

ADVANTAGES / SPECIAL DESIGN FOR ice flaker on board use

Material of evaporator:

External surface:  Glass fiber steel (never getting rust)

Inner surface :   316L Stainless steel

(High reliability for anti-corrosion even feeding seawater for ice making)

Supporting base: 304 Stainless steel

Top/bottom cover of ice flake evaporator :    304 Stainless steel

· Special ice scraping system for seawater ice flaker drum

 (To deal with the soft ice )

All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.

·Advantages  & Customer

-oriented Design

Marine Flake Ice Machine

1.Deep Oil Sump of BOCK/BITZER Compressor,to avoid oil leakage when boat is swaying,

2. Condenser are made of copper-nickel Alloy material,  anti-corrosive inner lining.

3. IP55 rated control box is equipped with a special structure and vents design. Failure & Buzz indicator has a warning sound while flashing rapidly

4. Better water proof----Control box and Pressure Gauges placed on a higher position ,cables go into the box from bottom.

5. Metal level switches to eliminate wrong warnings during bumpy sailing.

6. Gearbox cushion is in place to prevent contamination onto the cover of the ice maker

7. Thicker protective layer to prevent corrosion onto the gearbox

Marine Flake Ice Machine With A Protective Enclosure

For the vessels that do not contain a designated ice making area, the flake ice machine shall be placed in open air. We have specially designed flake ice machine with a protective enclosure as shown above：

· ADVANTAGE

Advantages of ICESTA flake ice machine

1.Rigorous pick-up of raw material. Not every kind of Stainless Steel is the same in terms quality on the market. When we choose stainless steel, we use the material of high quality with Qualified Material Certificate only.

2.Compared to Carbon Steel, stainless steel evaporator and top/bottom covers requires a high criterion in the processes of welding, machining and Annealing. Coarse machining may make the machine prone to deformation and short life time. ICESTA fine and meticulous craftsmanship and innovative design makes our stainless steel evaporator endure.



Intellectualized PLC controller with touch-screen

· All failure record & instant solution available

· Stop-time setting at will

· different languages version

Elaborate details design gives all-sided convenience

· Human-machine interactive intelligent touch screen control system

· Sufficient ice output



·PICTURE DISPLAY

Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful

ENGINEERING CASE

30T flake Ice Plant & 50T Auto Storage,

Humpty Doo Baramundi Australia

Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions
