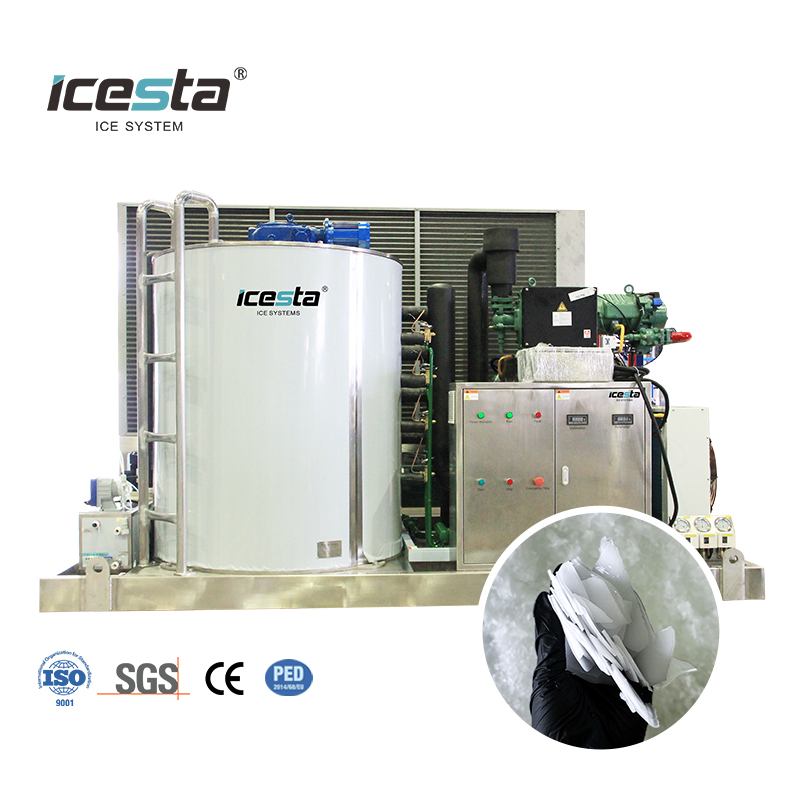

ICESTA 15-30 Ton Stainless Steel Industrial Flake Ice Machine

· PRODUCT INTRODUCTION

Stainless steel flake ice machines, whose ice making evaporator's freezing surface (in contact with water) is made of stainless steel (SS316L or SS304), are characterized by high corrosion and rust resistance properties. This feature makes ICESTA ice machines the perfect companion for the food processing industry, where high levels of hygiene are required, and for deep-sea fishing vessels, where only seawater can be used for ice production, etc.

· APPLICATION INDUSTRY

More and more Cooling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.

· TECHNICAL PARAMETERS

*The technical data based on 25°C ambient temp.20°C water inlet temp

* Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional

* The ice thickness：1.6-2.3mm

* Refrigerant: R404A(R22 R17 R507 is optional)

15t，20t，25t，30t/24h

Model	IFF/A15T-R4A	IFF/A20T-R4A	IFF/A25T-R4A	IFF/A30T-R4A
Ice production	15t/24h	20t/24hrs	25t/24hrs	30t/24hrs
Cooling capacity	94.4kw	143.1kw	160kw	188.8kw
Evaporation temperature	-25°C	-25°C	-25°C	-25°C
Condensing temperature	40°C	40°C	40°C	40°C
Input total power	64.77kw	96.96kw	110.6kw	129.8kw
Compressor power	55.4kw	83.1kw	93.6kw	110.8kw
Pump power	0.75kw	0.75kw	1.5kw	1.5kw
Reducer power	0.37kw	0.75kw	1.1kw	1.1kw
Condenser fan power	8.25kw	12.36kw	14.4kw	16.48kw
Unit size	3100*1950*2410mm	4000*2100*2200mm	4600*2100*2450mm	5600*2100*2450mm
Weight	3480KG	4450KG	5200kg	6300KG

· SHOW DETAILS

ADVANTAGES / SPECIAL DESIGN FOR ice flaker on board use

Material of evaporator:

External surface:  Glass fiber steel (never getting rust)

Inner surface :   316L Stainless steel

(High reliability for anti-corrosion even feeding seawater for ice making)

Supporting base: 304 Stainless steel

Top/bottom cover of ice flake evaporator :    304 Stainless steel

· Material of  Stainless Steel ice flake machine

All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.

· DRAWING DISPLAY

The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.

3D drawings

· ADVANTAGE

Advantages of ICESTA flake ice machine

1.Rigorous pick-up of raw material. Not every kind of Stainless Steel is the same in terms quality on the market. When we choose stainless steel, we use the material of high quality with Qualified Material Certificate only.

2.Compared to Carbon Steel, stainless steel evaporator and top/bottom covers requires a high criterion in the processes of welding, machining and Annealing. Coarse machining may make the machine prone to deformation and short life time. ICESTA fine and meticulous craftsmanship and innovative design makes our stainless steel evaporator endure.

3.Diversified choice. ICESTA provides customer oriented designs in accordance with machining artwork, working conditions and water quality, in an attempt to offer performance stability and ice use satisfaction as well as cost effectiveness.

Intellectualized PLC controller with touch-screen

· All failure record & instant solution available

· Stop-time setting at will.

· different languages version

Elaborate details design gives all-sided convenience

· Prominent Heat treatment to avoid any SRINKAG

· TOP welding testing technics with X-RAY——Never leak

· Sufficient ice output

PICTURE DISPLAY

Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful

Engineering case

30T flake Ice Plant & 50T Auto Storage,

Humpty Doo Baramundi Australia

Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions

Favorable comment from ICESTA customers

Product hot sale

ICESTA

20 years dedication in ice making technology to create excellence.

Shenzhen Brother Ice System Co., Ltd. ( ICESTA Brand), a well-known ice machine manufacturer and industry leader and pioneer in China.The product covers flake ice /Block ice machine, Tube ice /slurry ice/plate ice/cube ice machines, water
chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc

Experiences & History:
20-Years Team focus on innovative solution in Ice & Cooling technology.
18-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.

Industry status& Reputation:
* TOP 3 of China industrial ice machine Brand with strong capability of R&D
* 20000㎡ Factory
* ISO 9001 , CE, PED, ASME (U.S ) Certificates etc

Technology & Management capability:
* 80+ patents Certificates
* High Technology enterprise Certificate

Services & Global Net:
* Export to 80+ countries
* Local service in 50+ countries with networks all over the world.
* 1-2 years warranty covers each component.

Engineering case

FAQ
FAQ (Frequently Asked Questions)
1. Questions before quotation
A. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What's the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?

2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars
100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.

3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance

4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
