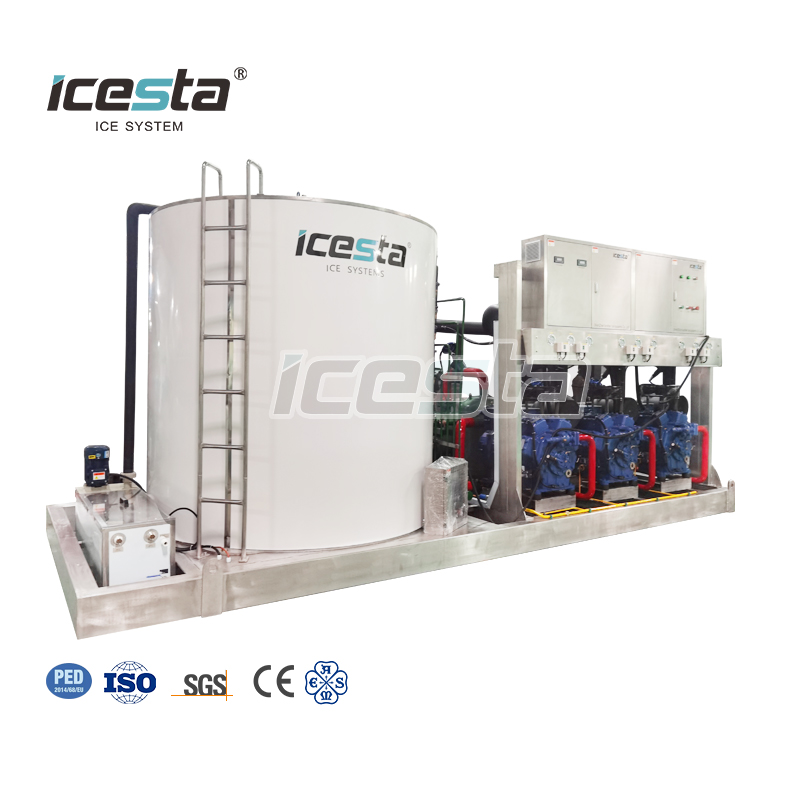

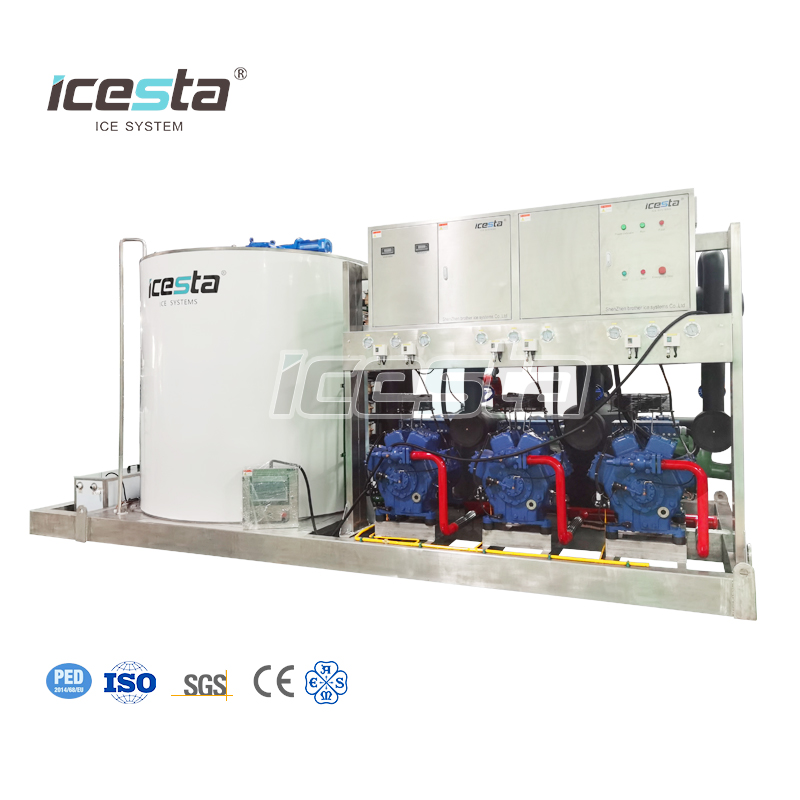

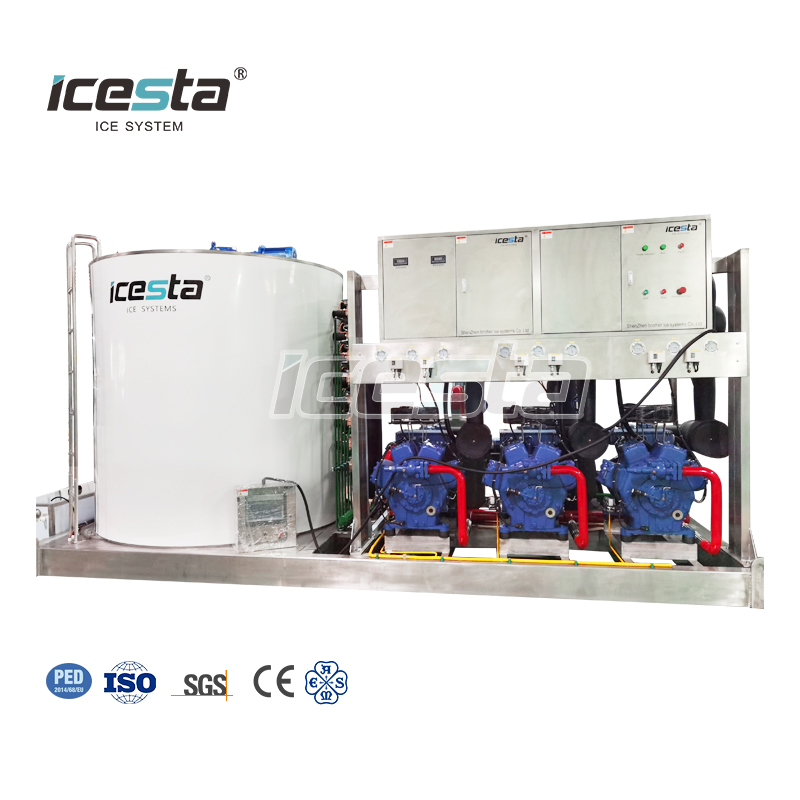

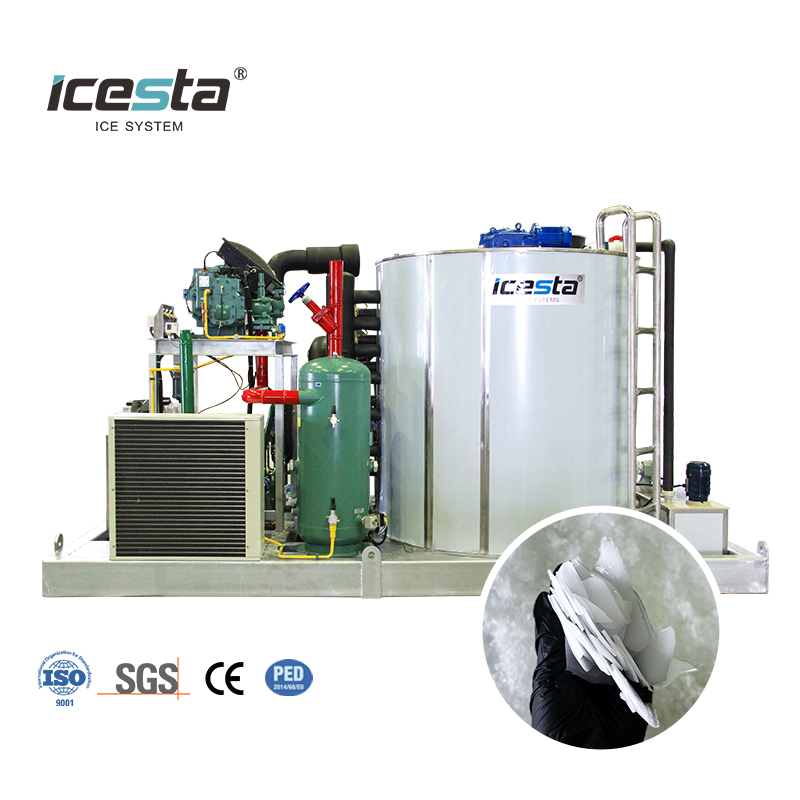

Stainless steel industrial flake ice machine ICESTA Customized energy-saving High Productivity Long Service Life 15 20 25 30 Ton $47000-$78000

· PRODUCT INTRODUCTION

Stainless steel flake ice machines, whose ice making evaporator's freezing surface (in contact with water) is made of stainless steel (SS316L or SS304), are characterized by high corrosion and rust resistance properties. This feature makes ICESTA ice machines the perfect companion for the food processing industry, where high levels of hygiene are required, and for deep-sea fishing vessels, where only seawater can be used for ice production, etc.

· APPLICATION INDUSTRY

More and more Cooling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.

· TECHNICAL PARAMETERS

*The technical data based on 25°C ambient temp.20°C water inlet temp

* Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional

* The ice thickness：1.6-2.3mm

* Refrigerant: R404A(R22 R17 R507 is optional)

15t，20t，25t，30t/24h

Model	IFF/A15T-R4A	IFF/A20T-R4A	IFF/A25T-R4A	IFF/A30T-R4A
Ice production	15t/24h	20t/24hrs	25t/24hrs	30t/24hrs
Cooling capacity	94.4kw	143.1kw	160kw	188.8kw
Evaporation temperature	-25°C	-25°C	-25°C	-25°C
Condensing temperature	40°C	40°C	40°C	40°C
Input total power	64.77kw	96.96kw	110.6kw	129.8kw
Compressor power	55.4kw	83.1kw	93.6kw	110.8kw
Pump power	0.75kw	0.75kw	1.5kw	1.5kw
Reducer power	0.37kw	0.75kw	1.1kw	1.1kw
Condenser fan power	8.25kw	12.36kw	14.4kw	16.48kw
Unit size	3100*1950*2410mm	4000*2100*2200mm	4600*2100*2450mm	5600*2100*2450mm
Weight	3480KG	4450KG	5200kg	6300KG

· SHOW DETAILS

ADVANTAGES / SPECIAL DESIGN FOR ice flaker on board use

Material of evaporator:

External surface:  Glass fiber steel (never getting rust)

Inner surface :   316L Stainless steel

(High reliability for anti-corrosion even feeding seawater for ice making)

Supporting base: 304 Stainless steel

Top/bottom cover of ice flake evaporator :    304 Stainless steel

· Material of  Stainless Steel ice flake machine

All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.

· DRAWING DISPLAY

The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.

3D drawings

· ADVANTAGE

Advantages of ICESTA flake ice machine

1.Rigorous pick-up of raw material. Not every kind of Stainless Steel is the same in terms quality on the market. When we choose stainless steel, we use the material of high quality with Qualified Material Certificate only.

2.Compared to Carbon Steel, stainless steel evaporator and top/bottom covers requires a high criterion in the processes of welding, machining and Annealing. Coarse machining may make the machine prone to deformation and short life time. ICESTA fine and meticulous craftsmanship and innovative design makes our stainless steel evaporator endure.

3.Diversified choice. ICESTA provides customer oriented designs in accordance with machining artwork, working conditions and water quality, in an attempt to offer performance stability and ice use satisfaction as well as cost effectiveness.

Intellectualized PLC controller with touch-screen

· All failure record & instant solution available

· Stop-time setting at will.

· different languages version

Elaborate details design gives all-sided convenience

· Prominent Heat treatment to avoid any SRINKAG

· TOP welding testing technics with X-RAY——Never leak

· Sufficient ice output

PICTURE DISPLAY

Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful

Engineering case

30T flake Ice Plant & 50T Auto Storage,

Humpty Doo Baramundi Australia

Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions
